800T-B6D2 - Allen-Bradley - Extended Head Push Button

800T-B6D2 - Allen-Bradley Extended Head Push Button

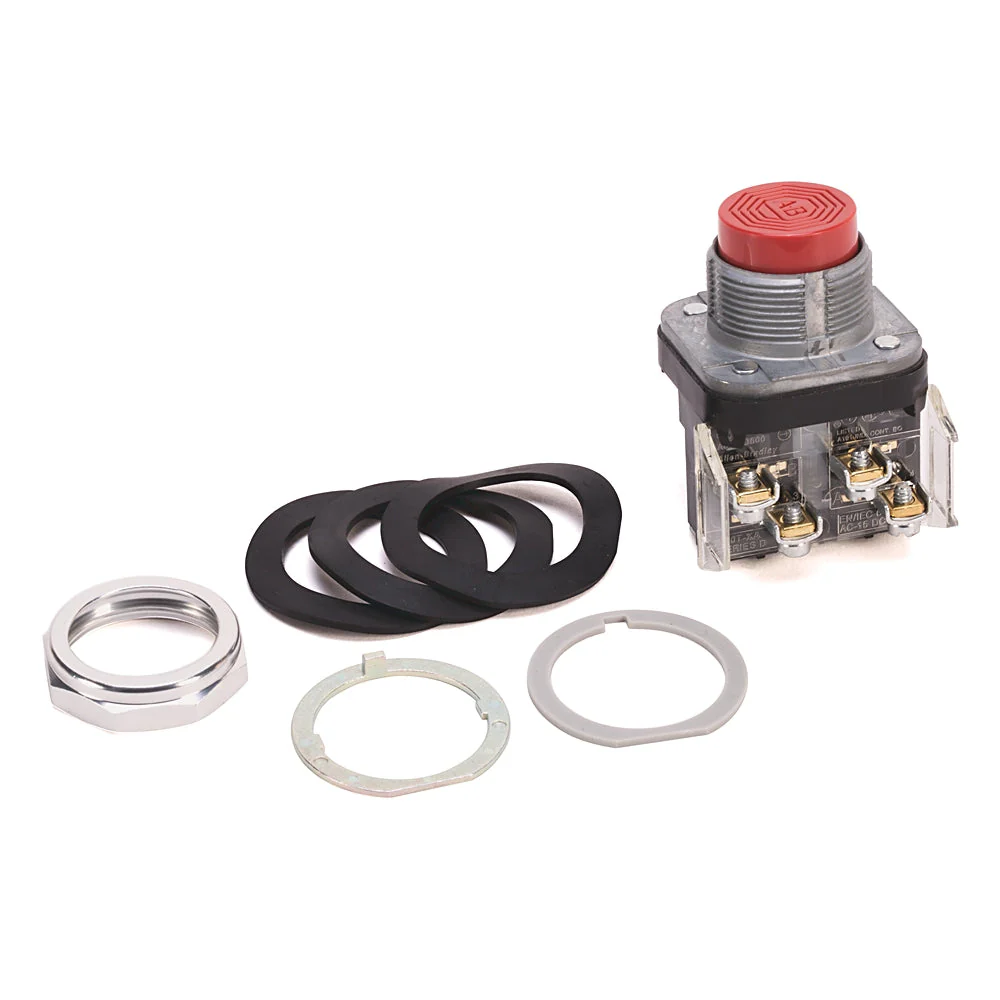

Push Button, Extended Head, 30 mm, Red, Momentary, NEMA 4/13, 1 Normally Closed, Contact Blocks
Ruggedly attractive and boldly functional, the Allen-Bradley Bulletin 800T line of push buttons are designed and built to perform in demanding industrial environments. Catalog item 800T-B6D2 from Rockwell Automation is a red, 30 mm momentary push button. It has an extended-head push button. And it does not have guards on terminals. For full product details, please see the sections below. Allen-Bradley is a trademark of Rockwell Automation, Inc.

• Manufacturer: Allen-Bradley

Specifications

• Cat. No.: 800T-B6D2
• Alternate Part No.: 800TB6D2
• UPC: 781180613487
• Product Type: Non-Illuminated Push Button Switch
• Mounting Hole: 30.5 MM
• Material: Round Metal
• Enclosure: NEMA 4 13
• Color: Red Lens
• Size: 30 MM
• Actuator: Standard Extended Head
• Contact Configuration: 1NC
• Voltage Rating: 600 VAC/VDC
• Wire Size: 18 - 14 AWG
• Dimension: 1-43/64 IN Length X 1-43/64 IN Width X 1-7/16 IN Height
• Operating Cycles: 10000000 Minimum
• Temperature Rating: -40 To 131 DEG F
• Authentic Allen Bradley Product
