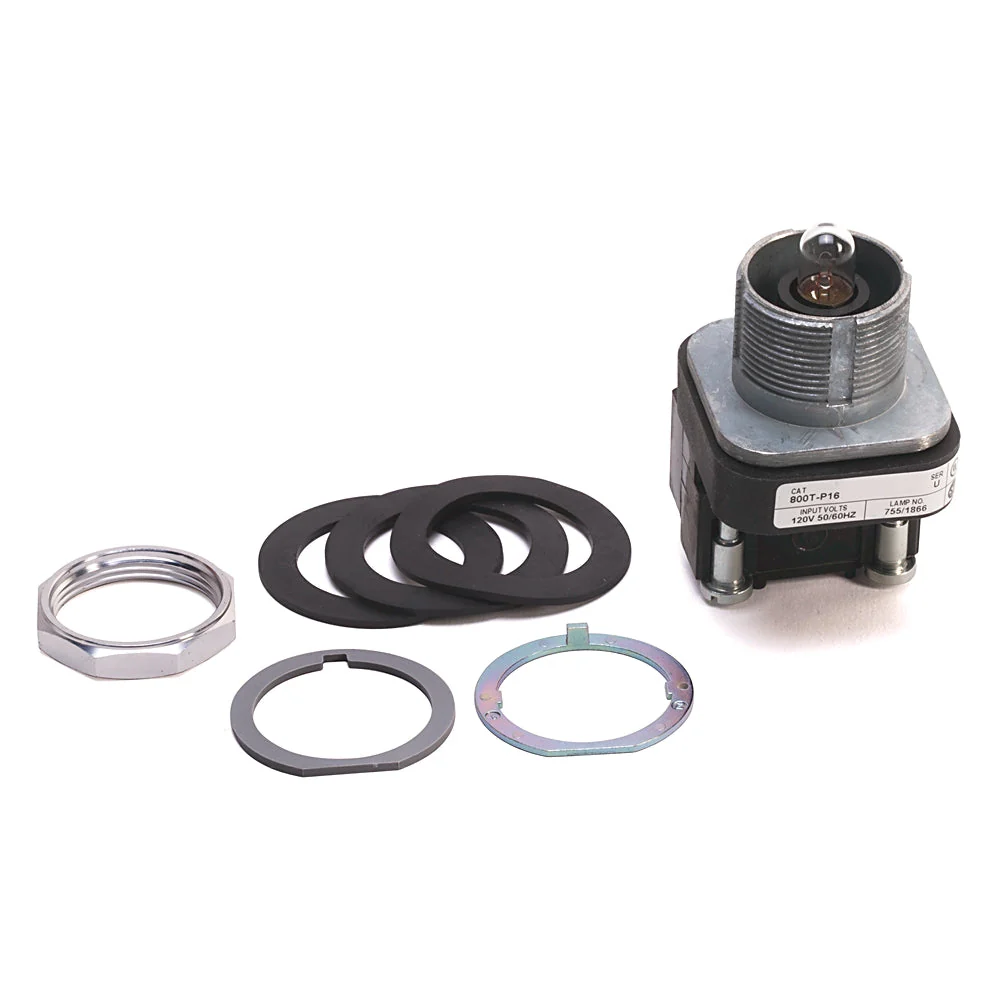

800T-P16 - Allen-Bradley - Pilot Light

800T-P16 - Allen-Bradley 120 Volt Pilot Light

800T Pilot Light, 120 V AC 50/60 Hz, Incandescent L A, No Lens, No Guards - on Terminals
Ruggedly attractive and boldly functional, the Allen-Bradley Bulletin 800T line of push buttons are designed and built to perform in demanding industrial environments. Catalog item 800T-P16 from Rockwell Automation is a 120 V AC 50/60 Hz, 30 mm pilot light. It is an incandescent lamp. For full product details, please see the sections below. Allen-Bradley is a trademark of Rockwell Automation, Inc.

• Manufacturer: Allen-Bradley

Specifications

• Cat. No.: 800TP16
• Alternate Part No.: 800T-P16
• Product Type: Pilot Light Cap
• Weight: 0.28 kgs
• Size: 30.5mm.
• Enclosure: NEMA 4 13
• Voltage: 120V AC 50/60 Hz
• Mounting Hole: 30.5 MM
• No Test Option
• Dimension: 1-13/16 IN Length X 1-13/16 IN Width X 2-3/32 IN Height
• Temperature Rating: Operating -40 To 131 DEG F
• Standards: CCC certified CE certified CSA certified C/US UL listed MARINE
• Authentic Allen Bradley Product
