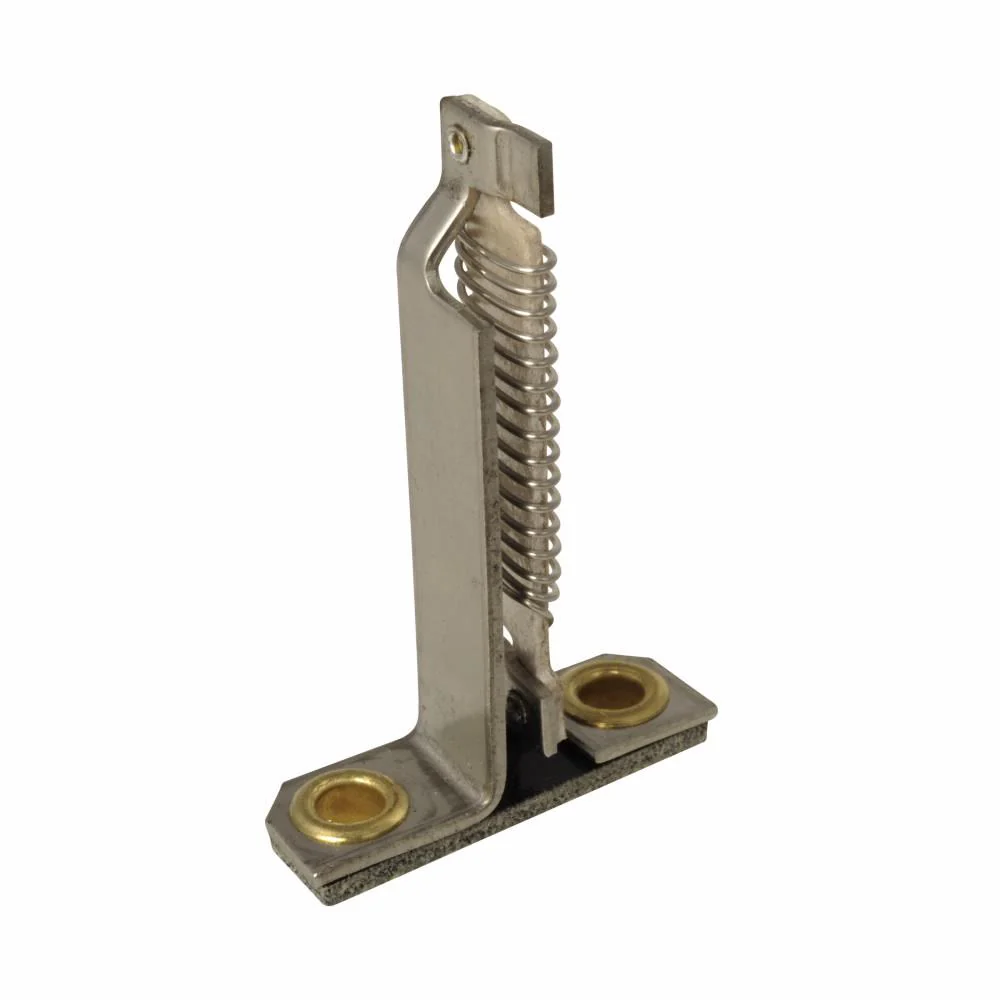

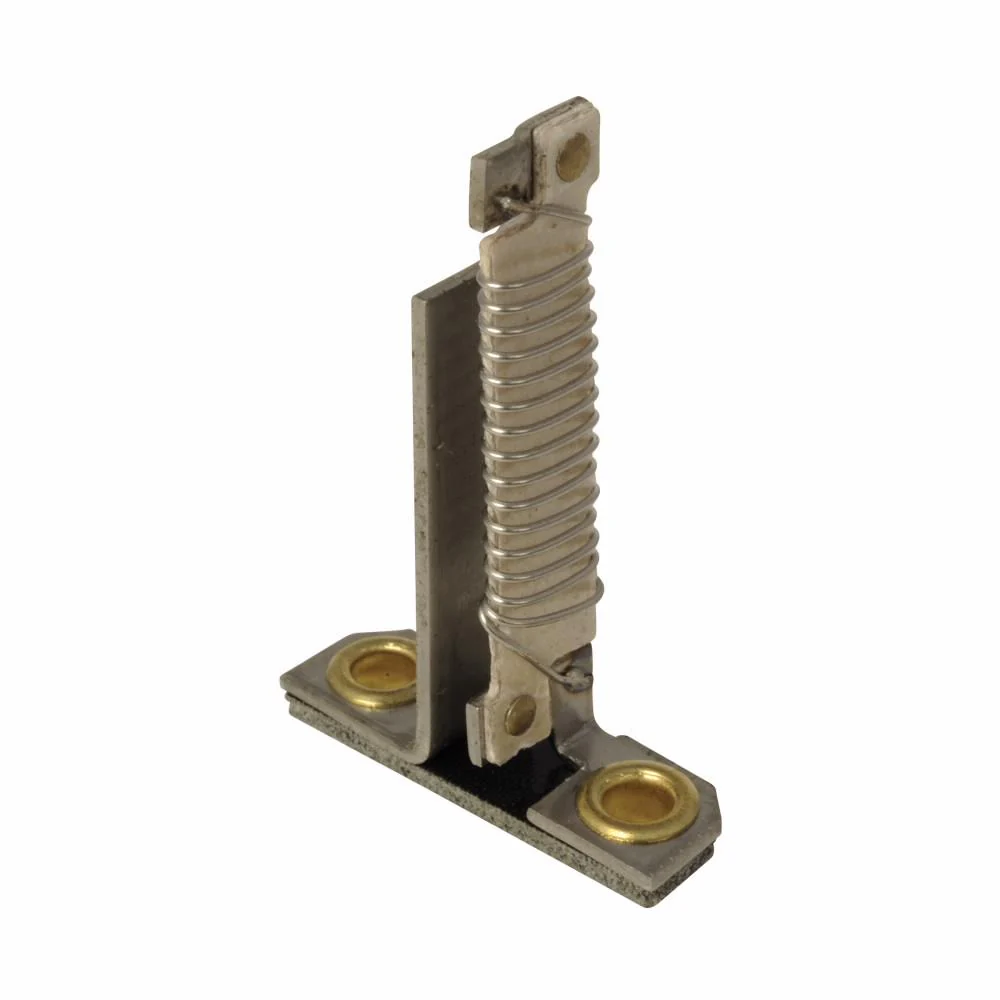

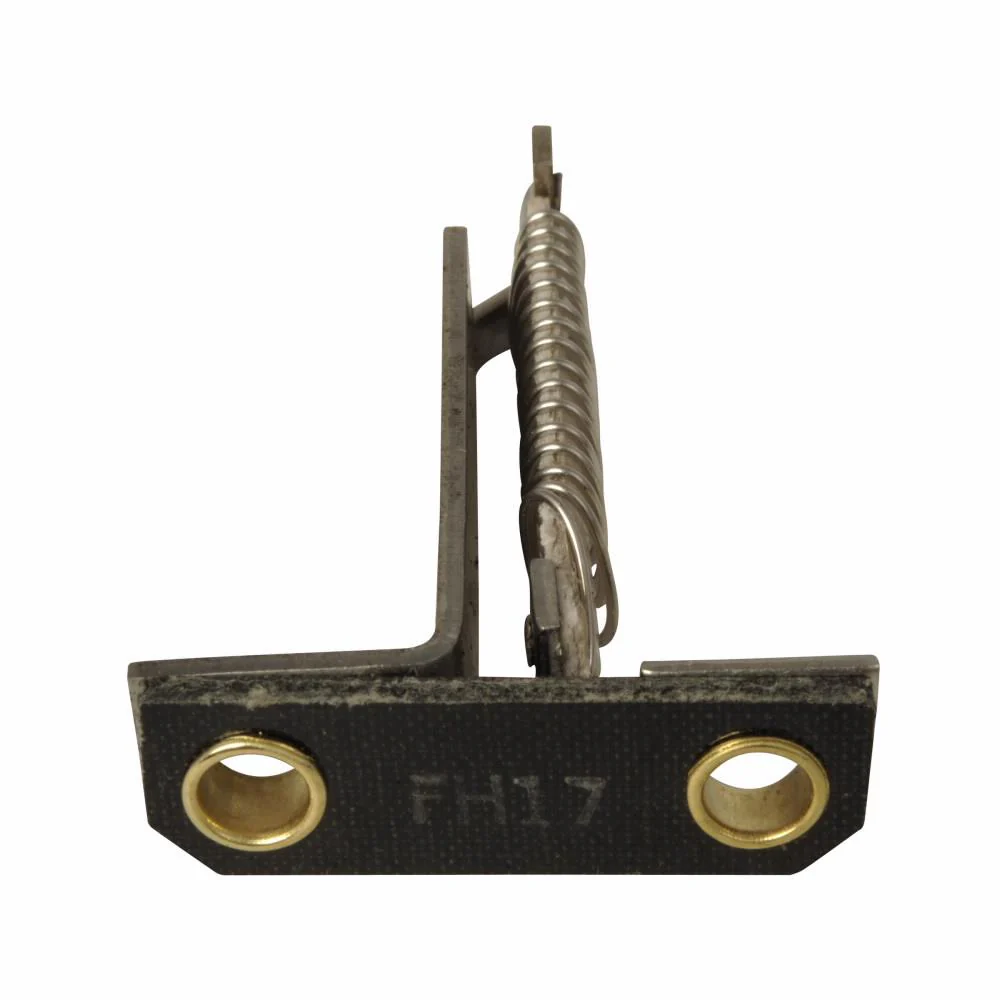

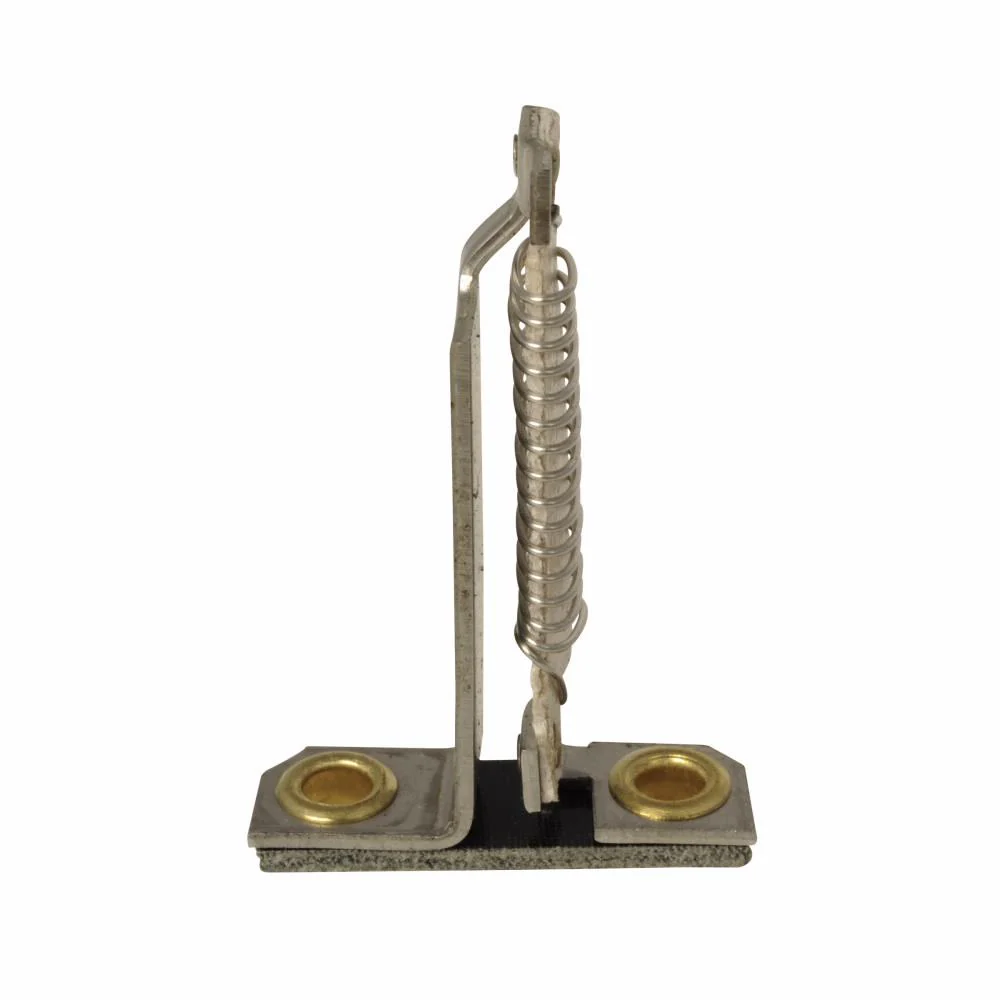

FH17 - Eaton - 1.25 Amp Overload Relay Heater
FH17 - Eaton Cutler-Hammer Overload Relay Heater
Specifications:
- Product Name: A200/B100 Heater
- UPC: 786678629384
- Certifications: CSA Certified, UL Listed
- Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
- Design: NEMA
- Full Load Current Range: Ambient 1.01-1.11, 1.17-1.28A, Non-Comp .94-1.03, 1.14-1.25A
- Overload Relay: Type A and B
- Special Features: Used with Starter Sizes 0,1, and 2
- Type: A200/B100 Heater
- Used With: Used with Starter Sizes 0,1, and 2
- Trip Type: Thermal and Fast Trip
- Authentic Eaton/Cutler-Hammer Product
$8.40
Original: $27.99
-70%FH17 - Eaton - 1.25 Amp Overload Relay Heater—
$27.99
$8.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
FH17 - Eaton Cutler-Hammer Overload Relay Heater
Specifications:
- Product Name: A200/B100 Heater
- UPC: 786678629384
- Certifications: CSA Certified, UL Listed
- Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
- Design: NEMA
- Full Load Current Range: Ambient 1.01-1.11, 1.17-1.28A, Non-Comp .94-1.03, 1.14-1.25A
- Overload Relay: Type A and B
- Special Features: Used with Starter Sizes 0,1, and 2
- Type: A200/B100 Heater
- Used With: Used with Starter Sizes 0,1, and 2
- Trip Type: Thermal and Fast Trip
- Authentic Eaton/Cutler-Hammer Product
