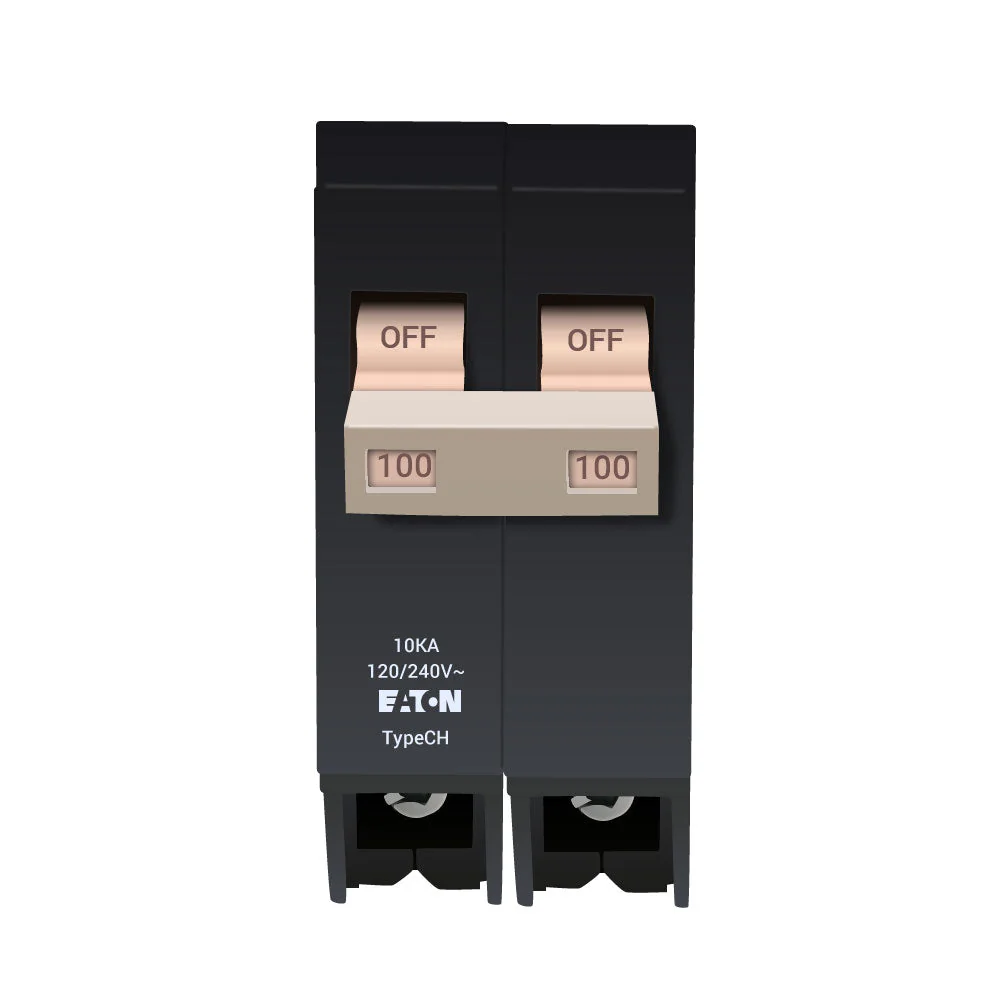

CH2100 - Eaton - 100 Amp Circuit Breaker

CH2100 - Eaton Cutler-Hammer Plug-In Circuit Breaker

Eaton / Cutler-Hammer Plug-On Circuit Breaker Its Compact And Easy to Install two pole circuit breaker features thermal magnetic molded case for extra protection circuit breaker has a current rating of 100 amps and voltage rating of 120/240 Vac it is a common trip breaker that has AIC rating of 10000 ampere and it can accommodate a wire size of 10-1/0 AWG at load circuit breakers is UL 489 listed and Csa certified.

Specifications:

• Product Name: Type CCV Tenant Main Circuit Breaker
• Product Length: 8 IN
• Product Height: 5.5 IN
• Product Width: 4.5 IN
• Product Weight: 2.5 LB
• Certifications: UL 489
• Catalog Notes: Terminals-Standard Lugs (Wire Connectors) Suitable For Copper Or Aluminum Wire
• Interrupt Rating: 10 kAIC
• Wire Size: #2/0 AWG-300 kcmil Cu/Al
• Used With: Type ECC Unit Enclosures
• Main Circuit Breaker: CCV
• Voltage Rating: 120/240V
• Amperage Rating: 225A
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 5.5" x 4.5" x 8"
