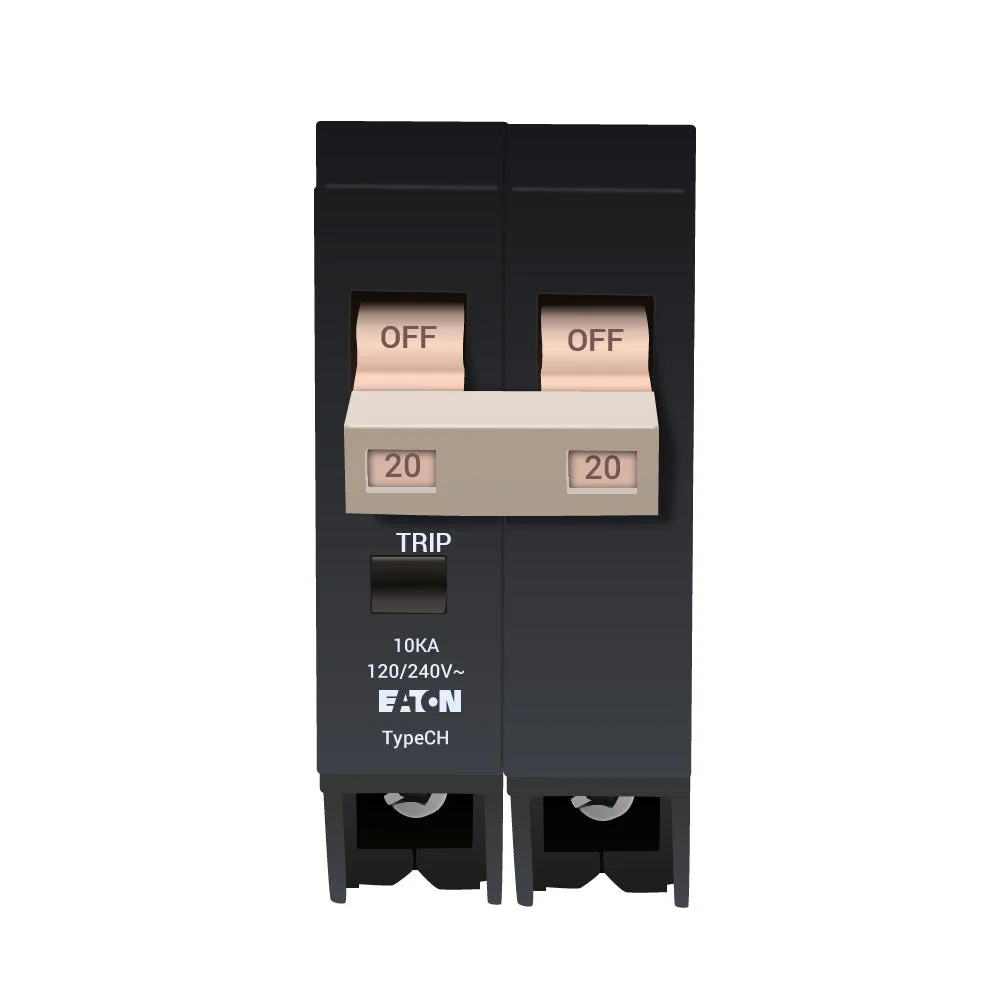

CHF220 - Eaton - 20 Amp Circuit Breaker

CHF220 - Eaton Cutler-Hammer Plug-In Circuit Breaker

Cutler Hammer CHF series double pole 20 ampere plug-in molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V complete with non-interchangeable trip (LI) long-time and instantaneous trip functions with mechanical trip flag.

Specifications:

• Product Name: Eaton Type CHF 3/4-inch standard circuit breaker
• Product Length: 3 IN
• Product Height: 3 IN
• Product Width: .75 IN
• Product Weight: .5 LB
• Certifications: UL 489
• Catalog Notes: HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
• Interrupt Rating: 10 kAIC
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Used With: Type CH Loadcenters
• Main Circuit Breaker: CH
• Voltage Rating: 120/240V
• Amperage Rating: 20A
• Trip Type: Common
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 3" x 0.75" x 3"
