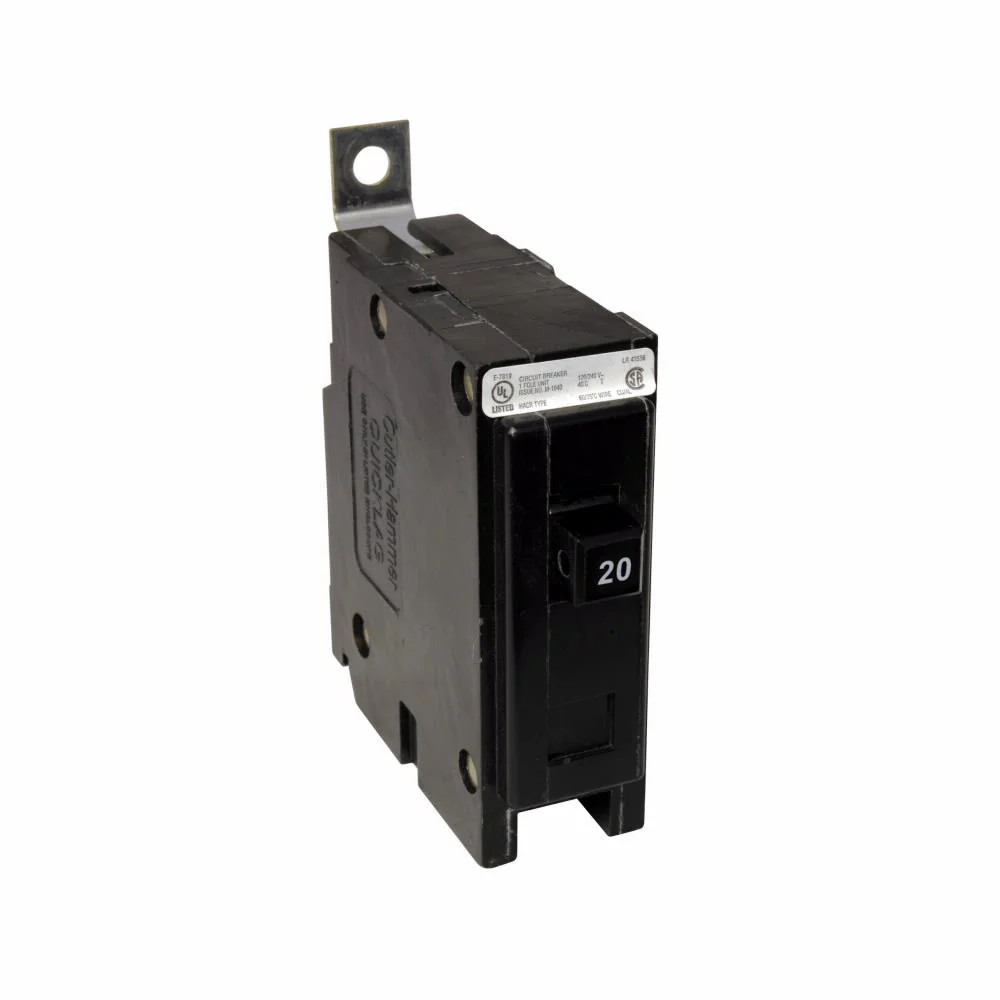

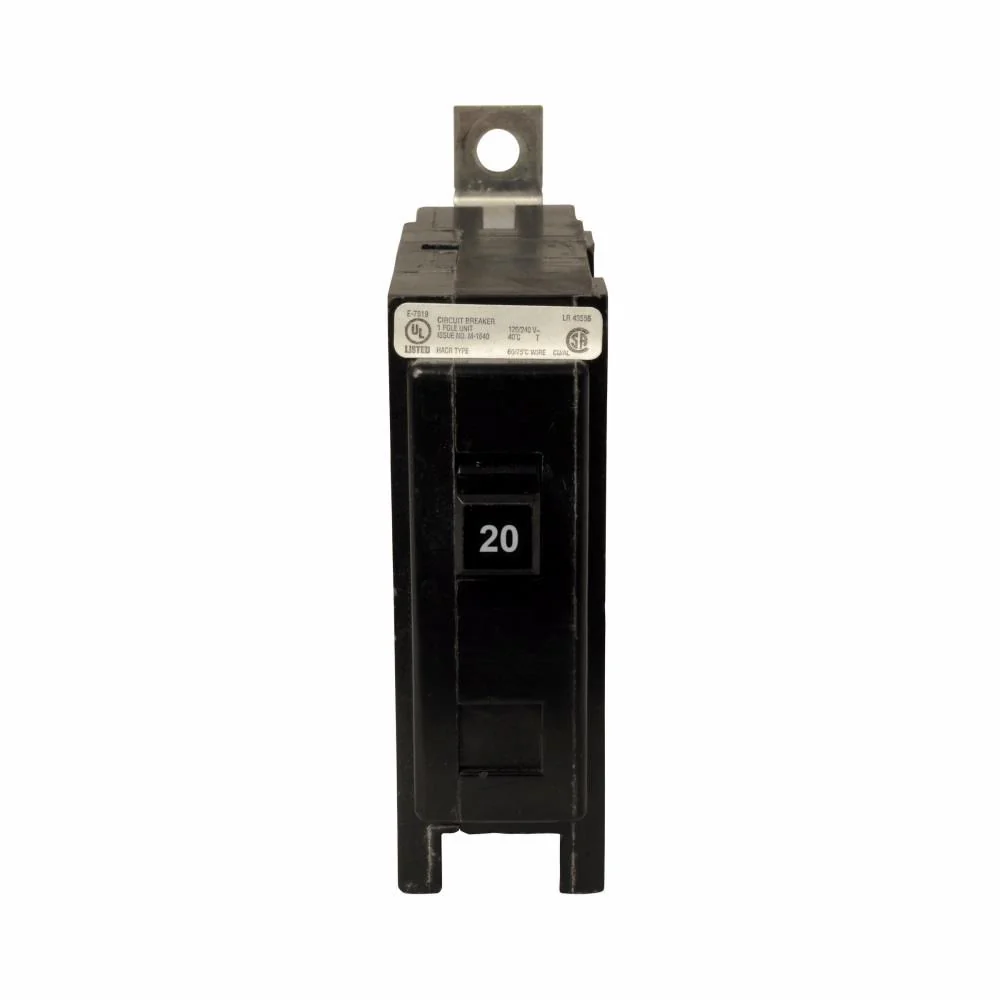

QBHW1020 - Eaton - 20 Amp Circuit Breaker

QBHW1020 - Eaton Cutler-Hammer Molded Case Circuit Breaker

This product is a cutler hammer circuit breaker type qbhw 1pole 20 amps and it has an interrupt current rating 22,000 ampere at 120/240 vac 5000 ampere at 24 to 48 vac 3800 ampere at 62.5 vdc thermal magnetic molded case circuit breakers.

Specifications:

• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Product Length: 3.9 IN
• Product Height: 4.7 IN
• Product Width: 1.2 IN
• Product Weight: .3 LB
• Certifications: UL Listed, CSA Certified
• Catalog Notes: Switching duty rated for 120V fluorescent light applications, HACR rated
• Mounting: Bolt-on
• Interrupt Rating: 22 kAIC
• Type: Quicklag
• Circuit Breaker Type: QBHW
• Quantity: Q17
• Voltage Rating: 120/240V
• Amperage Rating: 20A
• Trip Type: Non-Interchangeable
• Number Of Poles: Single-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 4.7" x 1.2" x 3.9"
