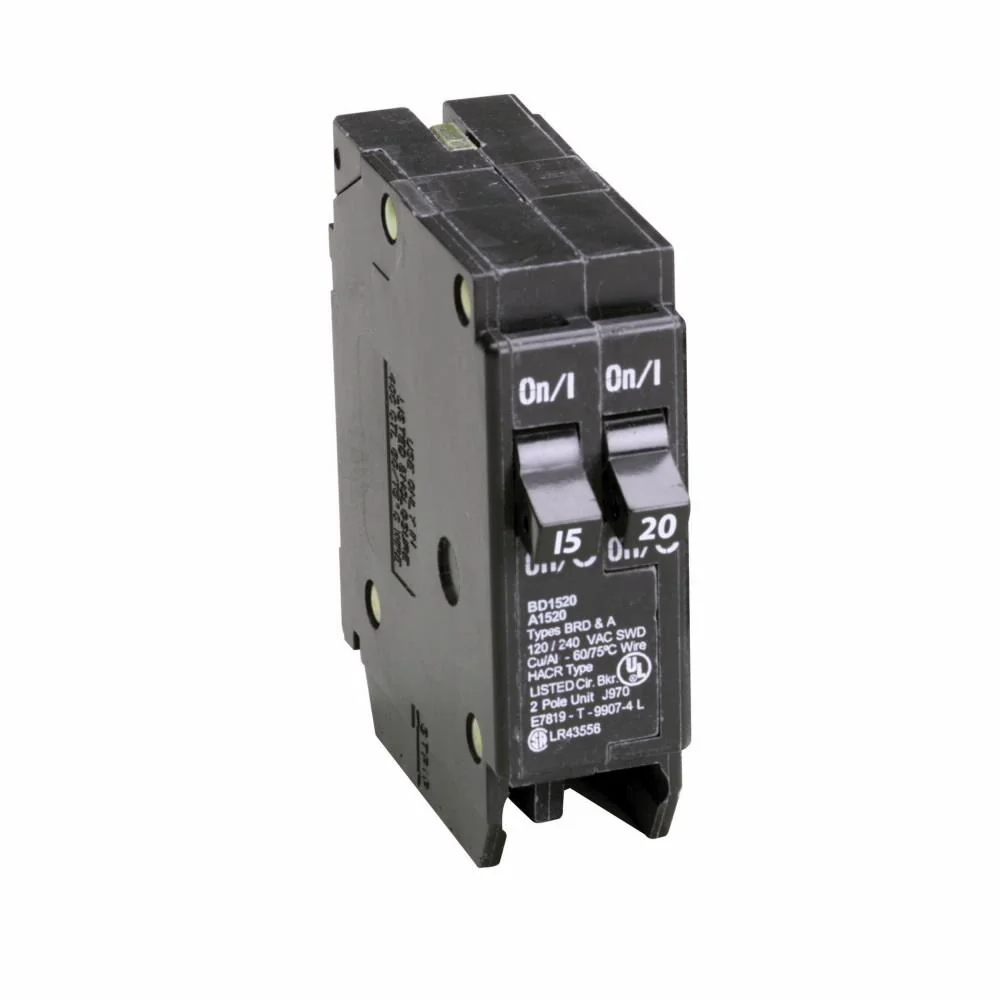

BD1520 - Eaton - 20 Amp Tandem Circuit Breaker

BD1520 - Eaton Cutler-Hammer Plug-On Circuit Breaker

Eaton / Cutler-Hammer Duplex Plug-On Circuit Breaker Its Compact And Easy to Install two pole duplex circuit breaker features thermal magnetic molded case for extra protection circuit breaker has a current rating of 15 Amps on outside pole and 20 Amps on inside pole it has a voltage rating of 120 VAC and AIC rating of 10 kilo-Amps it accommodates copper/aluminum wire of size 14 - 4 AWG at 60 or 75 deg C circuit breaker is Ul 489 listed and Csa certified.

Specifications:

• Product Name: Eaton Type BD 1-inch CTL plug-on breaker
• UPC: 786676369107
• Product Length/Depth: 3.2 IN
• Product Height: 4 IN
• Product Width: 1.6 IN
• Product Weight: 2.15 LB
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated
• Special Features: Includes Rejection Tab feature
• Interrupt Rating: 10 kAIC
• Type: BD Duplex
• Wire Size: #14-4 AWG Cu/Al
• Used With: Type BR Loadcenters
• Main Circuit Breaker: BD
• Mounting Method: Plug-on
• Voltage Rating: 120V
• Amperage Rating: (1) 15A, (1) 20A
• Number Of Poles: Single-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 4" x 1.6" x 3.2"
