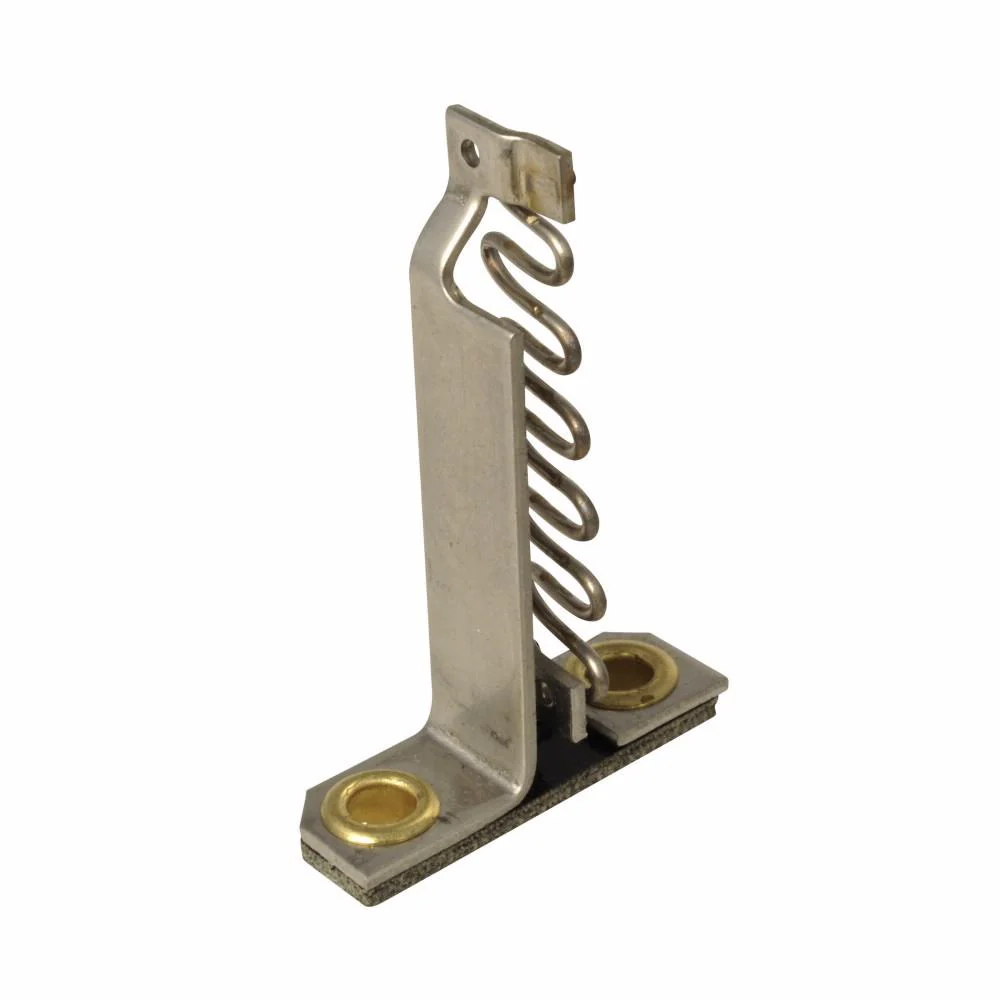

FH27 - Eaton - 3.36 Amp Overload Relay Heater

FH27 - Eaton Cutler-Hammer Overload Relay Heater

A200 Series Cutler Hammer FH27 class 20 standard trip thermal overload heater elements use with thermal overload relays type FH rated for 3.08-3.36 amps magnetic motor starters motor controls.

Specifications:

• Product Name: A200/B100 Heater
• UPC: 786678629681
• Certifications: CSA Certified, UL Listed
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Design: NEMA
• Full Load Current Range: Ambient 2.59-2.83, 3.00-3.28A, Non-Comp 2.40-2.63 2.93-3.21A
• Overload Relay: Type A and B
• Special Features: Used with Starter Sizes 0,1, and 2
• Type: A200/B100 Heater
• Used With: Used with Starter Sizes 0,1, and 2
• Trip Type: Thermal and Fast Trip
• Authentic Eaton/Cutler-Hammer Product
