CHB280 - Eaton - 80 Amp Circuit Breaker

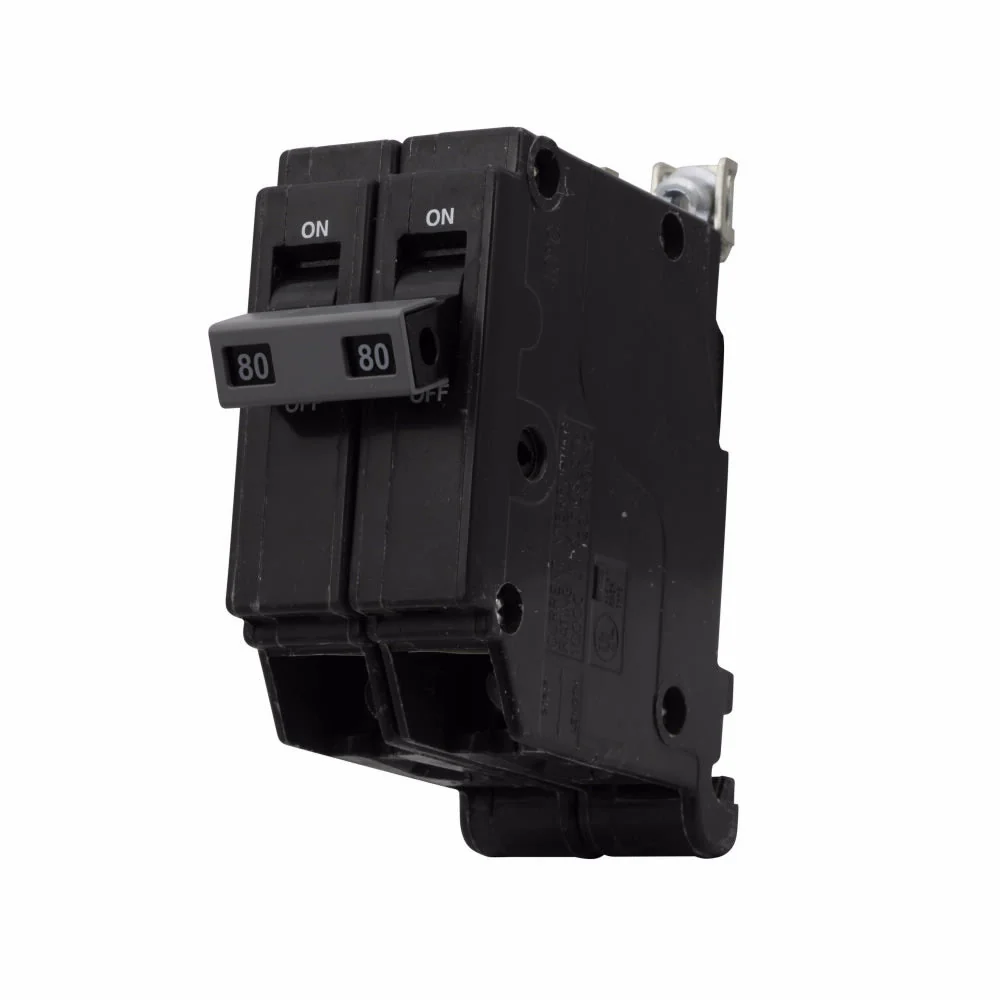

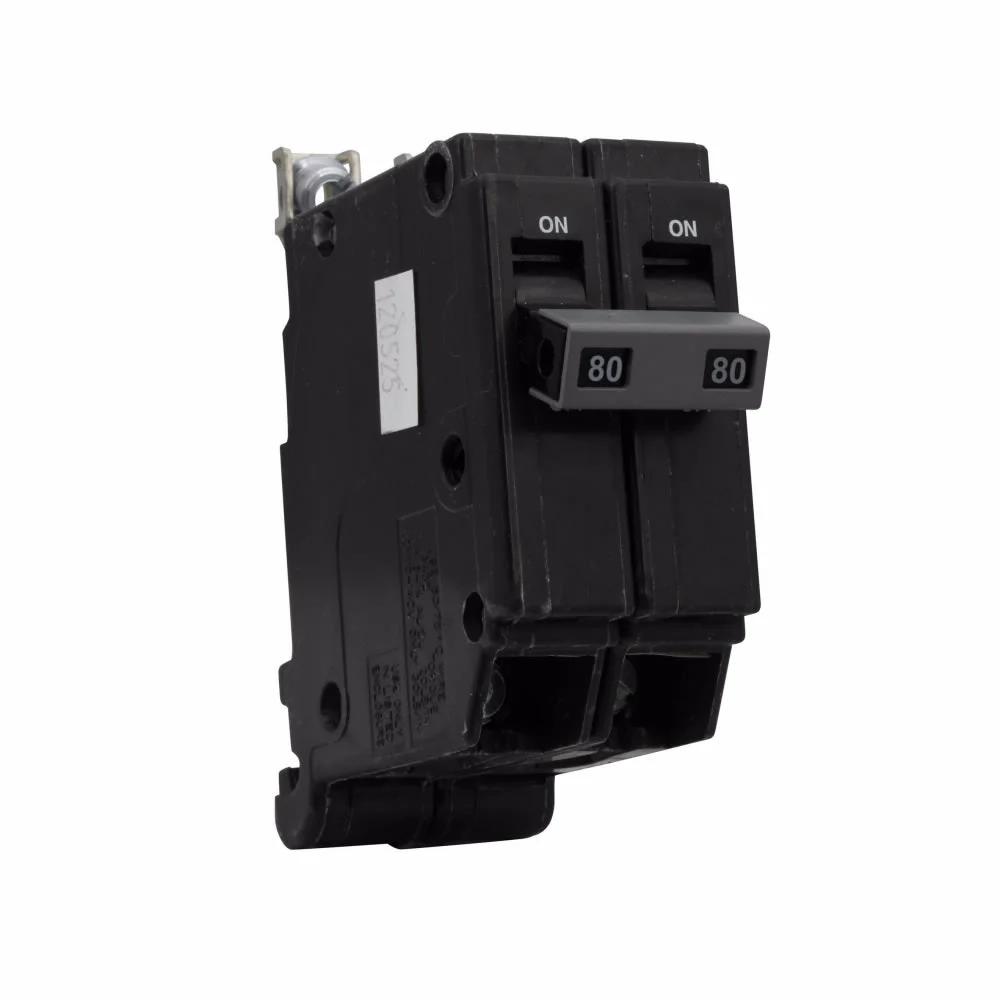

CHB280 - Eaton Cutler-Hammer Bolt-On Circuit Breaker

Cutler-Hammer CHB series double pole single phase 80 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V trip type fixed thermal magnetic and high interrupting rating of 10 kiloampere at 240V functions long-time and instantaneous used on PB panelboards.

Specifications:

• Product Name: Type CHB Circuit Breaker
• Product Length: 5.8 IN
• Product Height: 1.4 IN
• Product Width: 3.6 IN
• Product Weight: .45 LB
• Certifications: UL 489
• Interrupt Rating: 10 kAIC
• Wire Size: #4-1/0 AWG
• Circuit Breaker Type: CHB
• Used With: CH Loadcenters
• Voltage Rating: 120/240V
• Amperage Rating: 80A
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 1.4" x 3.6" x 5.8"
