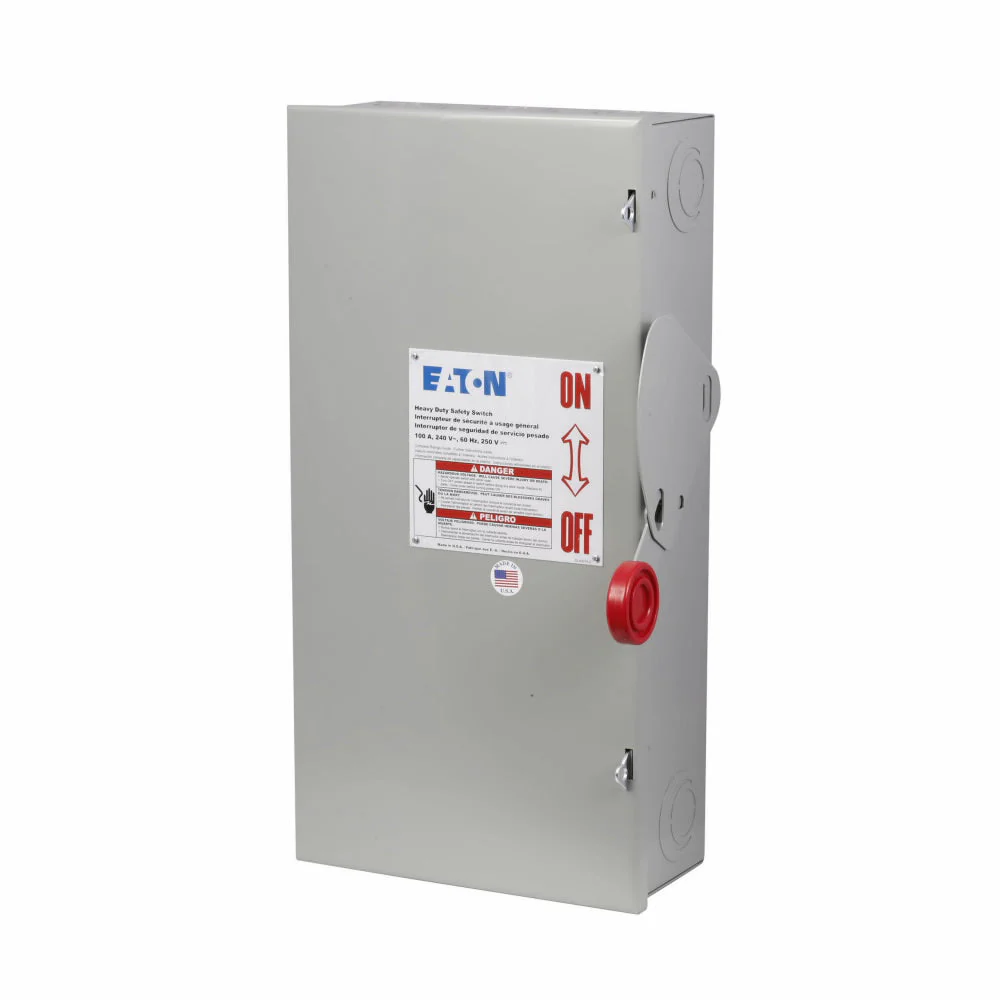

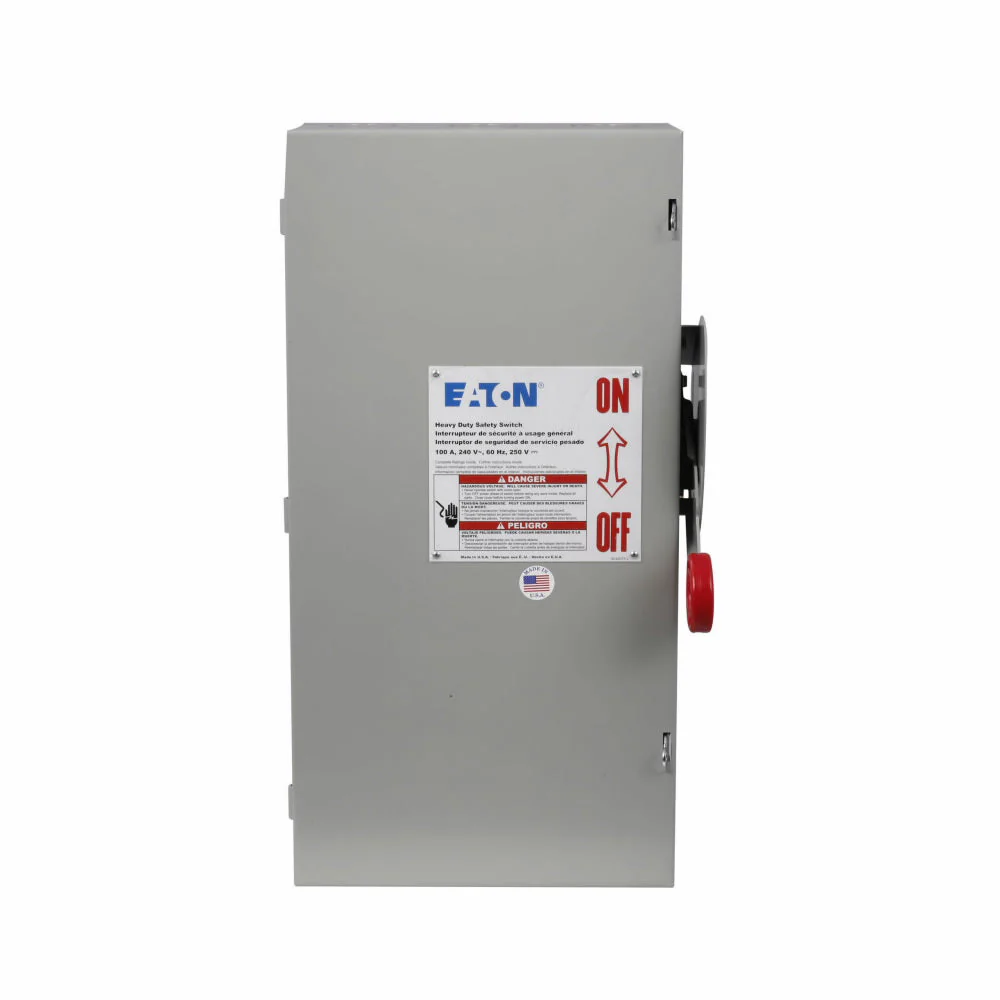

DH223NGK - Eaton - Disconnect and Safety Switch
Overview
Product Specifications - DH223NGK - Eaton Disconnect and Safety Switch
-
Part Number:
DH223NGK -
Manufacturer:
-
Family:
DH Series -
Pole:
2 -
Amp
100 -
Volt:
240 -
Phase:
1
-
Category:
-
Type:
DH -
AIC Ratings:
100kA@240V -
Configuration:
Single -
Nema Rating:
3R -
Switch Style:
Fusible -
Suit Fuse:
R
Dimensions
-
Dimensions (HxWxD):
9.0" x 12.75" x 22.5"
-
Weight:
23 lbs
Standards
Product Description - DH223NGK - Eaton Disconnect and Safety Switch
Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 100 A, NEMA 1, Painted steel, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#1/0 Cu/Al.
