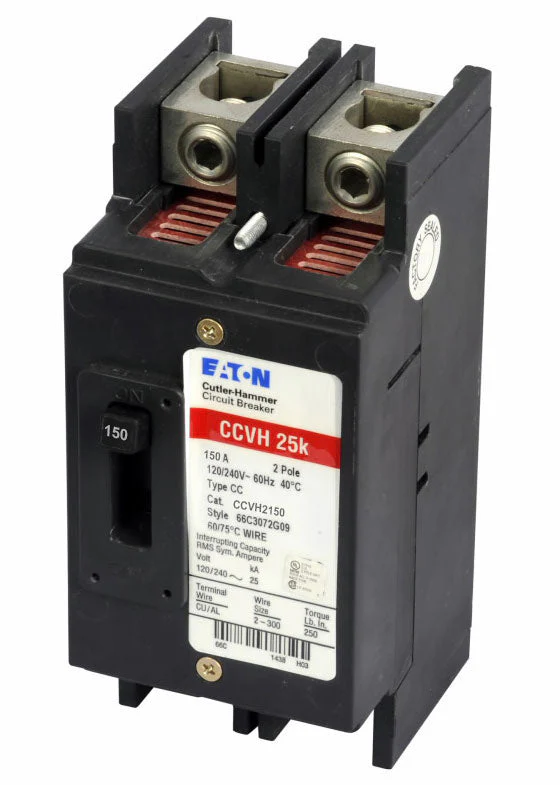

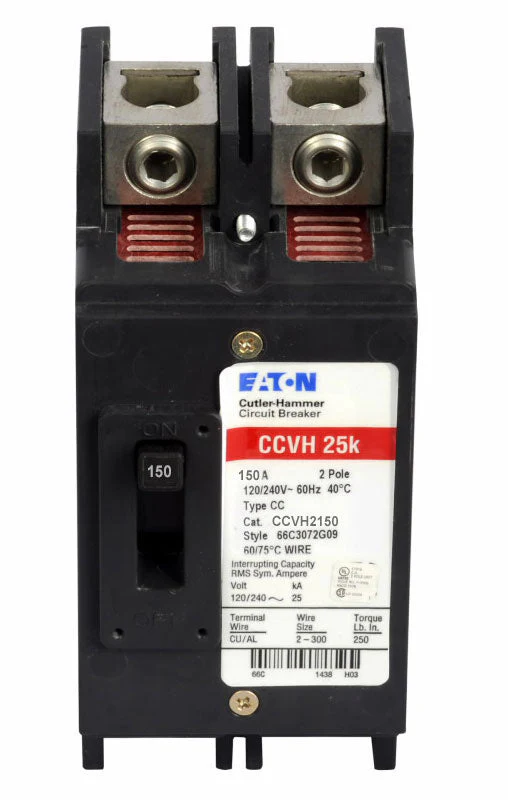

CCVH2150 - Eaton - Main Circuit Breaker
Overview
Product Specifications - CCVH2150 - Eaton Molded Case Circuit Breakers
-
Part Number:
CCVH2150 -
Manufacturer:
-
Family:
Tenant Main -
Pole:
2 -
Amp
150 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Feed Thru -
Type:
CCVH -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@240V
Dimensions
-
Dimensions (HxWxD):
5.5" x 4.5" x 8"
-
Weight:
2.9 lbs
Standards
Product Description - CCVH2150 - Eaton Molded Case Circuit Breakers
Eaton Type CCV Tenant Main Circuit Breaker,Tenant main circuit breaker,150 A,25 kAIC,Two-pole,120/240 V,#2/0 AWG-300 kcmil Cu/Al,CCV,Type ECC unit enclosures.
