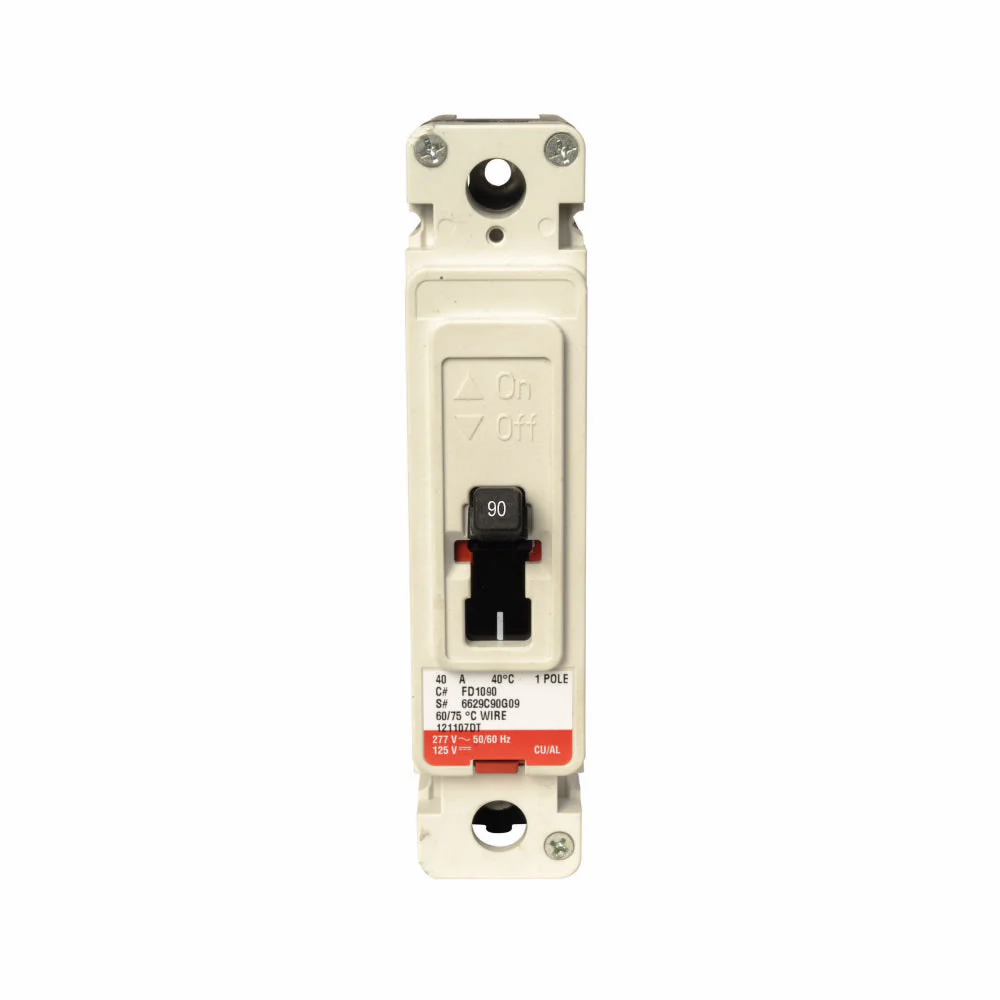

Product image 1
HomeStore

FD1090L - Eaton - Molded Case Circuit Breaker

FD1090L - Eaton - Molded Case Circuit Breaker

Overview

Product Specifications - FD1090L - Eaton Cutler-Hammer Molded Case Circuit Breakers

  • Part Number:

    FD1090L

  • Manufacturer:

    Eaton Cutler-Hammer

  • Family:

    Series C

  • Pole:

    1

  • Amp:

    90

  • Volt:

    277

  • Phase:

    1

  • Category:

    Molded Case Breakers / 1-Pole

  • Connection:

    Feed-Thru

  • Type:

    F Frame

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@277V

  • Trip Type:

    Fixed thermal, fixed magnetic

  • Circuit breaker type:

    FD

  • Circuit breaker frame type:

    Complete breaker

  • Terminals:

    Line and load

  • Frame:

    F

  • Frequency rating:

    50/60 Hz

  • Interrupt rating:

    35 kAIC at 277 Vac
    18 kAIC at 347 Vac

Dimensions

  • Dimensions (HxWxD):

    3.38 in x 6 in x 1.38

  • Weight:

    4.5 lbs

Standards

CSA Approved logo

Product Description - FD1090L - Eaton Cutler-Hammer Molded Case Circuit Breakers

Eaton Series C complete molded case circuit breaker, F-frame, FD, Complete breaker, Fixed thermal, fixed magnetic trip type, Single-pole, 90A, 347 Vac, 125 Vdc, 35 kAIC at 277 Vac, 18 kAIC at 347 Vac, Line and load, 50/60 Hz

Select Condition
From $215.99
FD1090L - Eaton - Molded Case Circuit Breakerā€”
$215.99
