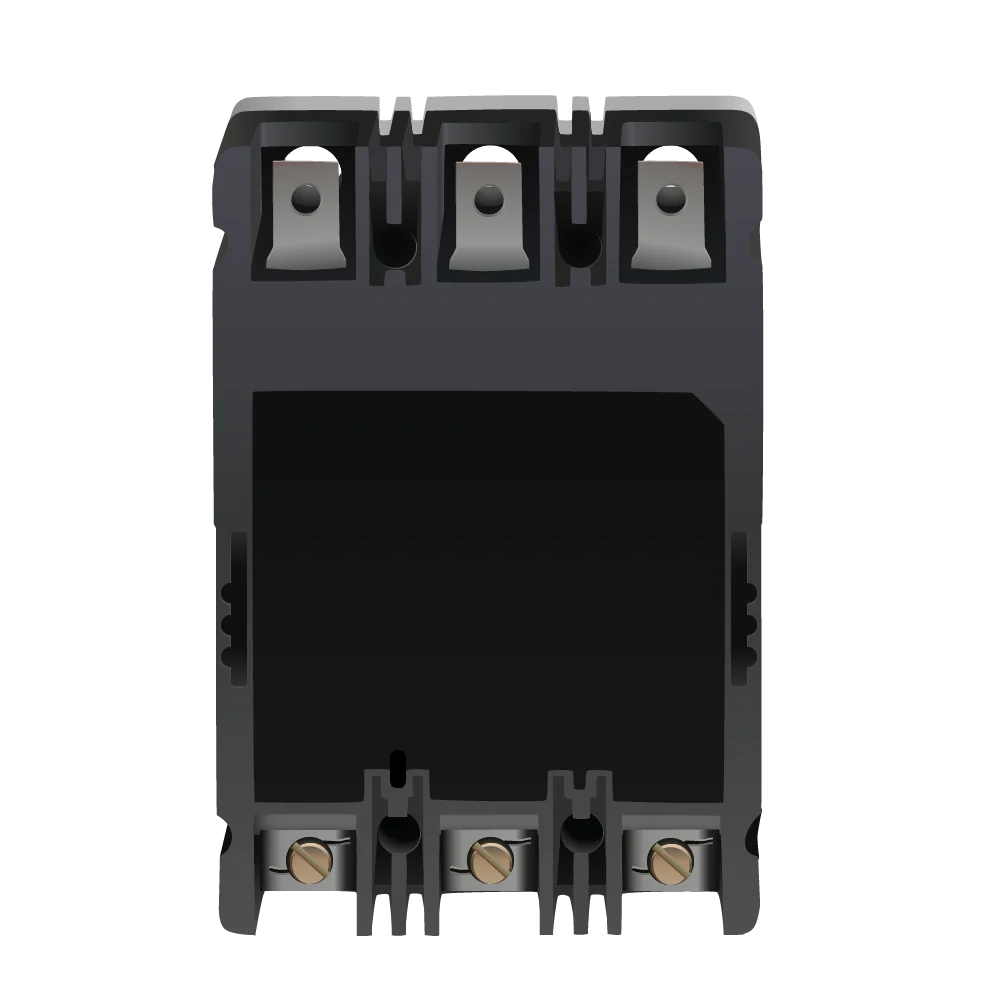

FD3080 - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - FD3080L- Eaton Molded Case Circuit Breaker
-
Part Number:
FD3080 -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
80 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
FD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
6" x 4.13" x 3.38"
-
Weight:
4.6 lbs
Standards
Product Description - FD3080 - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type FD, 3P, 3PH, 80A, 600V, 35kA@480V, standard interrupting capacity, 40 degree C, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
Documentation
Select Condition
From $399.99
FD3080 - Eaton - Molded Case Circuit Breakerā
$399.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - FD3080L- Eaton Molded Case Circuit Breaker
-
Part Number:
FD3080 -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
80 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
FD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
6" x 4.13" x 3.38"
-
Weight:
4.6 lbs
Standards
Product Description - FD3080 - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type FD, 3P, 3PH, 80A, 600V, 35kA@480V, standard interrupting capacity, 40 degree C, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
