FDE316032 - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - FDE316032 - Eaton Molded Case Circuit Breakers
-
Part Number:
FDE316032 -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
160 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
FDE -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
4.9" x 5.1" x 7.4" -
Weight:
4.3 lbs
Standards
Product Description - FDE316032 - Eaton Molded Case Circuit Breakers

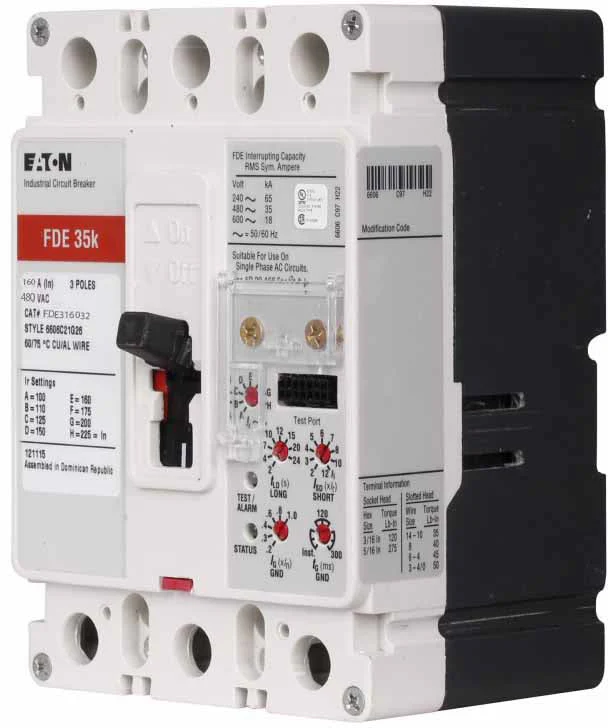

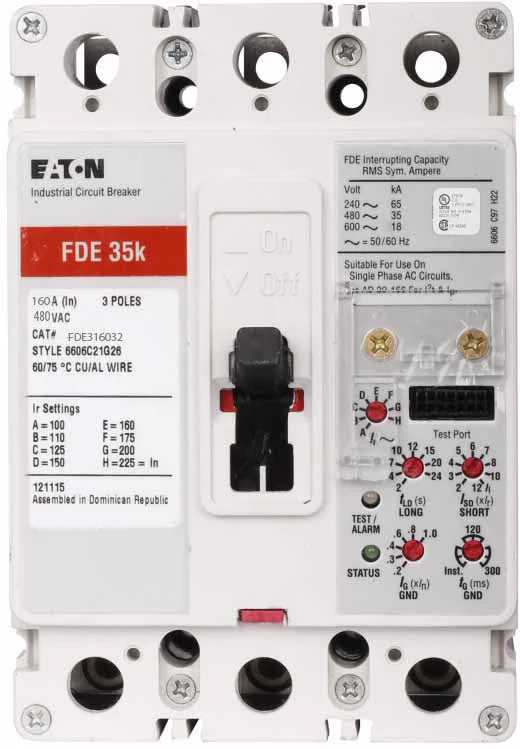

Eaton Series C electronic molded case circuit breaker, F-frame, FDE, Digitrip 310 RMS, Electronic LSI trip, Three-pole, 160 A, 600 Vac, 250 Vdc, 65kA@240 Vac, 35kA@480 Vac, Load side, Not UL rated, 50/60 Hz
