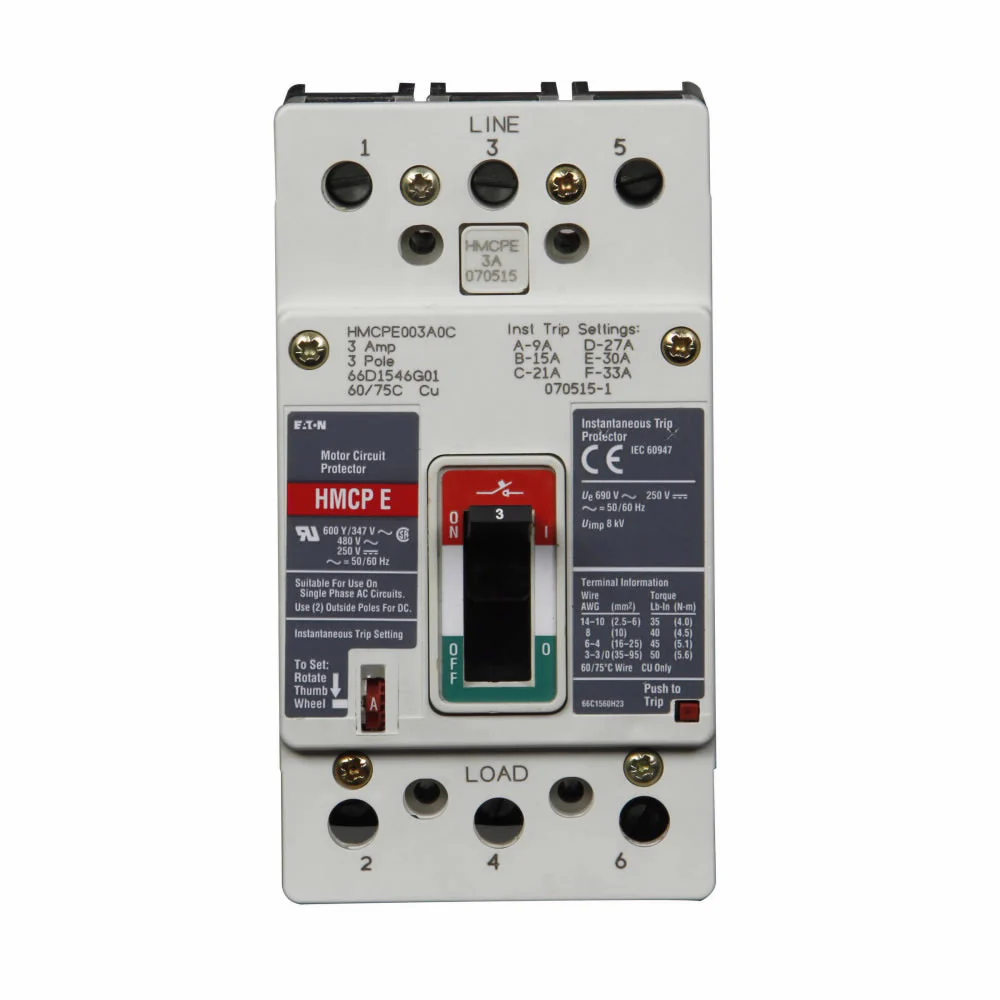

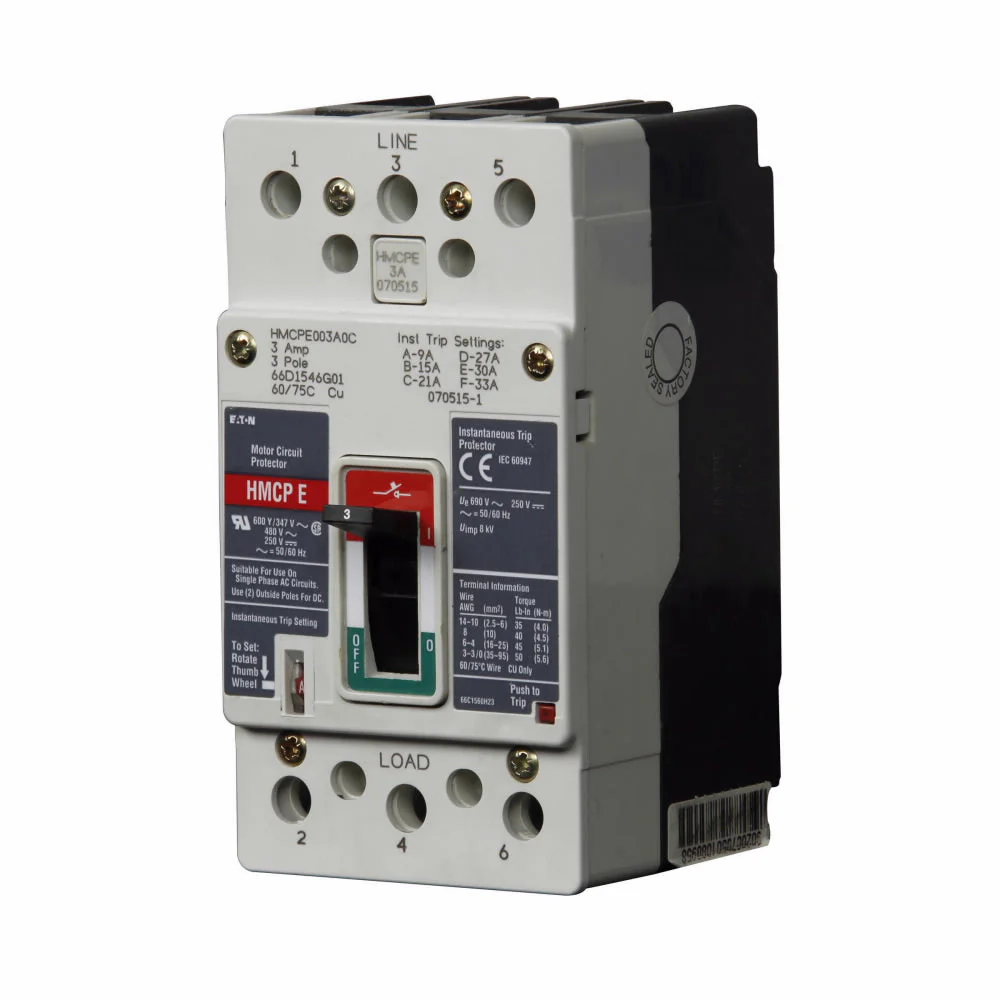

HMCPE030H1 - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - HMCPE030H1 - Eaton Molded Case Circuit Breaker
-
Part Number:
HMCPE030H1 -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp
30 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HMCPE -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
15kA@400V
Dimensions
-
Dimensions (HxWxD):
B 5.5" x 3" x 6.5"
-
Weight:
3 lbs
Standards
Product Description - HMCPE030H1 - Eaton Molded Case Circuit Breaker
Cutler Hammer, Series G, type HMCPE, EG Frame, 3P, 3PH, 30A, 480V, 600Y/347Vac, 40 degree C, feed-thru, complete with non-interchangeable trip with I - Instantaneous protection only, non-aluminum line & load side lug terminals, MCP, motor circuit protector, magnetic range 90-330A, motor FLA 3.9-26.1A, magnetic only, molded case circuit breakers.
