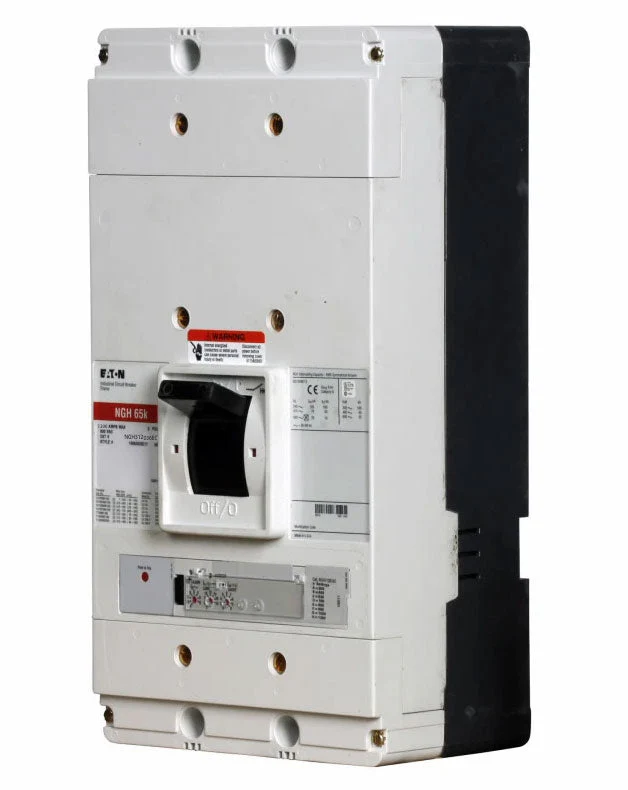

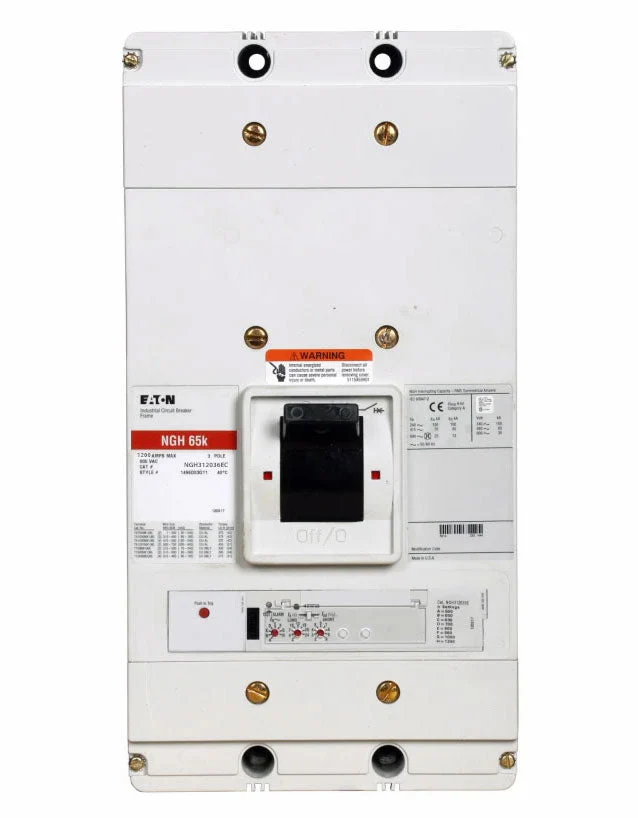

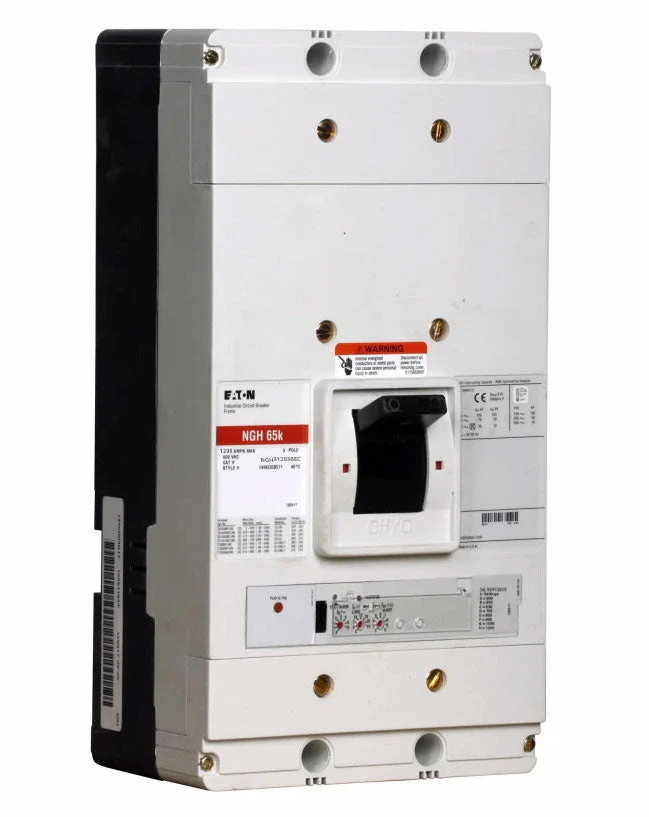

NGH312036EC - Eaton - Molded Case Circuit Breaker

NGH312036EC - Eaton - Molded Case Circuit Breaker

Overview

Product Specifications - NGH312036EC - Eaton Molded Case Circuit Breakers

  • Part Number:

    NGH312036EC

  • Manufacturer:

    Eaton Cutler-Hammer

  • Family:

    Series G

  • Pole:

    3

  • Amp

    1200

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    NGH

  • Functions:

    LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault

  • Protection:

    Solid State

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    9" x 9" x 6"

  • Weight:

    48 lbs

Standards

CSA Approved logo

Product Description - NGH312036EC - Eaton Molded Case Circuit Breakers

Cutler Hammer, Series G, type NGH, 3P, 3PH, 1200A, 600V, 100% rated, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, high interrupting capacity, bolt-on, complete with Digitrip RMS 310+ trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and imperial tapped line/load conductors, lugs not included, solid state electronic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
