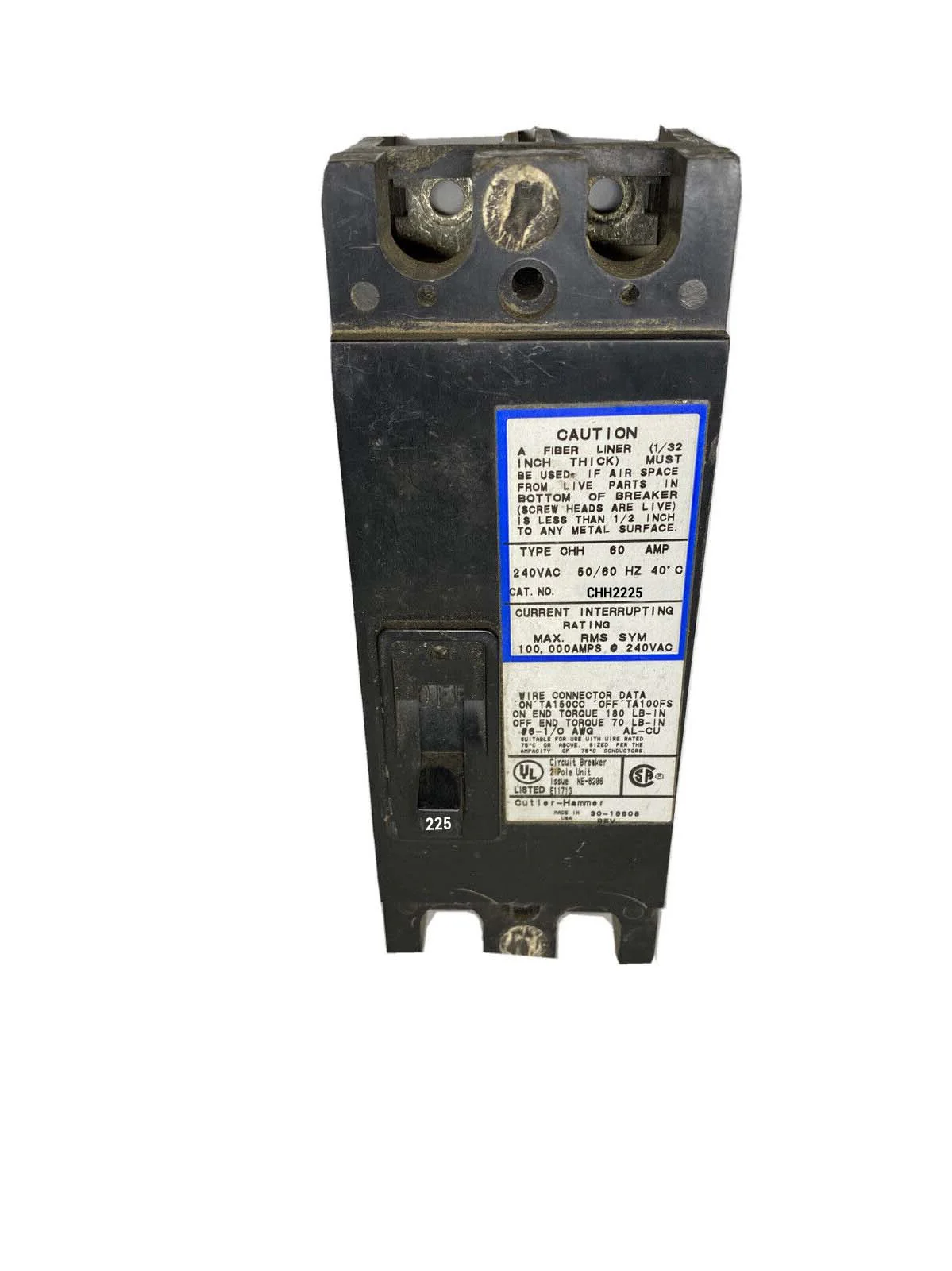

CHH2225 - Eaton - Molded Case Circuit Breakers
Overview
Product Specifications - CHH2225 Eaton Molded Case
-
Part Number:
CHH2225 -
Manufacturer:
-
Family:
CHH Series -
Pole:
2 -
Amp
225 -
Volt:
240 -
Phase:
1
-
Category:
-
Type:
CH Frame -
AIC Ratings:
100kA@240V
Dimensions
-
Dimensions (HxWxD):
9 x 4.5 x 5.5 -
Weight:
5 lb
Standards
Product Description - CHH2225 Eaton Molded Case
The CHH2225 by Cutler Hammer is a robust member of the CHH Series, categorized as type CHH. This 2-pole, single-phase circuit breaker boasts a substantial 225A rating at 240V, accompanied by a standard interrupting capacity of 100kA@240V. With line & load lug terminals, it operates efficiently within a 40B:C temperature range. As a Feed-Thru model with Long-Time and Instantaneous trip functions (LI), CHH2225 is suitable for use as a main breaker. The inclusion of Thermal Magnetic molded case circuit breakers ensures optimal performance and safety.
