THHQB1150 - GE - 22kA Circuit Breaker

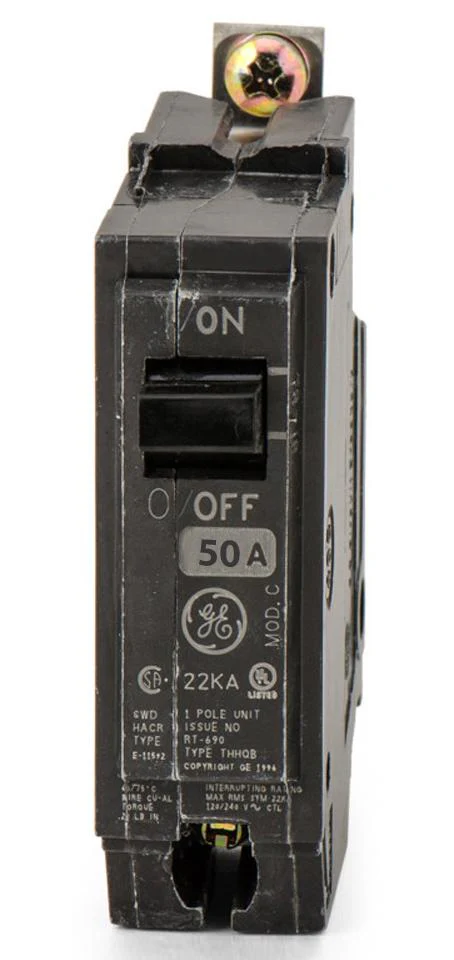

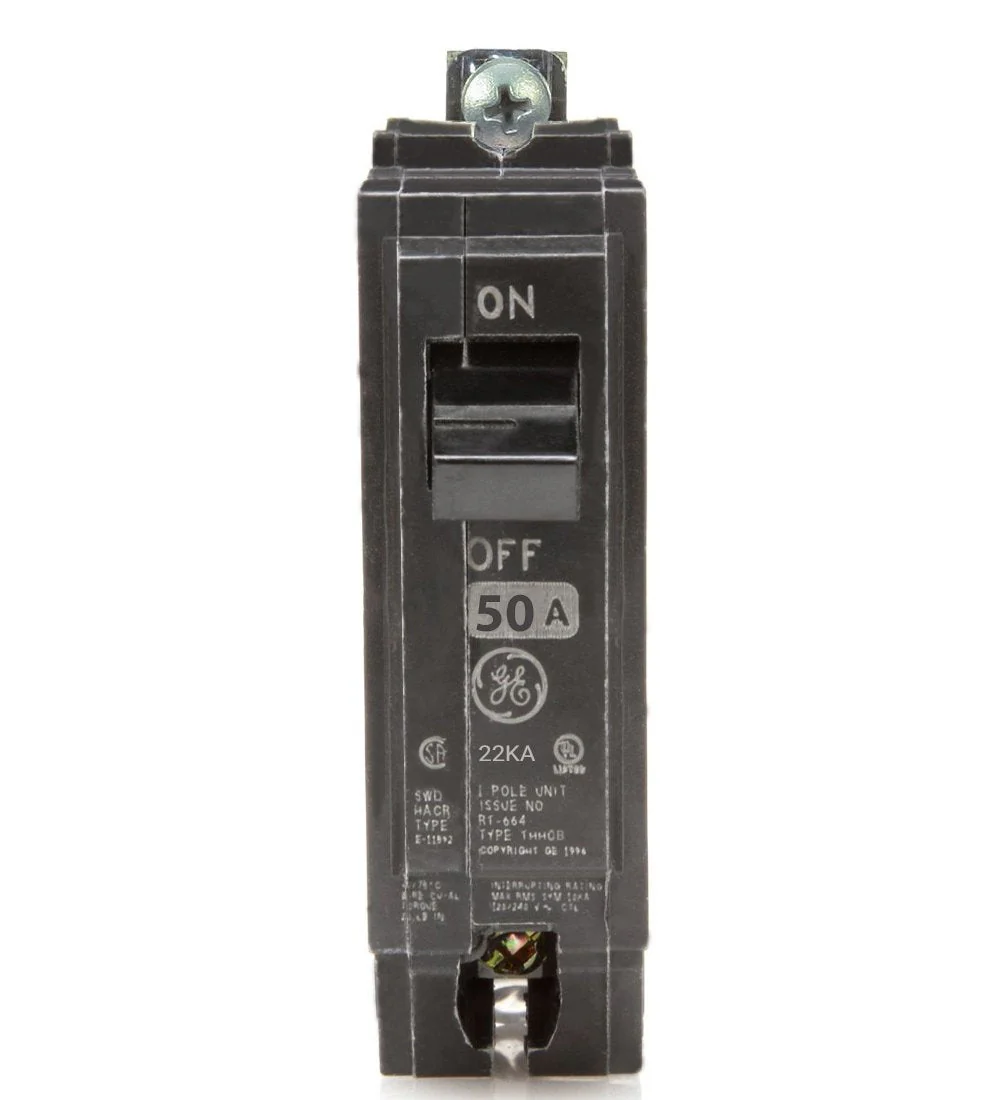

THHQB1150 - GE Bolt-On Molded Case Circuit Breaker

General Electric THHQB Series single pole 50 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V trip type thermal magnetic and standard interrupting rating of 22 kiloampere at 120V (LI) Long-Time and Instantaneous trip functions and load side lug terminal.

Specifications:

• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 50 A
• System Voltage: 120 Vac, 120/240 Vac
• Poles: 1
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 22 KAIC
• 120/240 Vac Interrupting Rating: 22 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Protective Relays: No
• Current Metering: No
• Special Markings: HACR
• GSA Compliance: No
• Authentic General Electric Product
