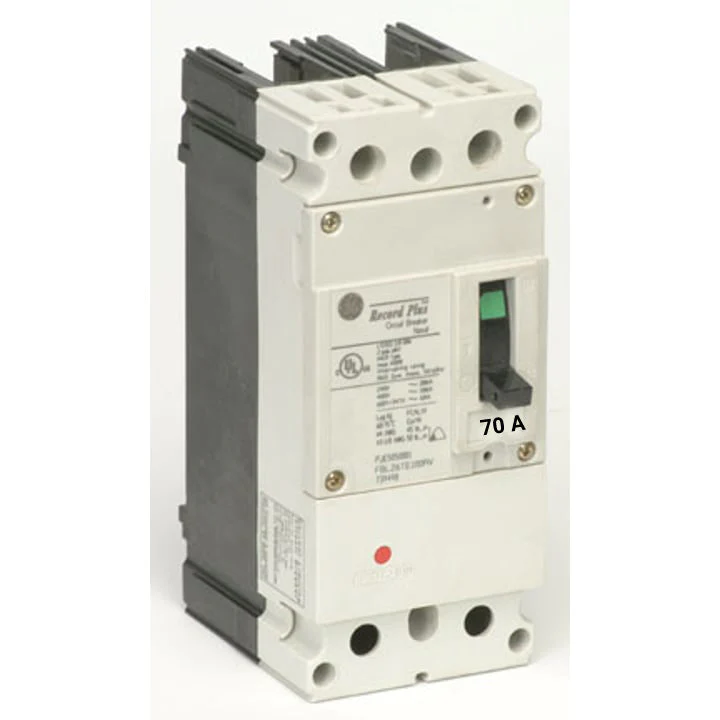

FBV26TE070RV - General Electrics - Molded Case Circuit Breakers

FBV26TE070RV - General Electrics - Molded Case Circuit Breakers

Overview

Product Specifications - FBV26TE070RV - General Electrics Molded Case Circuit Breakers

  • Part Number:

    FBV26TE070RV

  • Manufacturer:

    General Electric

  • Family:

    Record Plus

  • Pole:

    2

  • Amp

    70

  • Volt:

    600

  • Phase:

    1

  • Category:

    Molded Case Circuit Breakers / 2-Pole

  • Connection:

    Bolt-On

  • Type:

    FBV

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    150kA@480V

Dimensions

  • Dimensions (HxWxD):

    8.75 x 4.5 x 5

  • Weight:

    7 lb

Standards

CSA Approved logo

Product Description - FBV26TE070RV - General Electrics Molded Case Circuit Breakers

For FBV26TE070RV, a molded case circuit breaker from General Electric's Record Plus series with the FBV type and FB100 frame, this product is designed for 2P (2-phase), 1PH applications. It features a 70A current capacity and a standard interrupting capacity of 150kA@480V. The Bolt-On design, combined with Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features, ensures reliable performance in your electrical system.

Select Condition
From $533.99
FBV26TE070RV - General Electrics - Molded Case Circuit Breakersā€”
$533.99

Product Information

Shipping & Returns

Description

Overview

Product Specifications - FBV26TE070RV - General Electrics Molded Case Circuit Breakers

  • Part Number:

    FBV26TE070RV

  • Manufacturer:

    General Electric

  • Family:

    Record Plus

  • Pole:

    2

  • Amp

    70

  • Volt:

    600

  • Phase:

    1

  • Category:

    Molded Case Circuit Breakers / 2-Pole

  • Connection:

    Bolt-On

  • Type:

    FBV

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    150kA@480V

Dimensions

  • Dimensions (HxWxD):

    8.75 x 4.5 x 5

  • Weight:

    7 lb

Standards

CSA Approved logo

Product Description - FBV26TE070RV - General Electrics Molded Case Circuit Breakers

For FBV26TE070RV, a molded case circuit breaker from General Electric's Record Plus series with the FBV type and FB100 frame, this product is designed for 2P (2-phase), 1PH applications. It features a 70A current capacity and a standard interrupting capacity of 150kA@480V. The Bolt-On design, combined with Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features, ensures reliable performance in your electrical system.
