SKHA26AT0800 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - SKHA26AT0800 - General Electrics Molded Case Circuit Breakers
-
Part Number:
SKHA26AT0800 -
Manufacturer:
-
Family:
Spectra Series -
Pole:
2 -
Amp
800 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
SKHA -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
50kA@480V
Dimensions
-
Dimensions (HxWxD):
24 x 11.75 x 11.25 -
Weight:
2 lb
Standards
Product Description - SKHA26AT0800 - General Electrics Molded Case Circuit Breakers

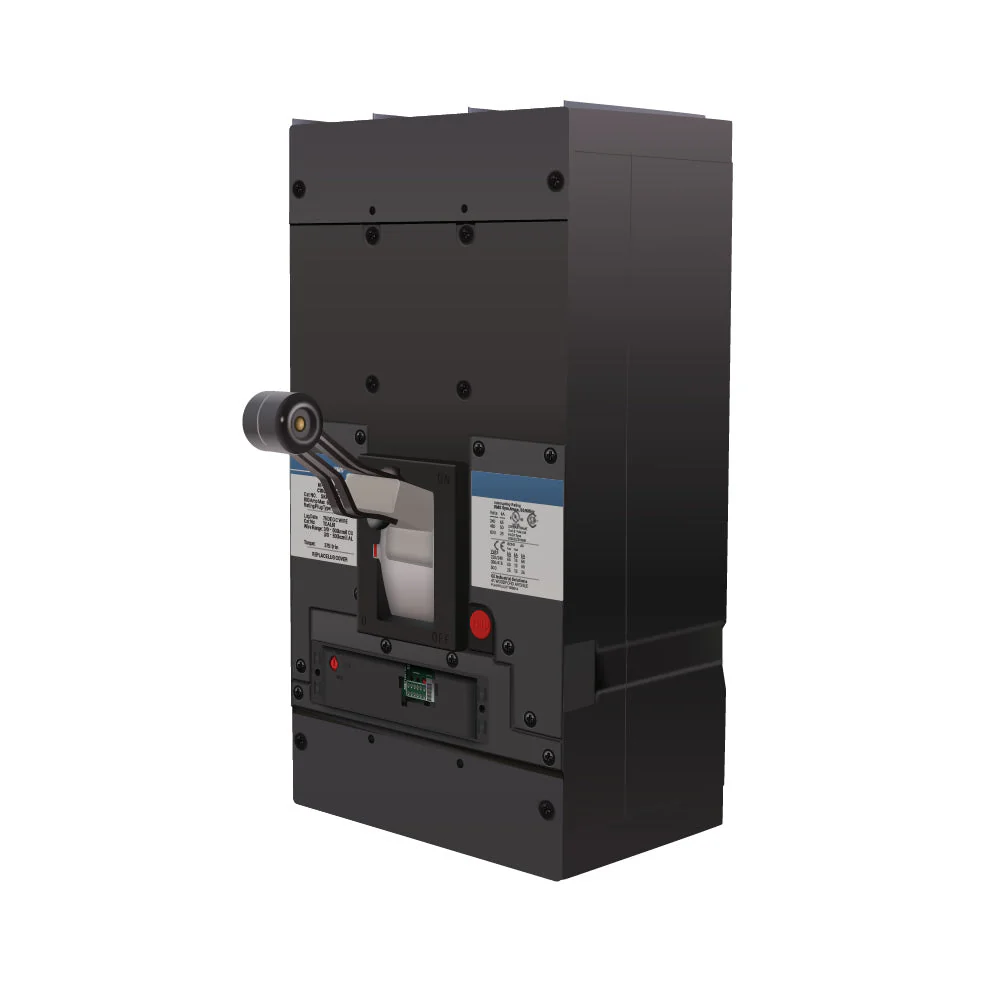

SKHA26AT0800 is part of the Spectra Series molded case circuit breakers from General Electric. It belongs to the SKHA type, designed for two-pole (2P), single-phase (1PH) applications with a current rating of 800A and a voltage rating of 600V. It has a standard interrupting capacity of 50kA@480V and is Bolt-On. This breaker is suitable for reverse fed applications, UL listed, and comes complete with an interchangeable RMS trip unit featuring LSI - Long-Time, Short-Time, and Instantaneous trip functions. Lugs are not included.
Original: $2,552.99
-70%$2,552.99
$765.90Product Information
