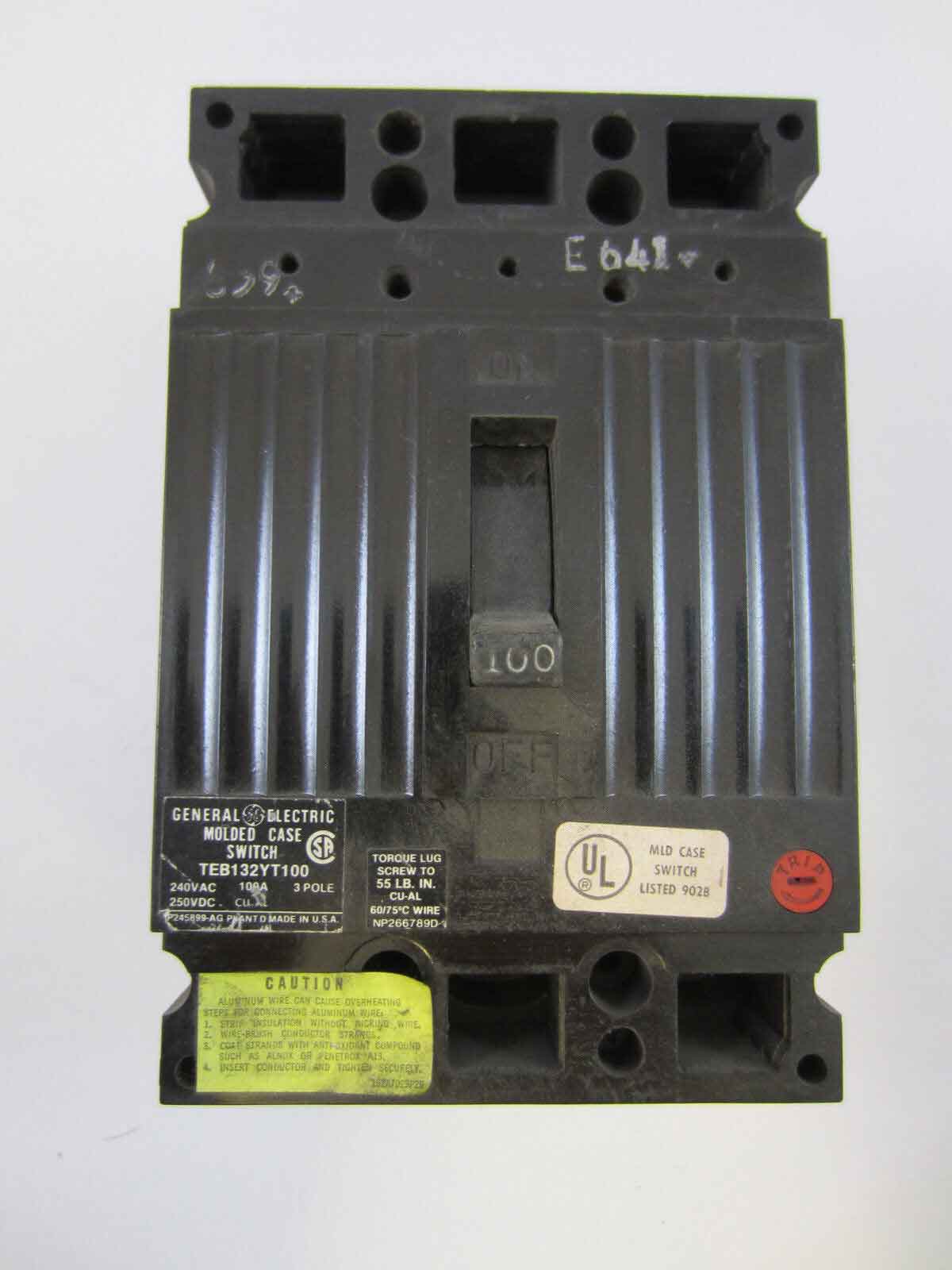

TEB132YT100 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TEB132YT100 - General Electrics Molded Case Circuit Breakers
-
Part Number:
TEB132YT100 -
Manufacturer:
-
Family:
E150 Line -
Pole:
3 -
Amp
100 -
Volt:
240 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TEB -
Functions:
NA - No Overcurrent Protection -
Protection:
Non-Automatic -
AIC Ratings:
14kA@240V
Dimensions
-
Dimensions (HxWxD):
6.75 x 4.25 x 4.75 -
Weight:
6 lb
Standards
Product Description - TEB132YT100 - General Electrics Molded Case Circuit Breakers
TEB132YT100 is part of the E150 Line molded case circuit breakers from General Electric. It belongs to the TEB type, designed for three-phase (3P) applications with a current rating of 100A and a voltage rating of 240V. With an interrupting capacity of 14kA@240V, it is Feed-Thru and Non-Automatic. This breaker includes a dummy trip, complete with line and load side lug terminals, and is categorized as a Non-Automatic switch.
