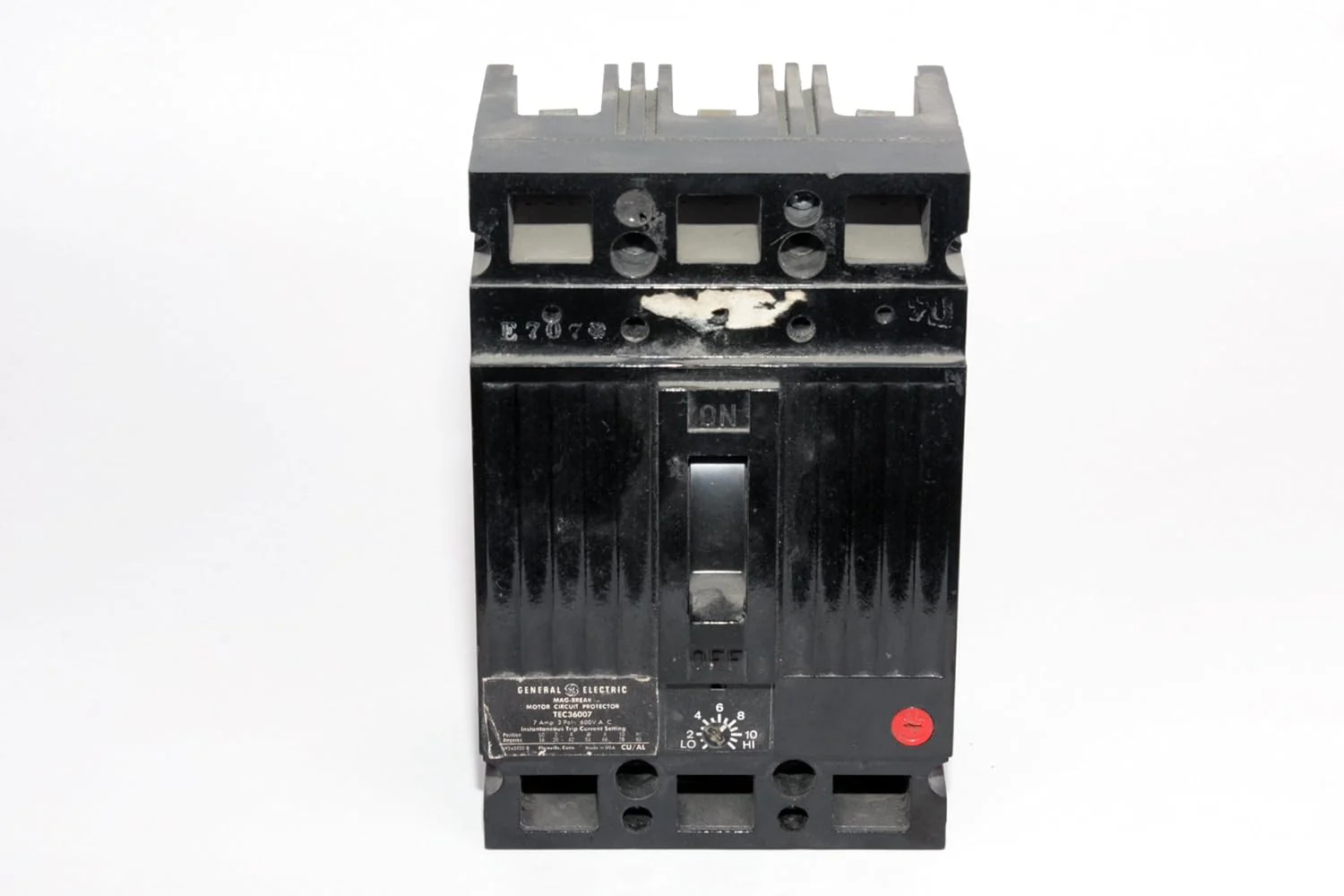

TEC36007 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TEC36007 - General Electrics Molded Case Circuit Breakers
-
Part Number:
TEC36007 -
Manufacturer:
-
Family:
Mag-Break -
Pole:
3 -
Amp
7 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TEC -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
10kA@480V
Dimensions
-
Dimensions (HxWxD):
3.37 x 4.12 x 6.31 -
Weight:
7 lb
Standards
Product Description - TEC36007 - General Electrics Molded Case Circuit Breakers
TEC36007 is another Mag-Break molded case circuit breaker from General Electric's TEC series. It belongs to the TEC type, designed for three-phase (3P) applications with a current rating of 7A and a voltage rating of 600V. With an interrupting capacity of 10kA@480V, it is Feed-Thru and UL listed, suitable for reverse fed applications. This breaker comes complete with I - Instantaneous protection only and line and load side lug terminals. It is a Magnetic Only MCP (Motor Circuit Protector) with a magnetic range of 18-90A.
Original: $711.99
-70%$711.99
$213.60Product Information
