TFJ236080WL - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TFJ236080WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TFJ236080WL -
Manufacturer:
-
Family:
F225 Line -
Pole:
3 -
Amp
80 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TFJ -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
22kA@480V
Dimensions
-
Dimensions (HxWxD):
3.81 x 4.12 x 10.12 -
Weight:
15 lb
Standards
Product Description - TFJ236080WL - General Electrics Molded Case Circuit Breakers

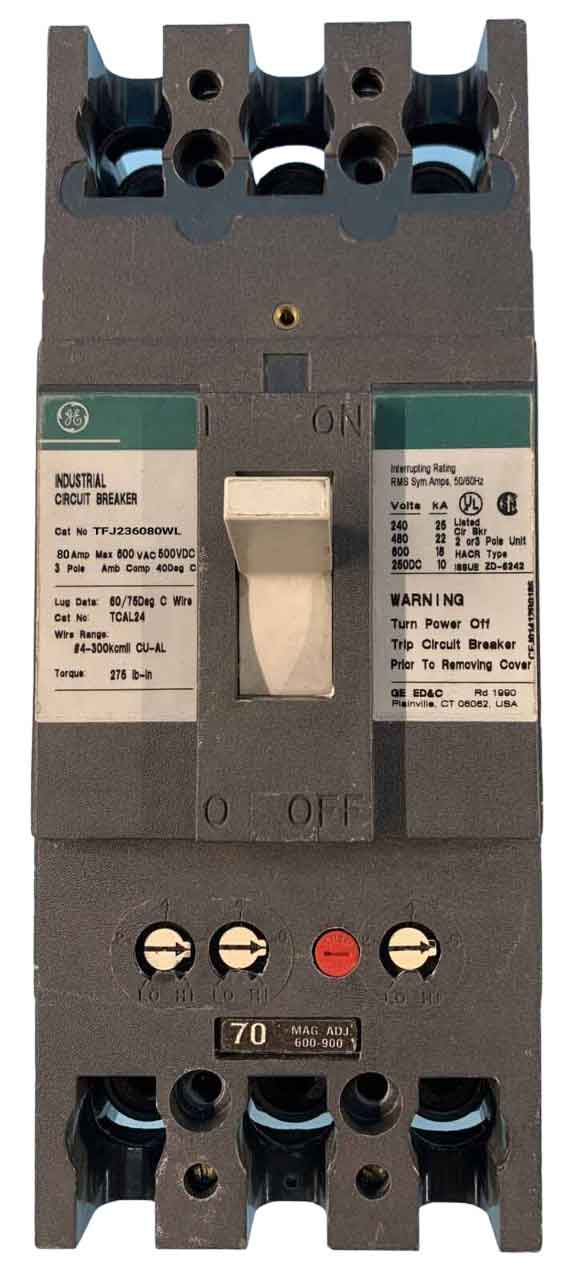

Another offering from the F225 Line, the TFJ236080WL is a 3-pole, 80A molded case circuit breaker with a standard interrupting capacity of 22kA@480V. It comes complete with line & load side lug terminals and a non-interchangeable trip unit. Suitable for reverse feed, it operates at 40ºC, providing reliable Feed-Thru protection.
