THJK636250 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - THJK636250 - General Electrics Molded Case Circuit Breakers
-
Part Number:
THJK636250 -
Manufacturer:
-
Family:
J600 Line -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
THJK -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3.81 x 8.25 x 10.12 -
Weight:
17.54 lb
Standards
Product Description - THJK636250 - General Electrics Molded Case Circuit Breakers

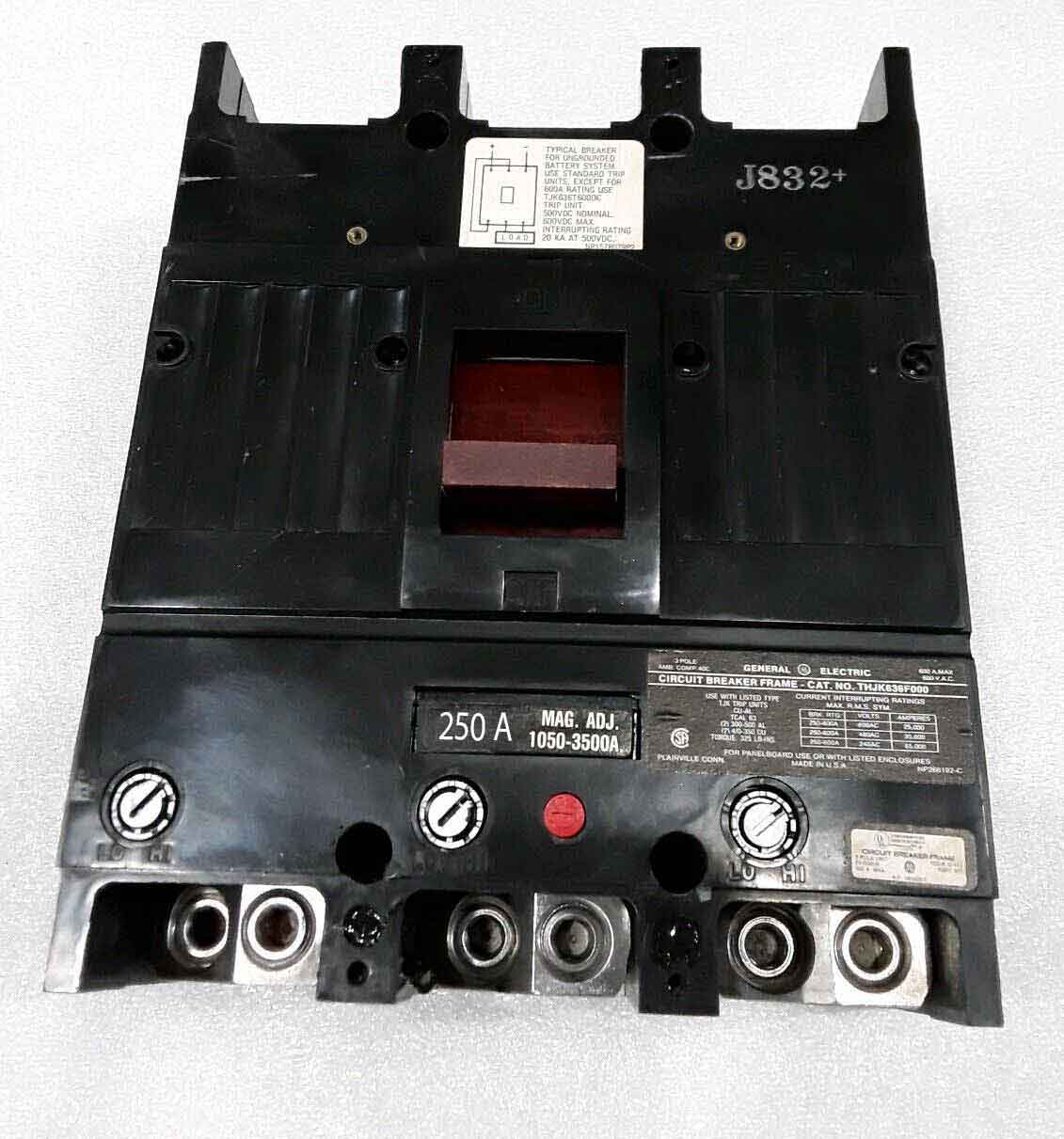

The THJK636250, part of General Electric's J600 Line, is a Bolt-On molded case circuit breaker featuring a Type THJK classification. With a 3P, 3PH configuration, it provides a robust 250A current rating at 600V, ensuring effective electrical protection. This breaker boasts a high interrupting capacity of 35kA@480V and comes complete with load side lug terminals for easy installation. The inclusion of an interchangeable trip unit adds flexibility to the circuit protection, making it suitable for various applications with demanding requirements. Operating at 40ºC, its Bolt-On design and Thermal Magnetic technology contribute to its high performance.
