THKMA836500 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - THKMA836500 - General Electrics Molded Case Circuit Breakers
-
Part Number:
THKMA836500 -
Manufacturer:
-
Family:
K1200 Line -
Pole:
3 -
Amp
500 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
THKMA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
5.5 x 8.25 x 15.5 -
Weight:
26.71 lb
Standards
Product Description - THKMA836500 - General Electrics Molded Case Circuit Breakers

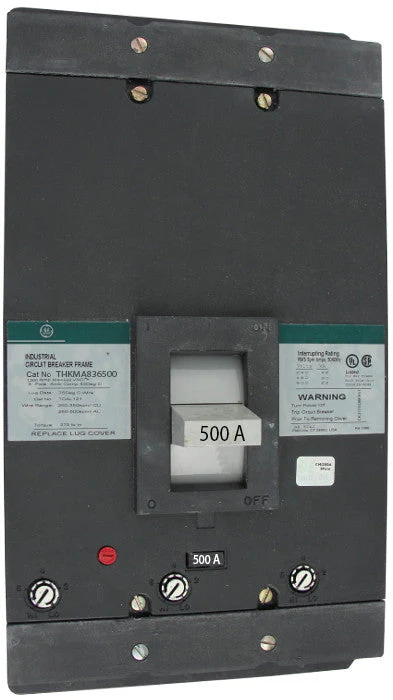

The THKMA836500 is a Bolt-On molded case circuit breaker from General Electric's K1200 Line, designed for reliable circuit protection in high-demand environments. Classified as Type THKMA, it features a 3P, 3PH configuration with a robust 500A current rating at 600V. Boasting a high interrupting capacity of 35kA@480V, this breaker operates efficiently at 40ºC. It comes complete with interchangeable trip functions, including Long-Time and Instantaneous trip functions, and load side lug terminals, ensuring ease of installation and flexibility in circuit protection.
