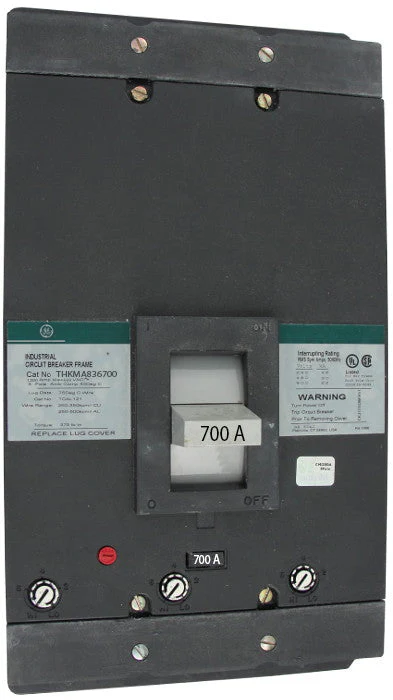

THKMA836700 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - THKMA836700 - General Electrics Molded Case Circuit Breakers
-
Part Number:
THKMA836700 -
Manufacturer:
-
Family:
K1200 Line -
Pole:
3 -
Amp
700 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
THKMA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
5.5 x 8.25 x 15.5 -
Weight:
42.29 lb
Standards
Product Description - THKMA836700 - General Electrics Molded Case Circuit Breakers
The THKMA836700 is designed for robust electrical protection, belonging to General Electric's K1200 Line. This Bolt-On molded case circuit breaker features a Type THKMA classification, a 3P, 3PH configuration, and delivers a substantial 700A current rating at 600V. Boasting a high interrupting capacity of 35kA@480V, this breaker operates efficiently at 40ºC. It comes complete with interchangeable trip functions, including Long-Time and Instantaneous trip functions, and load side lug terminals, ensuring ease of installation and flexibility in circuit protection.
