TKC361200L - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TKC361200L - General Electrics Molded Case Circuit Breakers
-
Part Number:
TKC361200L -
Manufacturer:
-
Family:
Mag-Break -
Pole:
3 -
Amp
1200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TKC -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
30kA@480V
Dimensions
-
Weight:
36 lb
Standards
Product Description - TKC361200L - General Electrics Molded Case Circuit Breakers

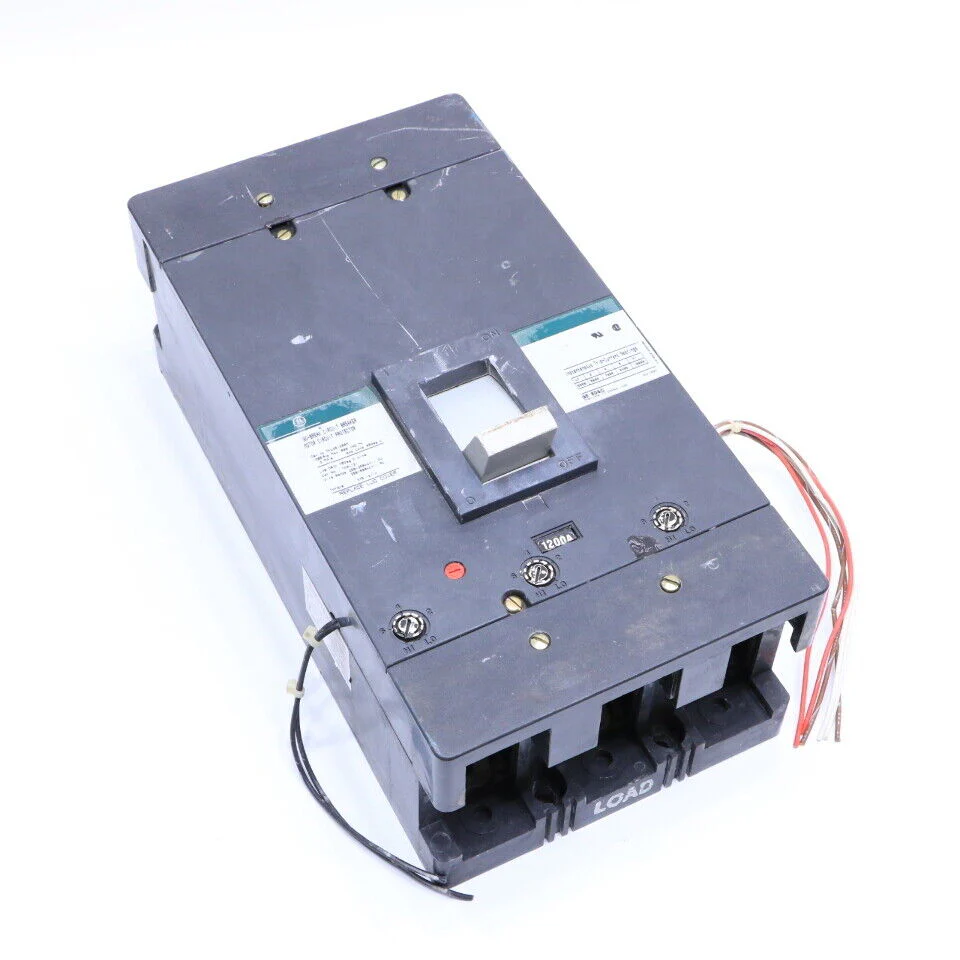

The TKC361200L by General Electric is a Mag-Break molded case circuit breaker with a 3P, 3PH configuration. Rated for 1200A at 600V, it features a standard interrupting capacity of 30kA at 480V. This Feed-Thru breaker, UL listed, is complete with I - Instantaneous protection only and line & load side lug terminals. The magnetic range is 3000-6000A, making it suitable for various motor circuit protection applications.
