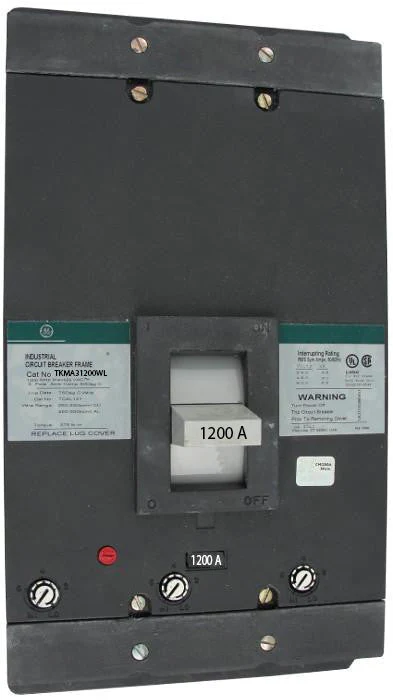

TKMA31200WL - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TKMA31200WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TKMA31200WL -
Manufacturer:
-
Family:
K1200 Line -
Pole:
3 -
Amp
1200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TKMA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
30kA@480V
Dimensions
-
Dimensions (HxWxD):
5.5 x 8.25 x 15.5 -
Weight:
51.87 lb
Standards
Product Description - TKMA31200WL - General Electrics Molded Case Circuit Breakers
Continuing within the K1200 Line, this TKMA type circuit breaker offers a robust 1200A rating with a 3-pole, 3-phase configuration. Operating at 600V, it delivers a standard interrupting capacity of 30kA at 480V. The 40ºC Feed-Thru design ensures flexibility in installation, and it comes complete with interchangeable trip options, providing both Long-Time (LI) and Instantaneous trip functions. Featuring line & load side lug terminals, this Thermal Magnetic molded case circuit breaker is well-suited for demanding industrial environments.
