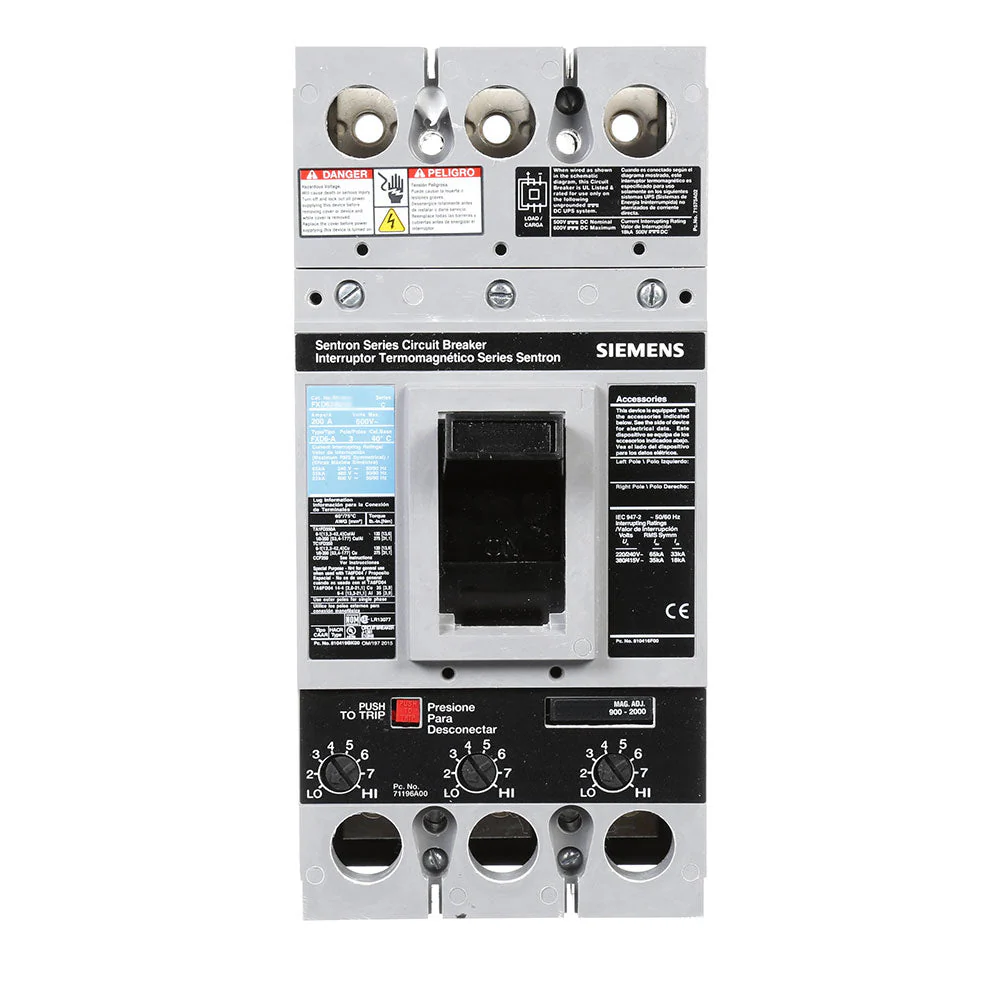

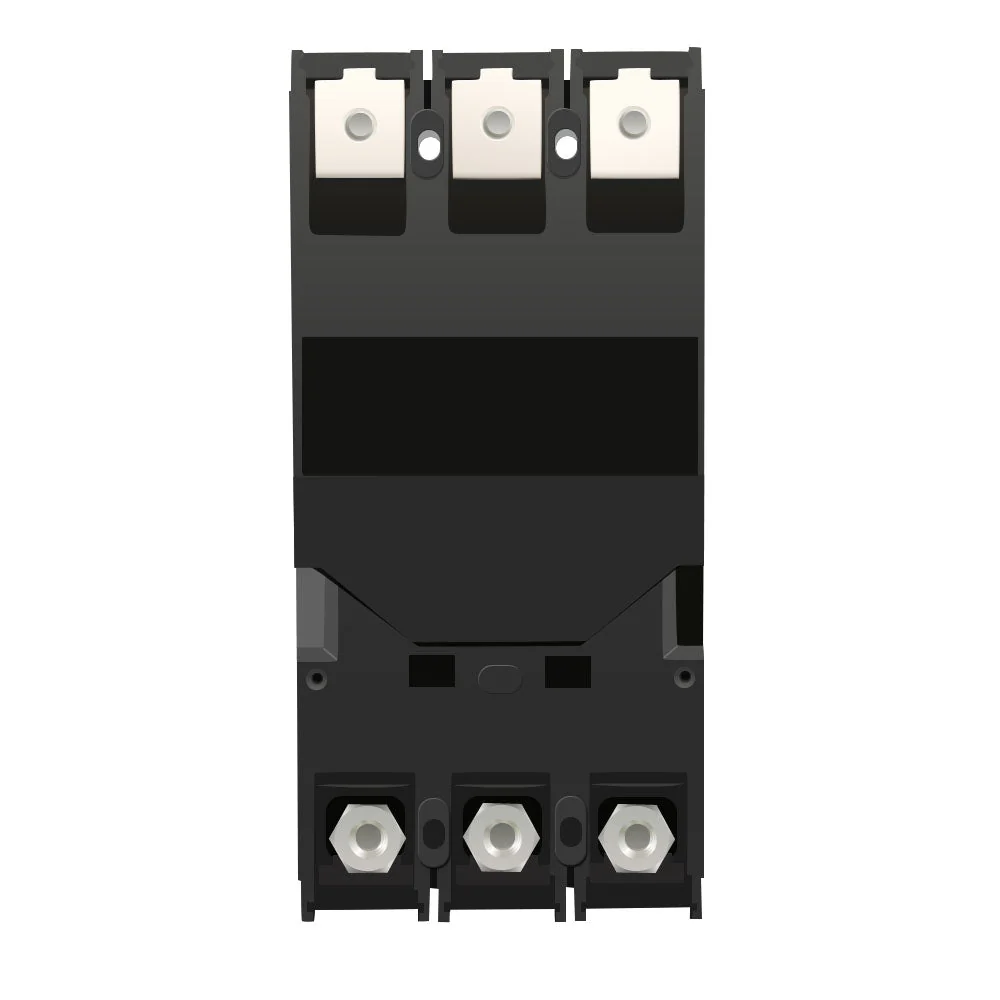

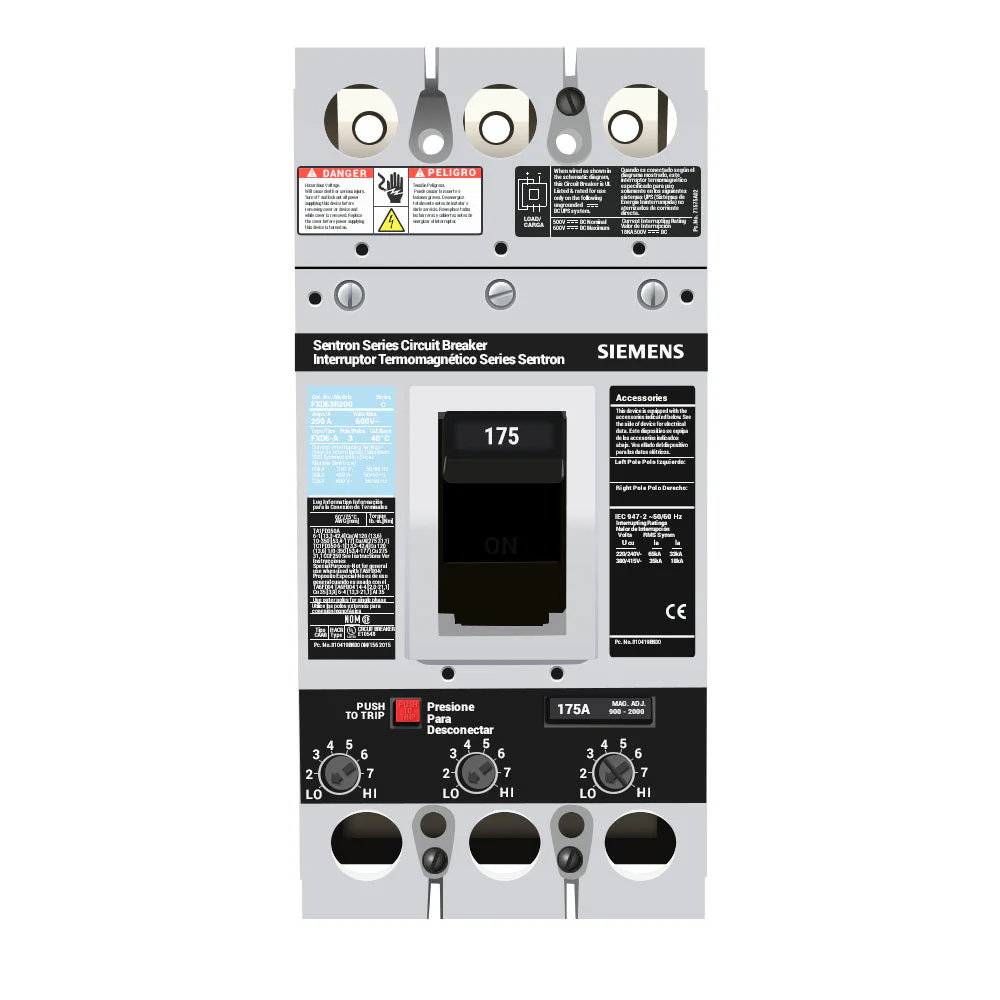

FXD63B175L - Siemens - 175 Amp Molded Case Circuit Breaker

FXD63B175L - Siemens 175 Amp 3 Pole 600 Volt Bolt-On Molded Case Circuit Breaker

Siemens, Sentron Series, type FXD, 3P, 3PH, 175A, 600V, 35kA@480V, standard interrupting capacity, 40 degree C, bolt-on, UL listed for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic molded case circuit breakers

• Manufacturer: Siemens
• Type: FXD
• Family: Sentron Series
• UL Listed

Interrupting Rating

• AIC Rating: 22kA@600V
• AIC Rating: 35kA@480V

Specifications

• FD Frame
• 3 Pole
• 175 Amp
• 600 Volt
• 3 Phase
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous
• Dimensions (H x W x L): 9.5" x 4.5" x 4"
