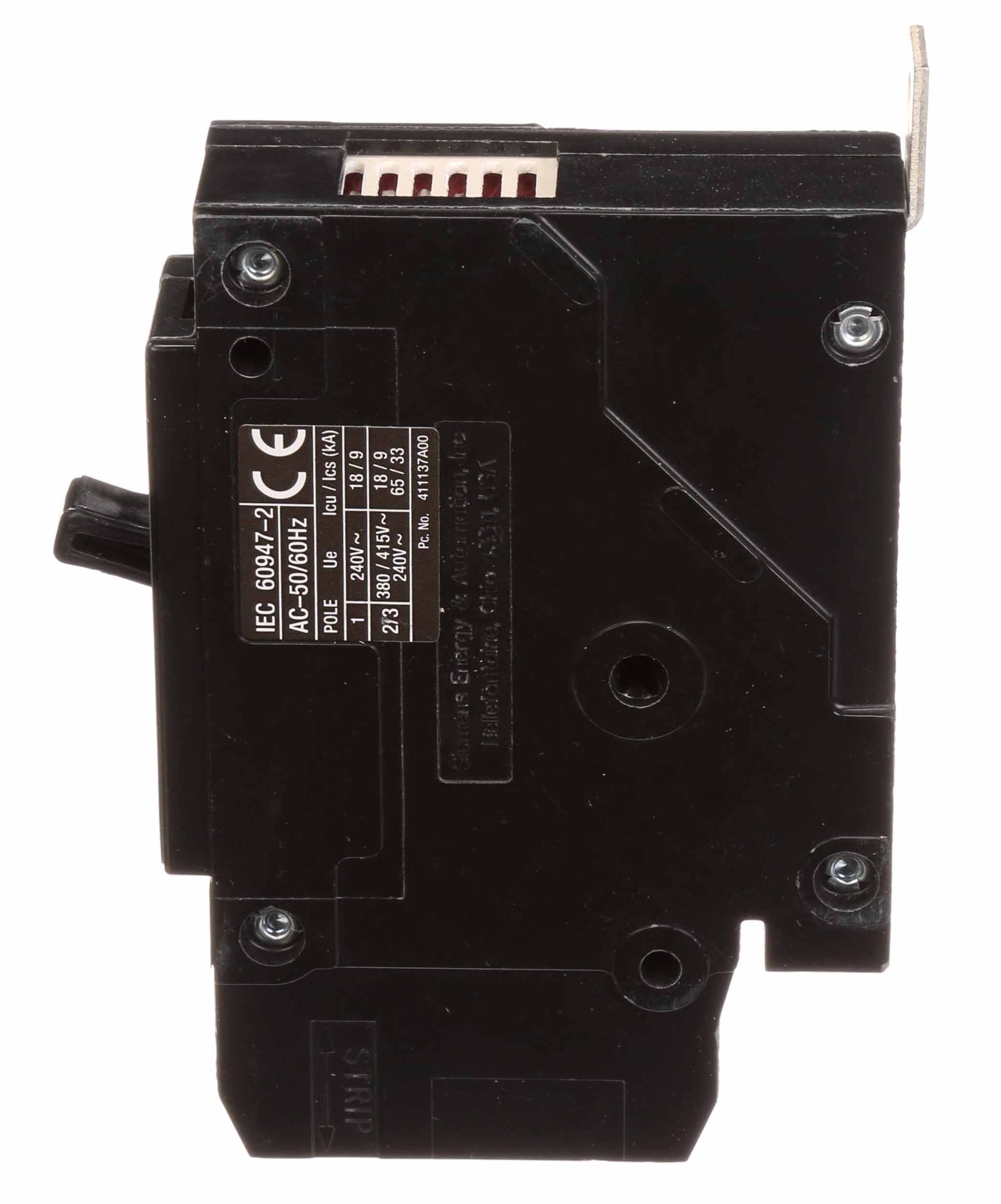

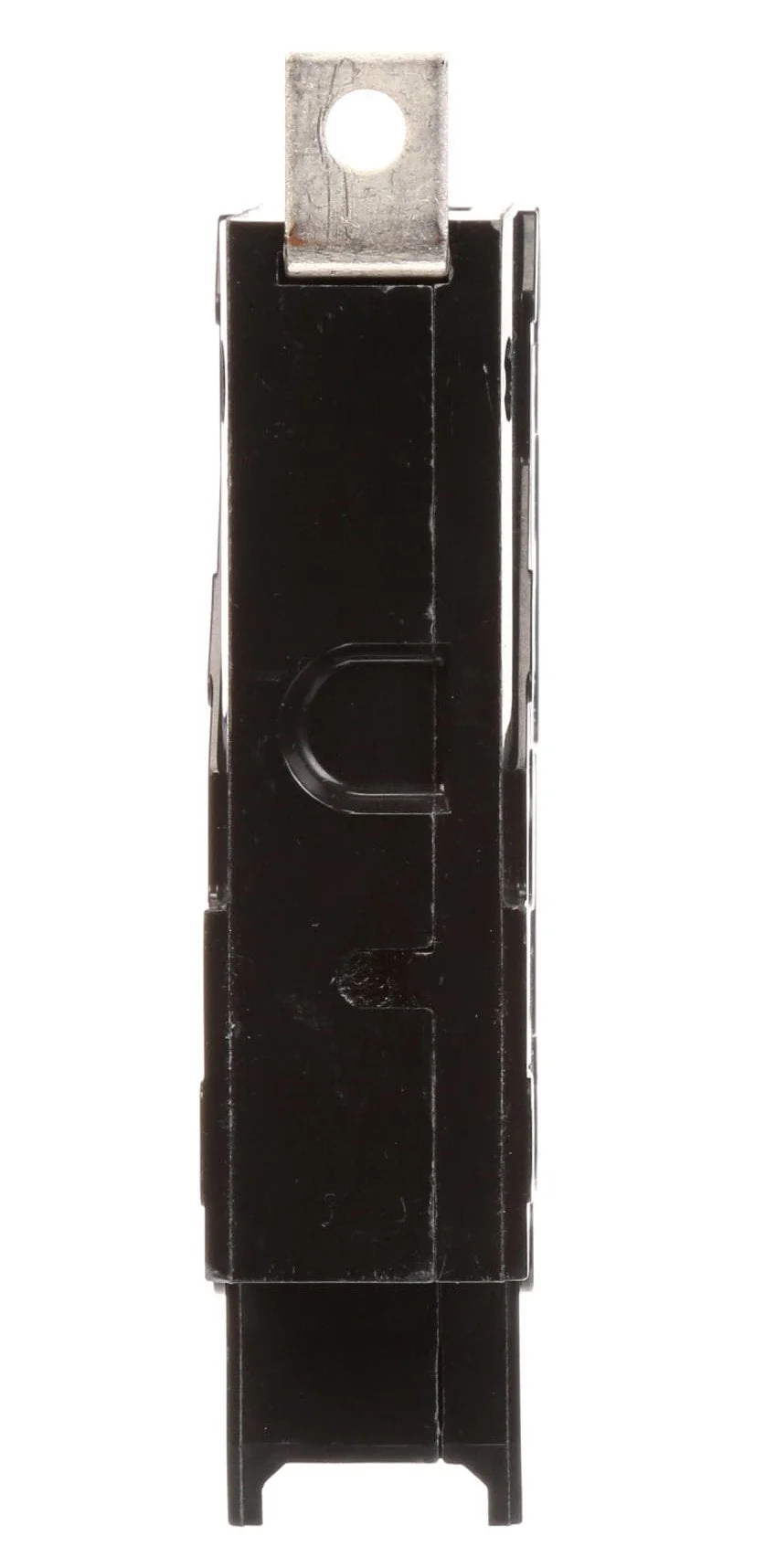

BQD130 - Siemens - 30 Amp Molded Case Circuit Breaker
BQD130 - Siemens Bolt-On Molded Case Circuit Breaker
Siemens / ITE Bolt-On Circuit Breaker Its Compact And Easy to Install one pole molded case circuit breaker features a thermal magnetic over current protection system it has a voltage rating of 120/277 Vac 125 Vdc current rating of 30 amps at 40 deg c and frequency rating of 60 Hz it has an interrupt current rating of 65 kiloampere At 120 Vac circuit breaker is designed with a bolt-on connection type with a terminal load lug the circuit breaker has a BQD type of frame and circuit breaker is Ul listed csa certified.
Specifications:
- Product Lifecycle (PLM): PM300:Active Product
- Net Weight (lb): 0.589 lb
- Product Group: 5361
- Compliance with the substance restrictions according to RoHS directive: Since: 07/01/2006
- Authentic Siemens Product
- Voltage Rating: 277 Volt
Original: $54.71
-70%$54.71
$16.41Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BQD130 - Siemens Bolt-On Molded Case Circuit Breaker
Siemens / ITE Bolt-On Circuit Breaker Its Compact And Easy to Install one pole molded case circuit breaker features a thermal magnetic over current protection system it has a voltage rating of 120/277 Vac 125 Vdc current rating of 30 amps at 40 deg c and frequency rating of 60 Hz it has an interrupt current rating of 65 kiloampere At 120 Vac circuit breaker is designed with a bolt-on connection type with a terminal load lug the circuit breaker has a BQD type of frame and circuit breaker is Ul listed csa certified.
Specifications:
- Product Lifecycle (PLM): PM300:Active Product
- Net Weight (lb): 0.589 lb
- Product Group: 5361
- Compliance with the substance restrictions according to RoHS directive: Since: 07/01/2006
- Authentic Siemens Product
- Voltage Rating: 277 Volt
