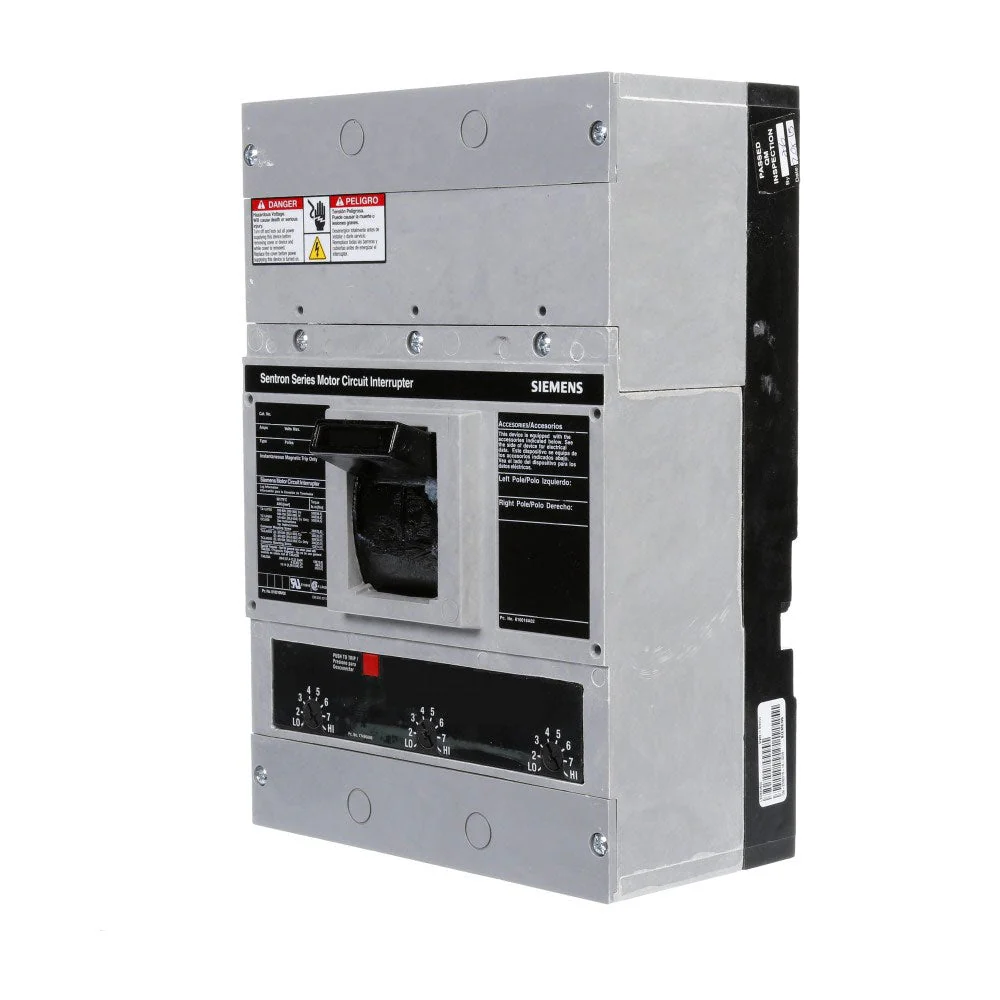

HLD63B500 - Siemens - Molded Case Circuit Breaker
HLD63B500 - Siemens 500 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
Siemens, Sentron Series, type HLD, 3P, 3PH, 500A, 600V, 65kA@480V, high interrupting capacity, feed-thru, 40 degree C, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers
- Manufacturer: Siemens
- Family: Sentron Series
- Type: HLD
Interrupting Rating
- AIC Rating: 65kA@480V
- AIC Rating: 100kA@240VAC
Specifications
- LD Frame
- 3 Pole
- 500 Amp
- 600 Volt
- 3 Phase
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous
- Dimensions (H x W x L): 11" x 7.5" x 4"
Select Condition
From $601.50
Original: $2,004.99
-70%HLD63B500 - Siemens - Molded Case Circuit Breakerā
$2,004.99
$601.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HLD63B500 - Siemens 500 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
Siemens, Sentron Series, type HLD, 3P, 3PH, 500A, 600V, 65kA@480V, high interrupting capacity, feed-thru, 40 degree C, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers
- Manufacturer: Siemens
- Family: Sentron Series
- Type: HLD
Interrupting Rating
- AIC Rating: 65kA@480V
- AIC Rating: 100kA@240VAC
Specifications
- LD Frame
- 3 Pole
- 500 Amp
- 600 Volt
- 3 Phase
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous
- Dimensions (H x W x L): 11" x 7.5" x 4"
