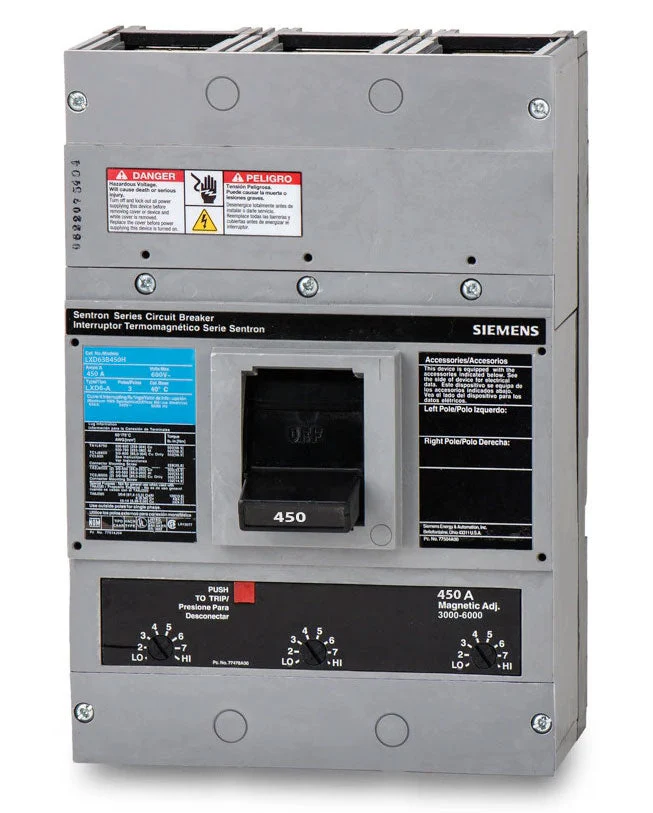

LXD63B450H - Siemens - Molded Case Circuit Breaker
Overview
Product Specifications - LXD63B450H - Siemens Breakers Molded Case Circuit Breakers
-
Part Number:
LXD63B450H -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
450 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
LXD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
11" x 7.5" x 4"
-
Weight:
17.8 lbs
Standards
Product Description - LXD63B450H - Siemens Breakers Molded Case Circuit Breakers
Siemens, Sentron Series, type LXD, 3P, 3PH, 450A, 600V, 35kA@480V, standard interrupting capacity, bolt-on, 40 degree C, 100% rated, UL listed for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, thermal magnetic, molded case circuit breakers.
