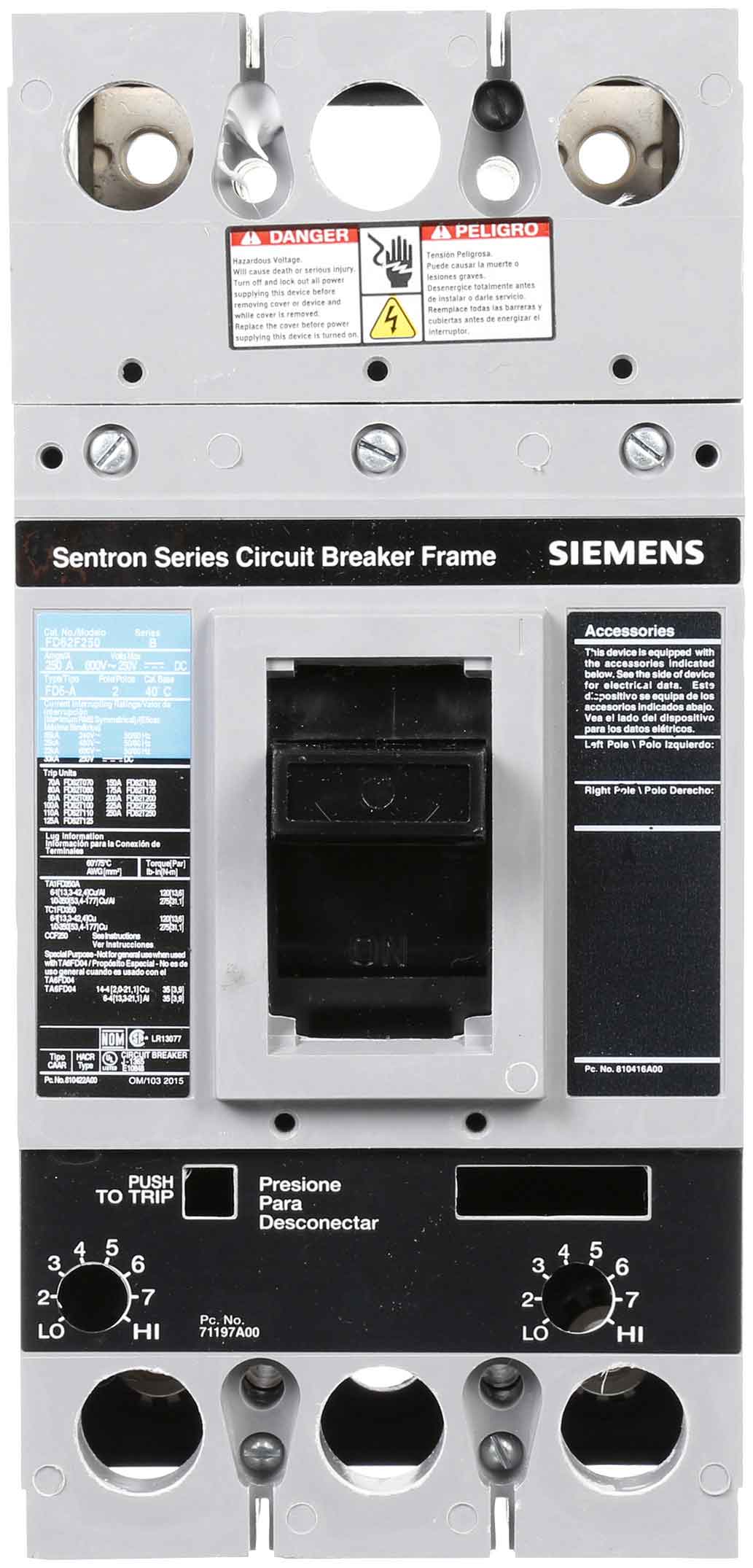

FD62F250 - Siemens - Molded Case
Overview
Product Specifications - FD62F250 Siemens Molded Case
-
Part Number:
FD62F250 -
Manufacturer:
-
Family:
Sentron Series -
Pole:
2 -
Amp
250 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
FD Frame -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
4.5 x 9.5 x 4. -
Weight:
5.98
Standards
Product Description - FD62F250 Siemens Molded Case
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. FRAME FOR FD FRAME WITH STANDARD BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 250A 2-POLE BREAKER (22KAIC AT 600V) (35KAIC AT 480V). SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE: 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL). DIMENSIONS (W x H x D) IN: 4.5 x 9.5 x 4.
