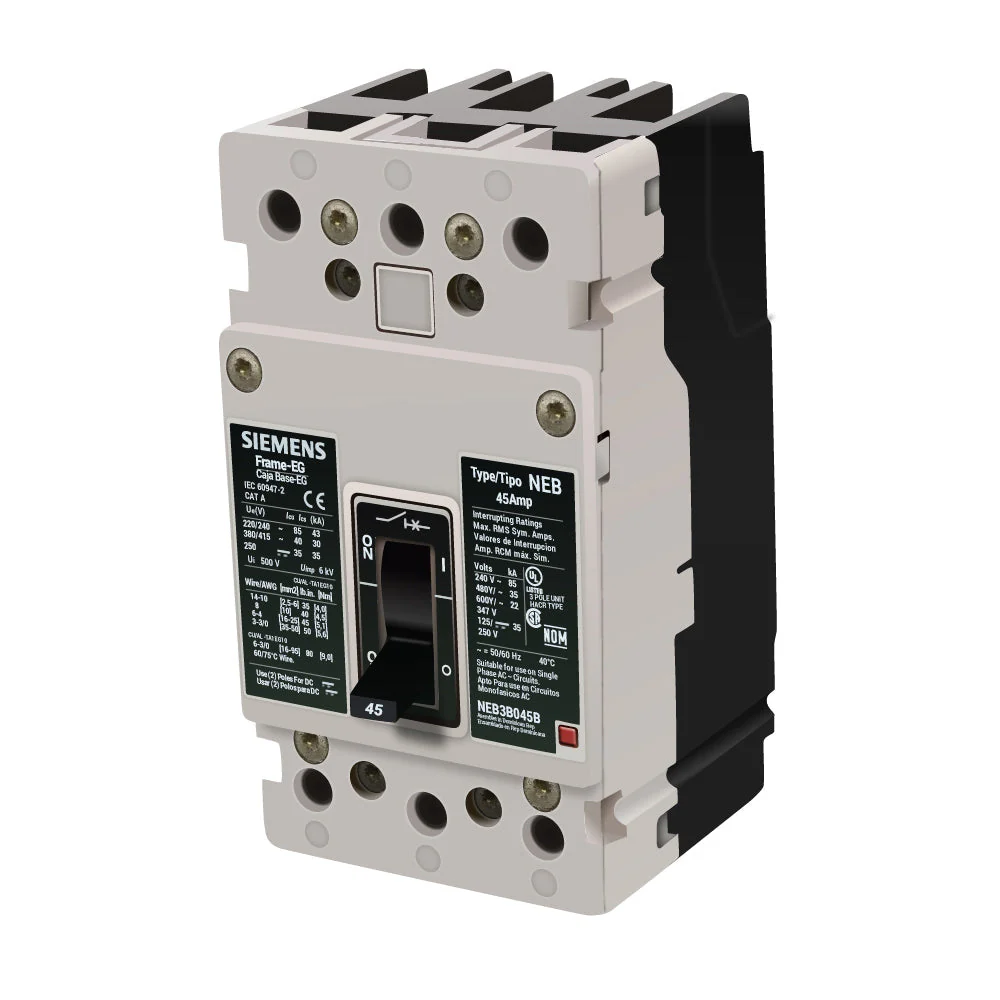

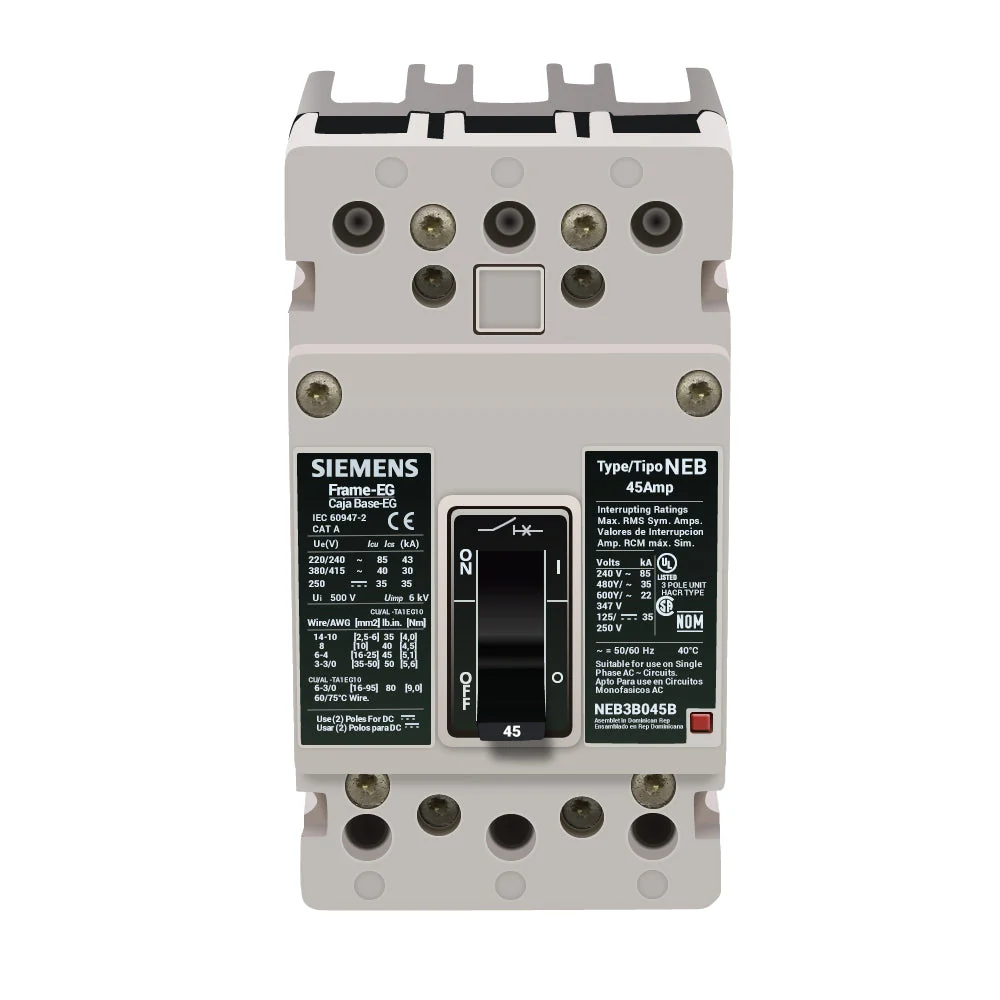

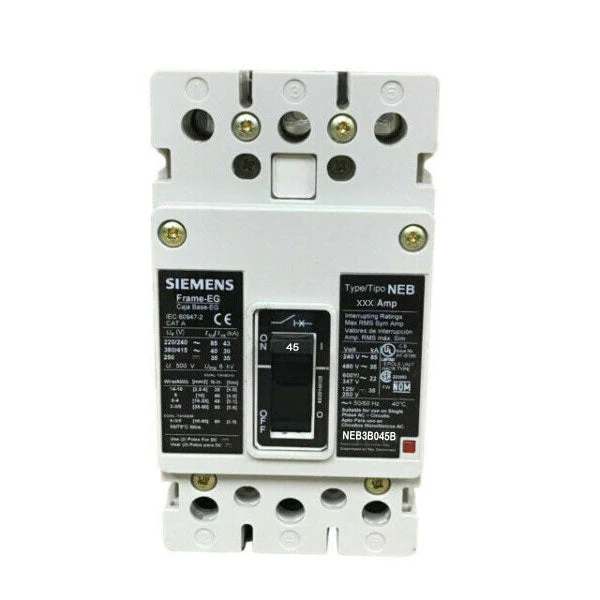

NEB3B045B - Siemens - Molded Case
Overview
Product Specifications - NEB3B045B Siemens Molded Case
-
Part Number:
NEB3B045B -
Manufacturer:
-
Family:
NEB Series -
Pole:
3 -
Amp
45 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
NEB -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3 x 5.5 x 3. -
Weight:
2.56
Standards
Product Description - NEB3B045B Siemens Molded Case
SIEMENS LOW VOLTAGE PANELBOARD MOUNT EG FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. UL LISTED NEB FRAME WITH STANDARD BREAKING CAPACITY. 45A 3-POLE (22KAIC AT 600Y/347V) (35KAIC AT 480V). SPECIAL FEATURES: LOAD SIDE LUGS ONLY (TA1EG10) WIRE RANGE: 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 3 x 5.5 x 3.
