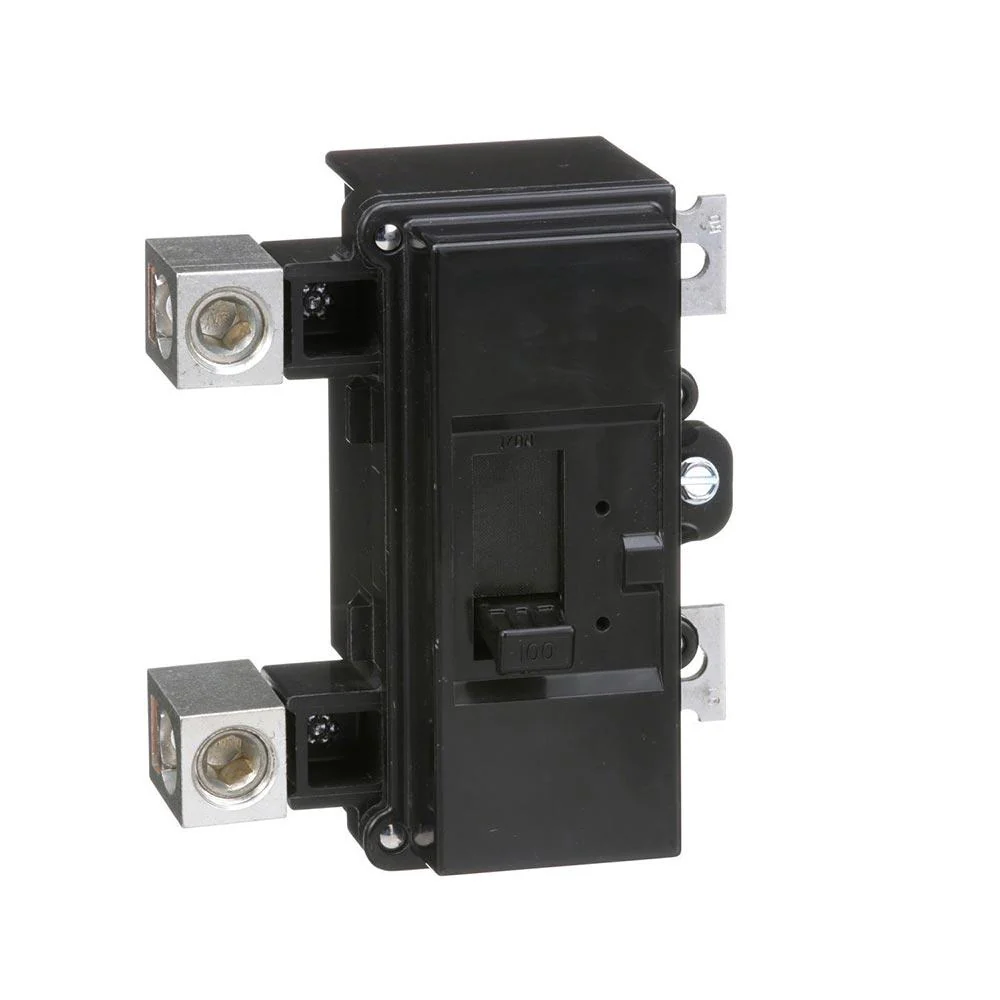

QOM2175VH - Square D - 175 Amp Main Circuit Breaker

QOM2175VH - Square D Bolt-On Circuit Breaker

Square D Bolt-On Circuit Breaker It is a Compact easy to install two pole 175 ampere lug terminal suitable for use as bolt-in main breaker very high interrupting capacity bolt-on thermal magnetic molded case circuit breakers. For Use With QO load centers and Homeline load centers.

Specifications:

• Alternate Part No. : QOM-2175VH
• Cat. No. : QOM2175VH
• UPC : 785901848585
• Thermal Magnetic Main
• Number Of Pole : 2 Pole
• Voltage Rating : 120/240 Vac At 50/60 Hz (Ul/Csa)
• Amperage Rating : 175A
• No. of Phase : 1 Phase
• Interrupting Rating: 22 Kiloampere
• Lug Terminal
• Wire Size : 4 Awg To 300 Kcmil (Aluminum/Copper)
• Approval Ul
• Used On Qo[R] Load Center
• Qo Brand
• Qom2-Vh Model
• Authentic Schneider Electric / Square D Product
