LAL36300MB - Square D - Molded Case Circuit Breakers

Overview

Product Specifications - LAL36300MB - Square D Molded Case Circuit Breakers

Dimensions

Standards

Product Description - LAL36300MB - Square D Molded Case Circuit Breakers

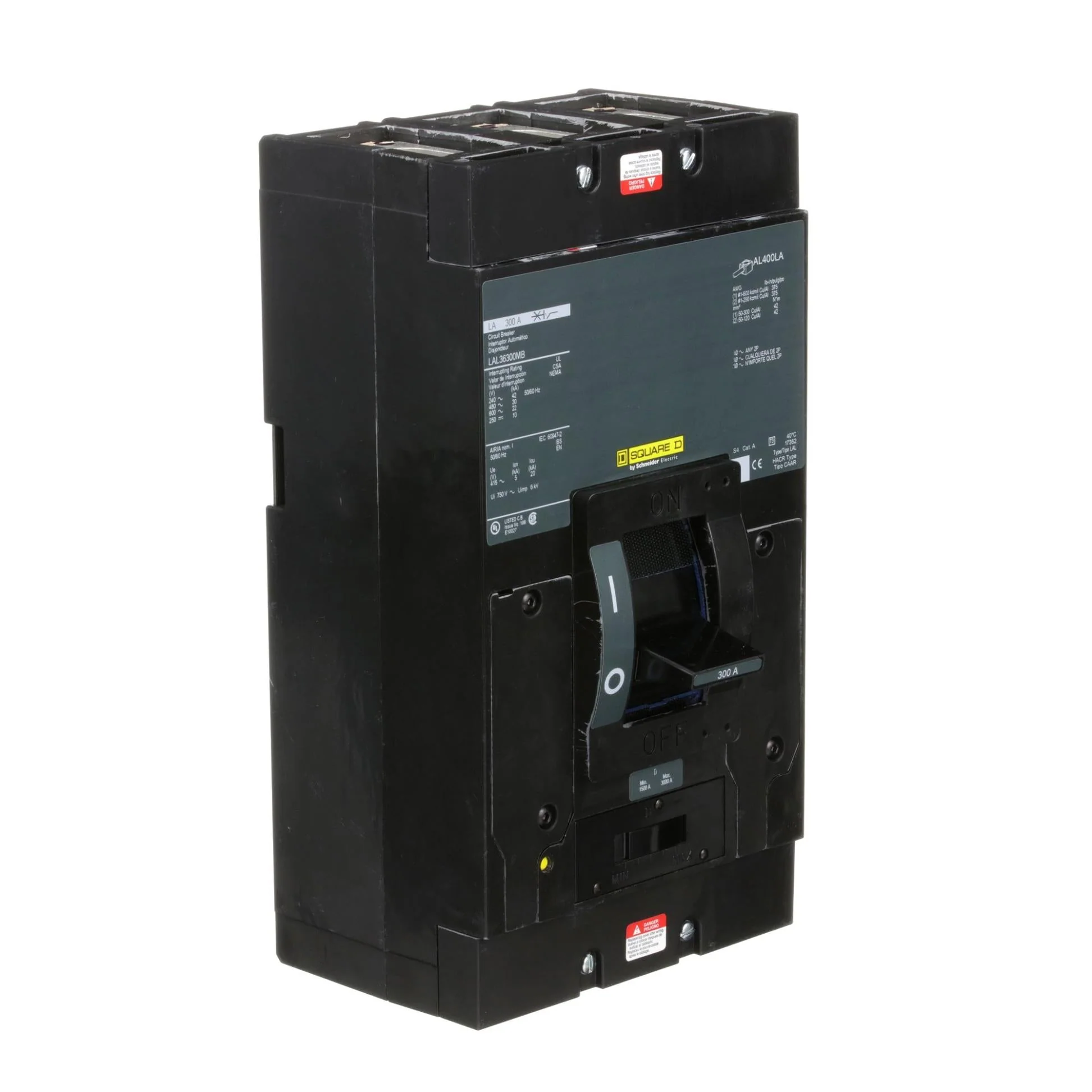

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 300A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker MB suffix indicates a shorter handle so that a panel door can close. LA breakers are UL 489, CSA, IEC certified.
