LRD086 - Square D - Overload Relay
Overview
Product Specifications - LRD086 - Square D Overload Relay
-
Part Number:
LRD086 -
Manufacturer:
-
Family:
TeSys D -
Amp:
4
-
Category:
-
Type:
LRD
Dimensions
-
Dimensions (HxWxD):
2.60 x 1.77 x 2.76 -
Weight:
0.27 lbs
Standards
Product Description - LRD086 - Square D Overload Relay

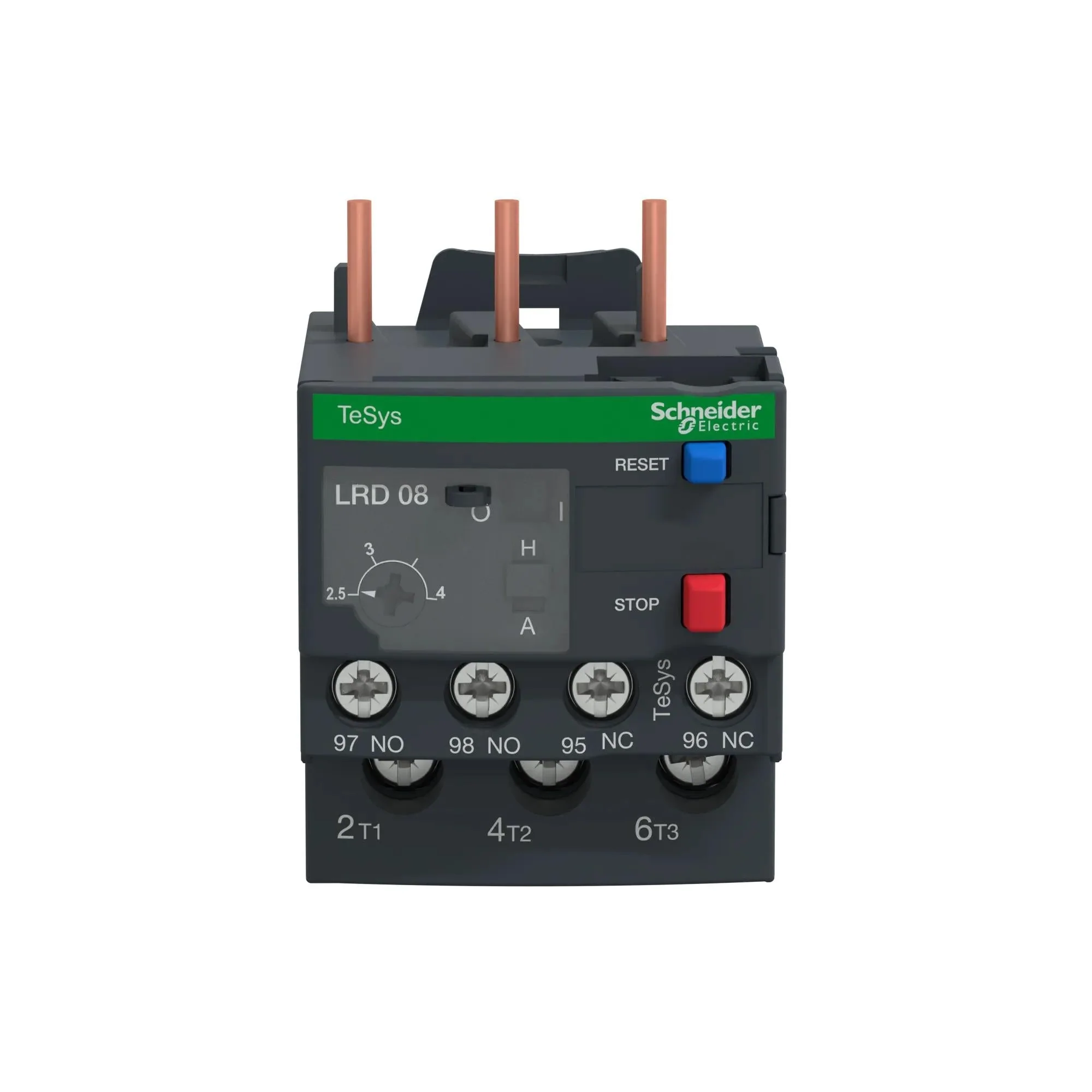

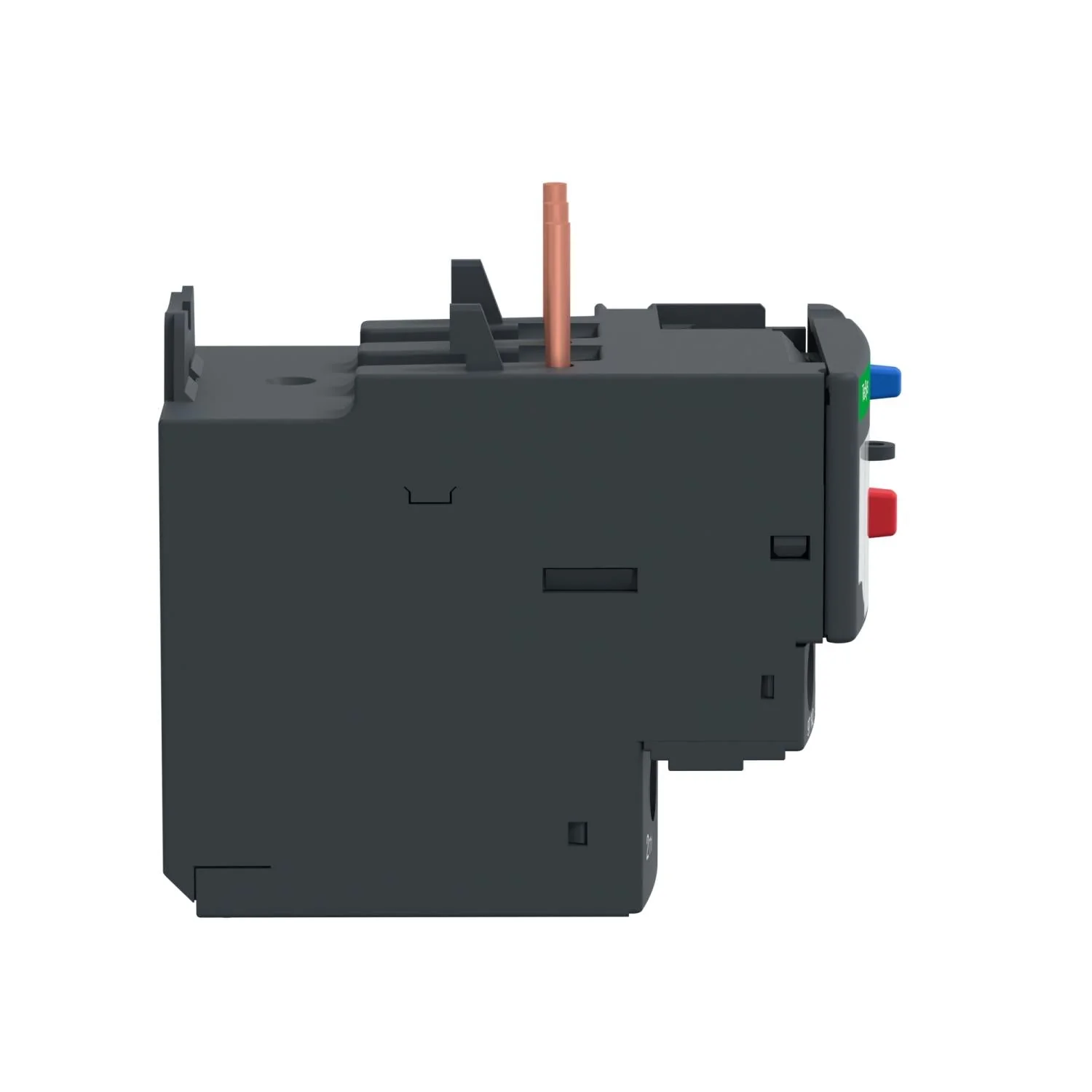

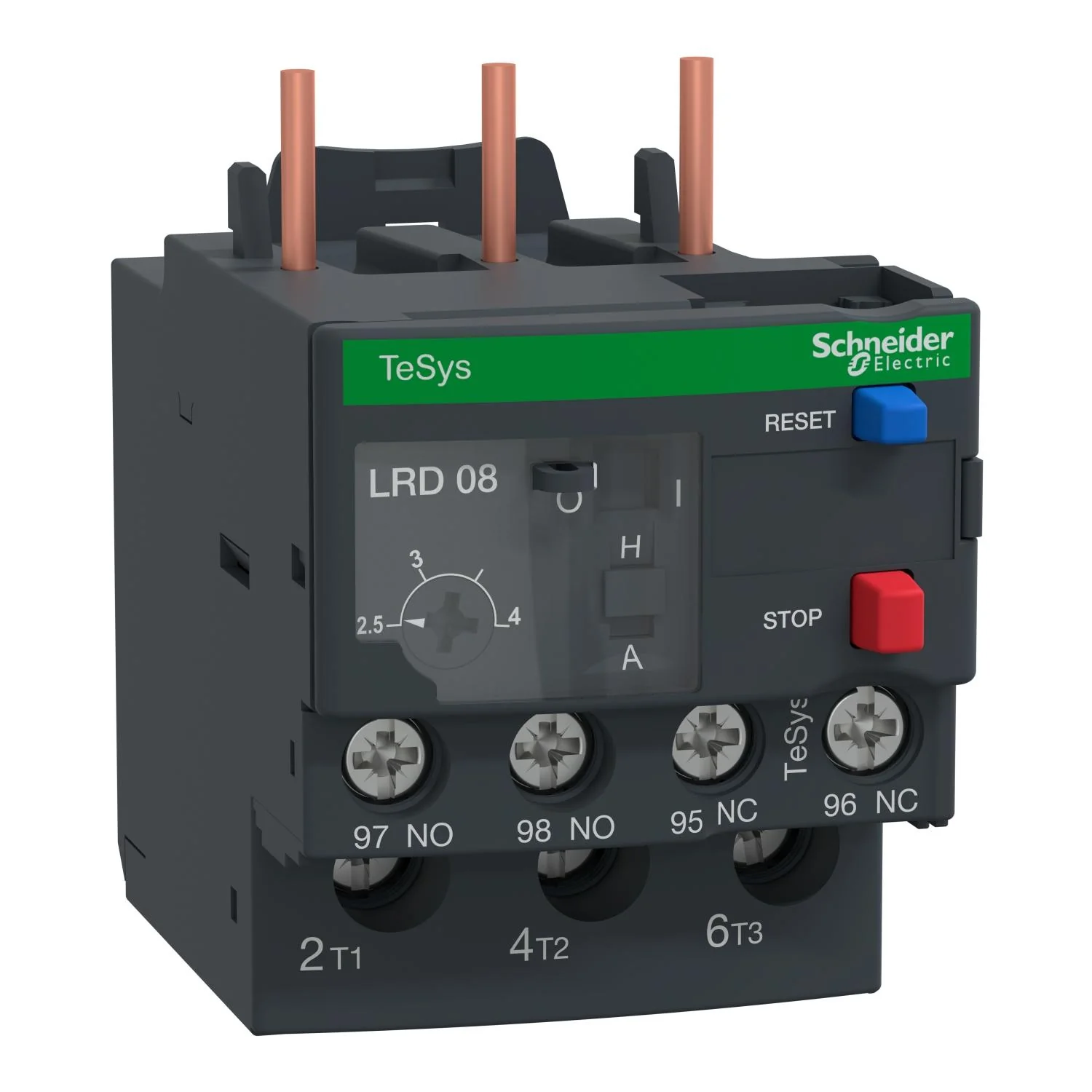

TeSys LRD thermal overload relay, 4A/690V, thermal setting range 2.5-4A, tripping class 10A, for protection of 3-phase motors 1.1-1.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Original: $91.99
-70%$91.99
$27.60Product Information
