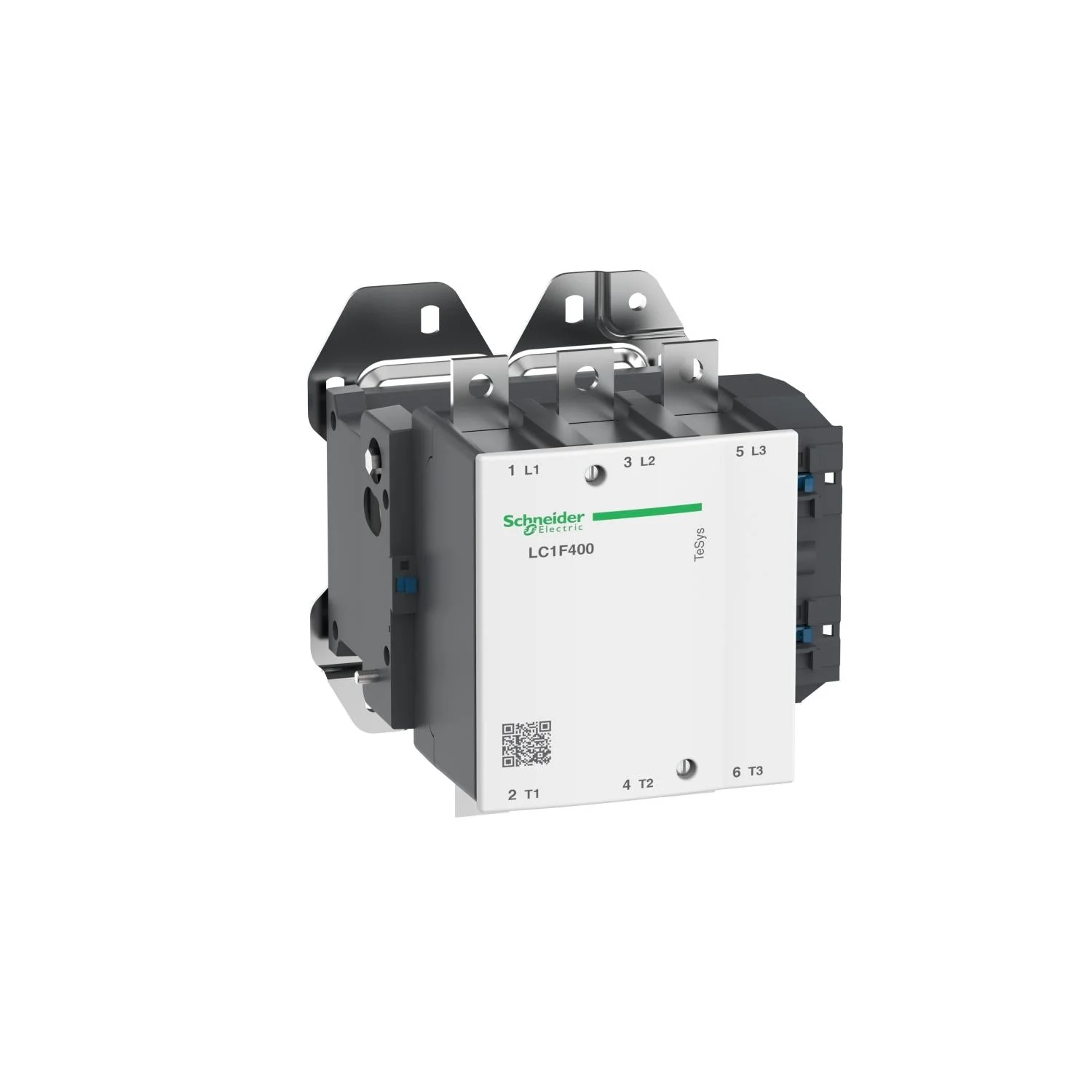

LC1F400F7 - Square D - Contactor
Overview
Product Specifications - LC1F400F7 - Square D Contactor
-
Part Number:
LC1F400F7 -
Manufacturer:
-
Family:
TeSys F -
Pole:
3 -
Amp:
500 -
Volt:
110 -
Phase:
3
-
Category:
-
Type:
LC1F
Dimensions
-
Dimensions (HxWxD):
8.11 x 8.39 x 8.62 -
Weight:
20.06 lbs
Standards
Product Description - LC1F400F7 - Square D Contactor
TeSys F contactor, 3 poles (3NO), 400A/1000V AC-3, for motor applications up to 200kW@400V. It provides a low sealed consumption 110V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55Ā°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Original: $1,244.99
-70%$1,244.99
$373.50Product Information
