HOM24L70S - Square D - Enclosure

Overview

Product Specifications - HOM24L70S - Square D Enclosure

Dimensions

Standards

Product Description - HOM24L70S - Square D Enclosure

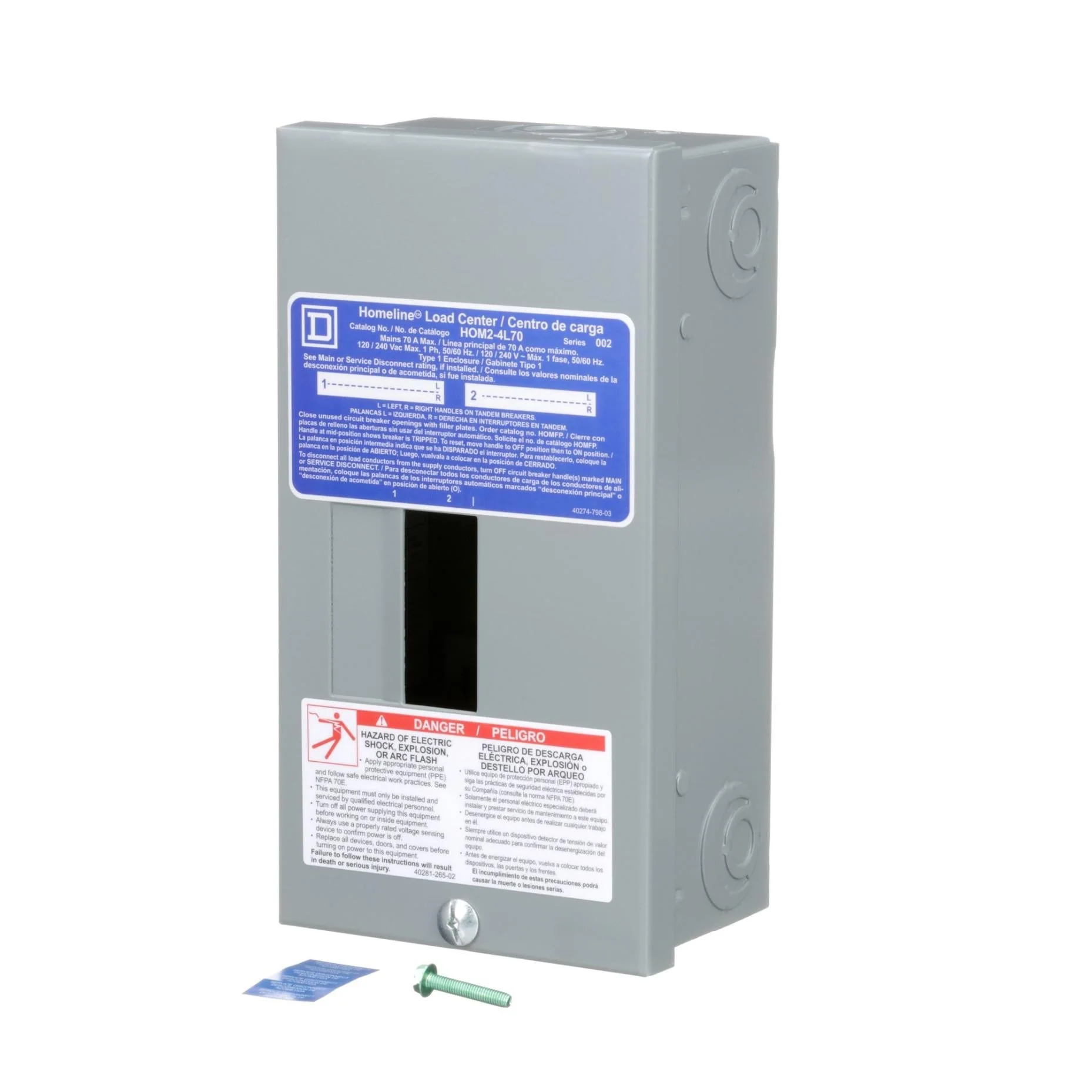

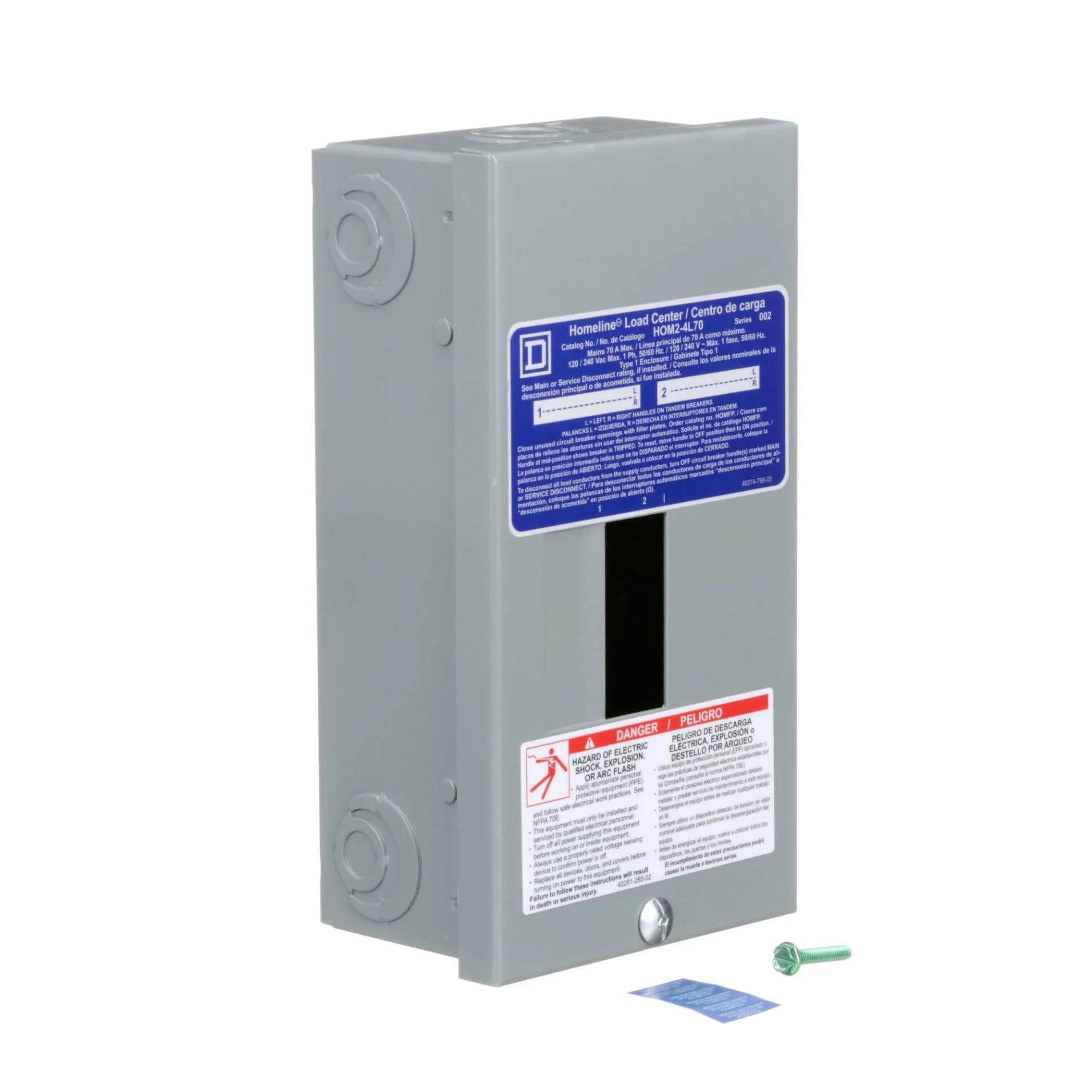

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with fixed main lugs that are rated at 70A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 1 indoor enclosure. Has a surface cover. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 4 AWG copper or 12 AWG to 3 AWG aluminum wire. This Homeline load center has a height of 9.29 inches, a width of 4.80 inches, and depth of 3.18 inches. Homeline load centers are UL Listed.
