8502SAO12V02S - Square D - Contactor

Overview

Product Specifications - 8502SAO12V02S - Square D Contactor

Standards

Product Description - 8502SAO12V02S - Square D Contactor

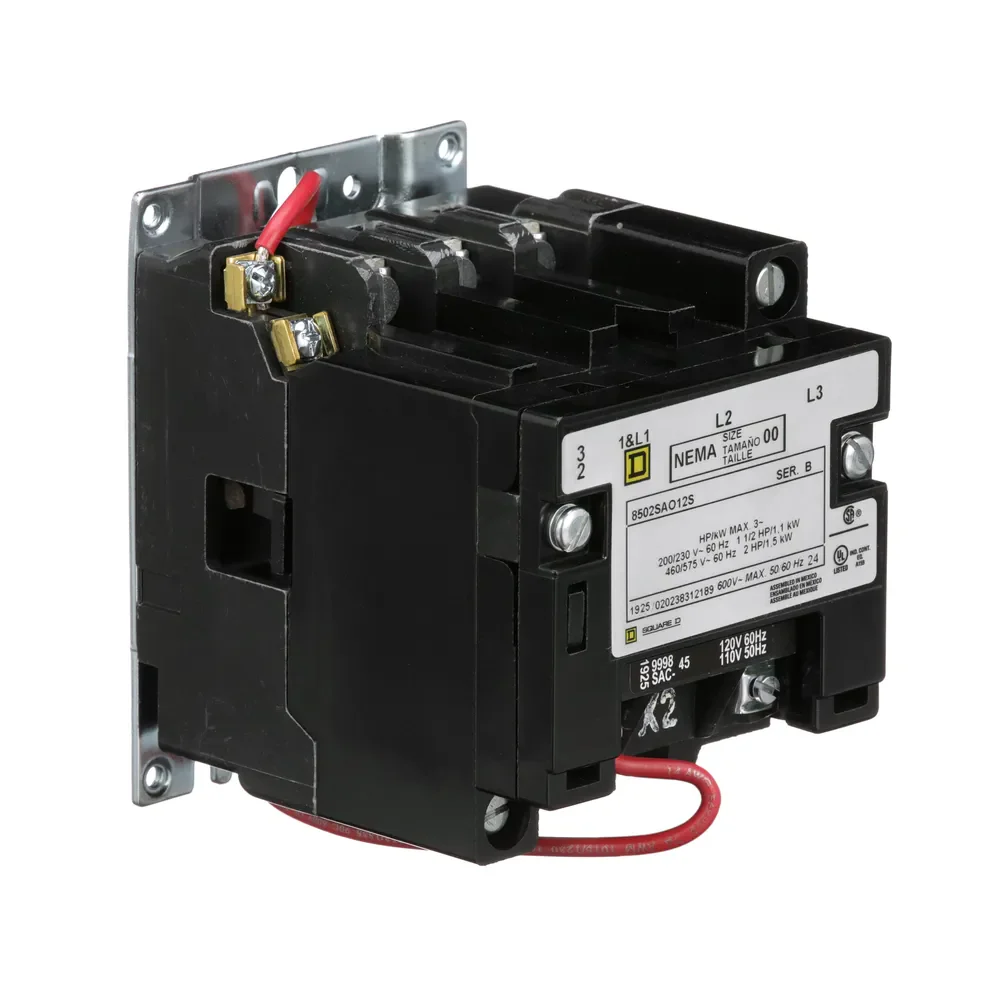

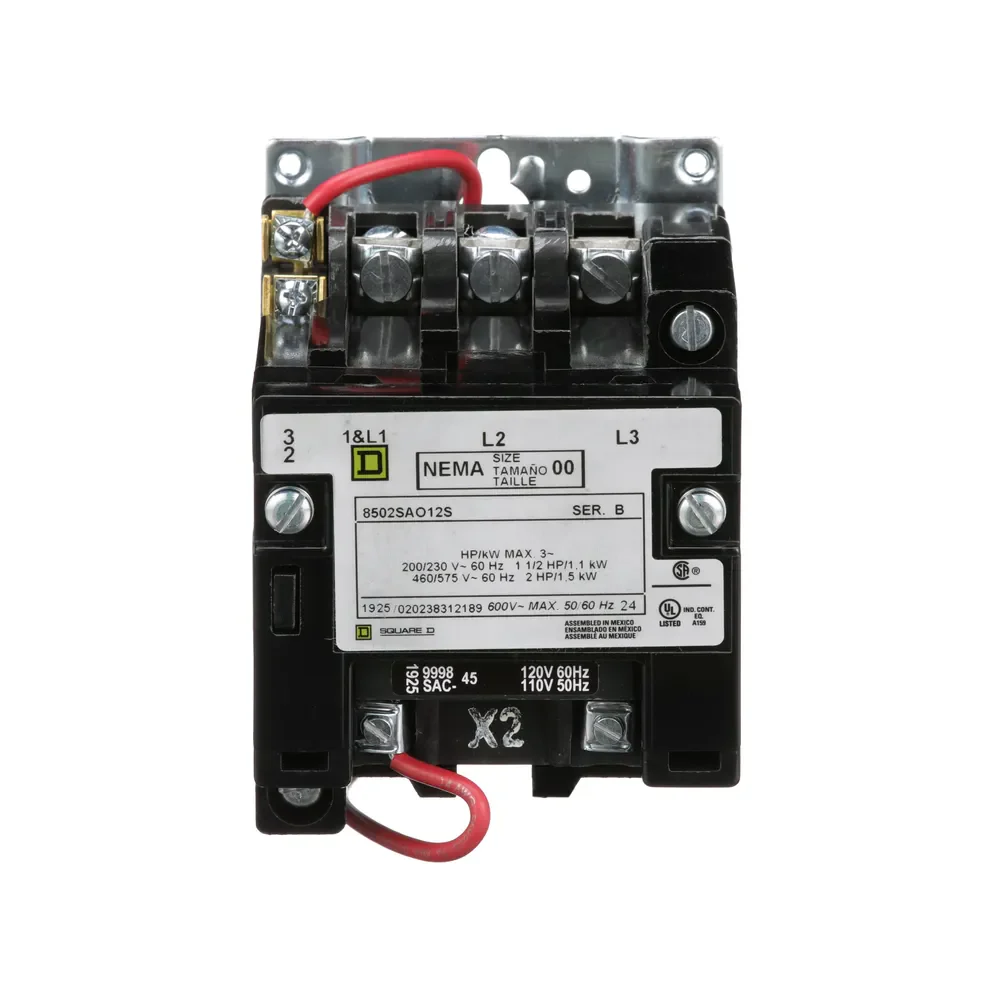

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing contactor has a 9 ampere rating. Three phase NEMA Size 00 contactors have 1.5 HP at 200 and 230 VAC and 2 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified
