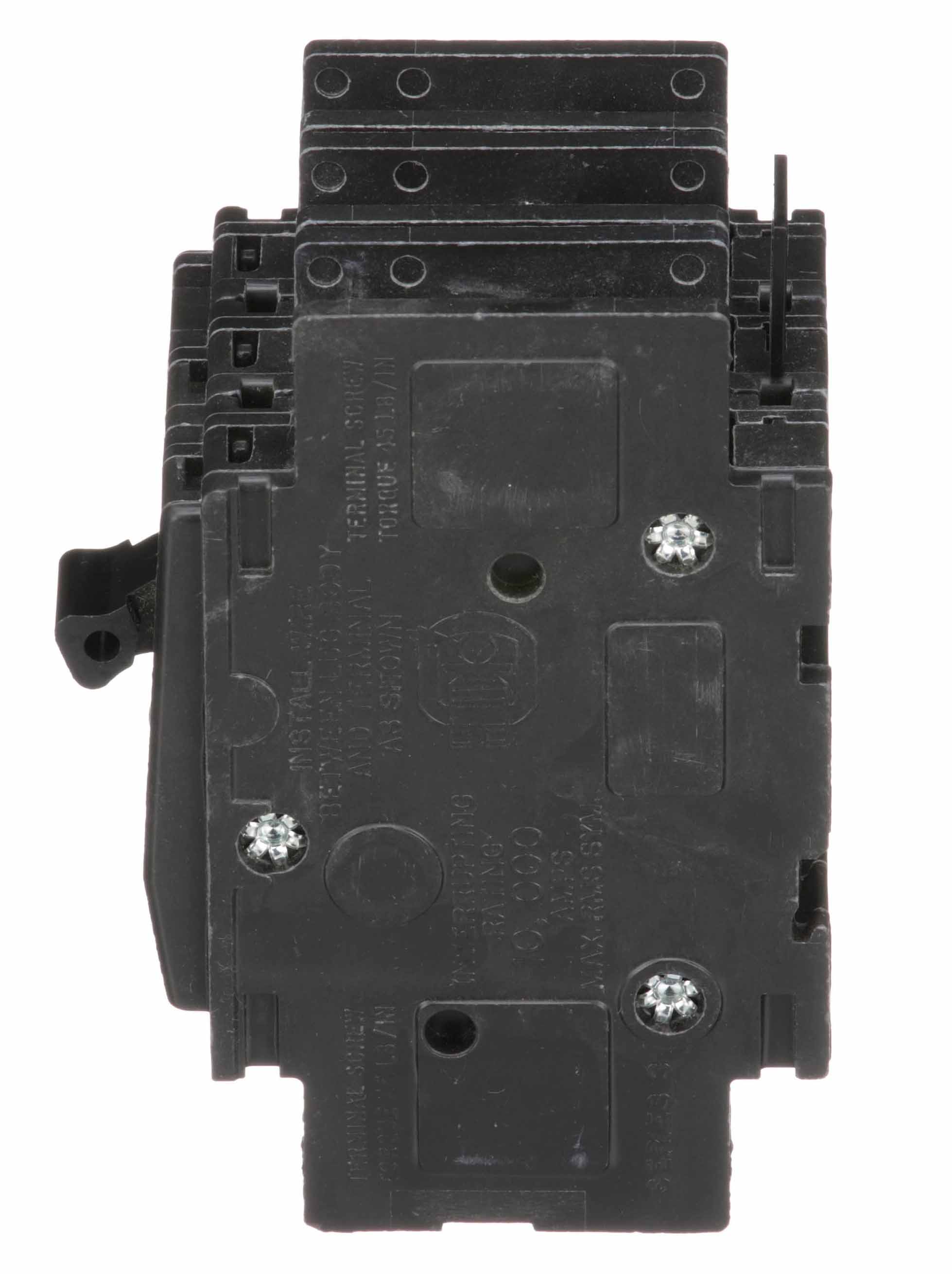

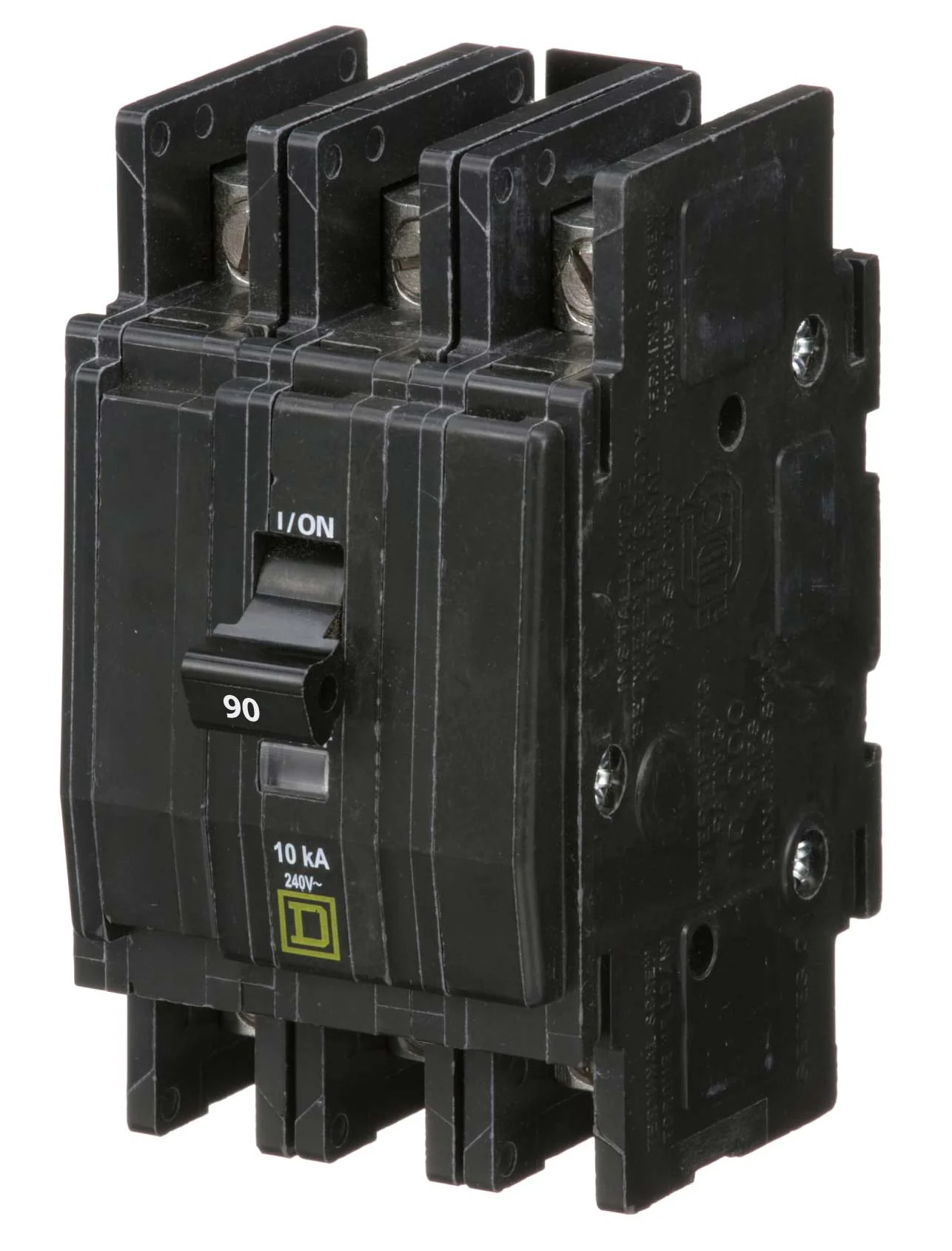

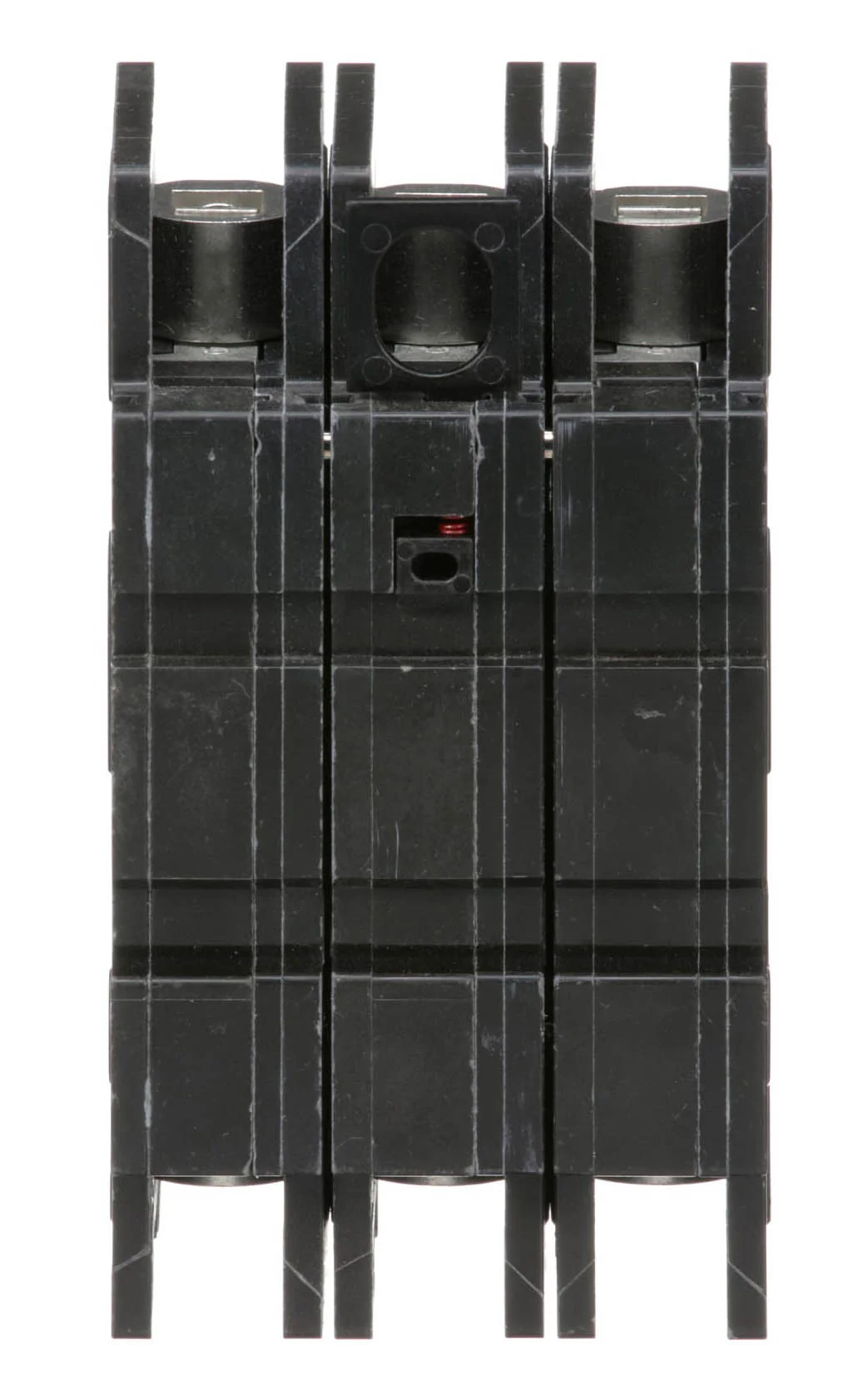

QOU390 - Square D - 90 Amp Circuit Breaker

QOU390 - Square D Miniature Circuit Breaker

Specifications:

• Product or component type: Miniature circuit-breaker
• Range of product: QOU
• Circuit breaker type: Standard
• Line Rated Current: 90 A
• Number of Poles: 3P
• Interrupt Rating: 10 kA at: 120/240 V AC, 10 kA at: 120 V AC, 10 kA at: 240 V AC, 5 kA at: 60 V DC
• Electrical connection: Slotted box lugs, line side, load side
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 60 V DC
• Mounting mode: Unit mount
• AWG gauge: AWG 12...AWG 2/0 (aluminium/copper)
• Height: 4.45 in
• Depth: 2.95 in
• Width: 2.25 in
• Product certifications: CSA, IEC, UL listed
• Authentic Square D Product
• Dimensions (H x W x L): 4.45" x 2.25" x 2.95"
• 3 phase

Alt model: q0u390
