9998LH44 - Square D - Coil
Overview
Product Specifications - 9998LH44 - Square D Coil
-
Part Number:
9998LH44 -
Manufacturer:
-
Category:
Standards
Product Description - 9998LH44 - Square D Coil

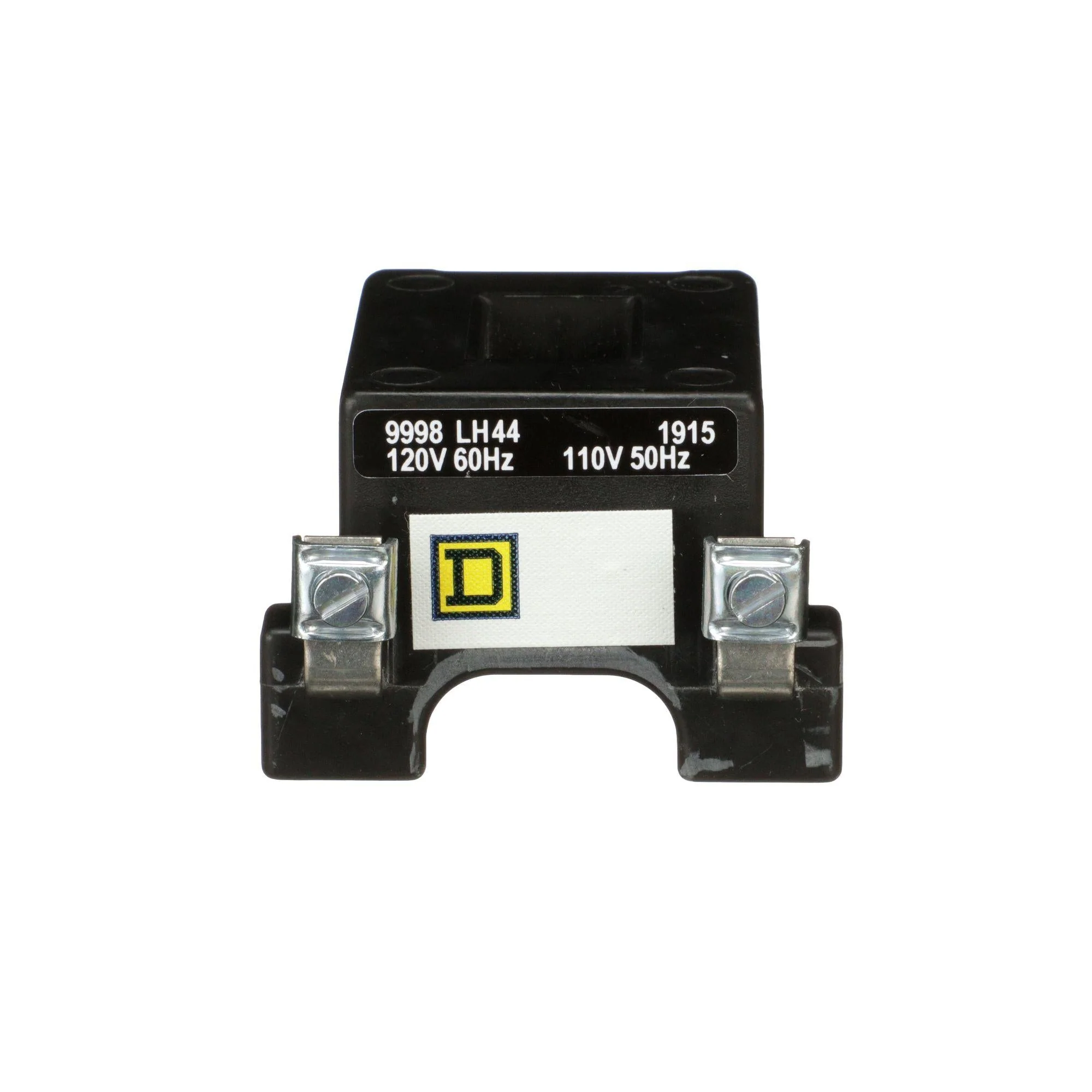

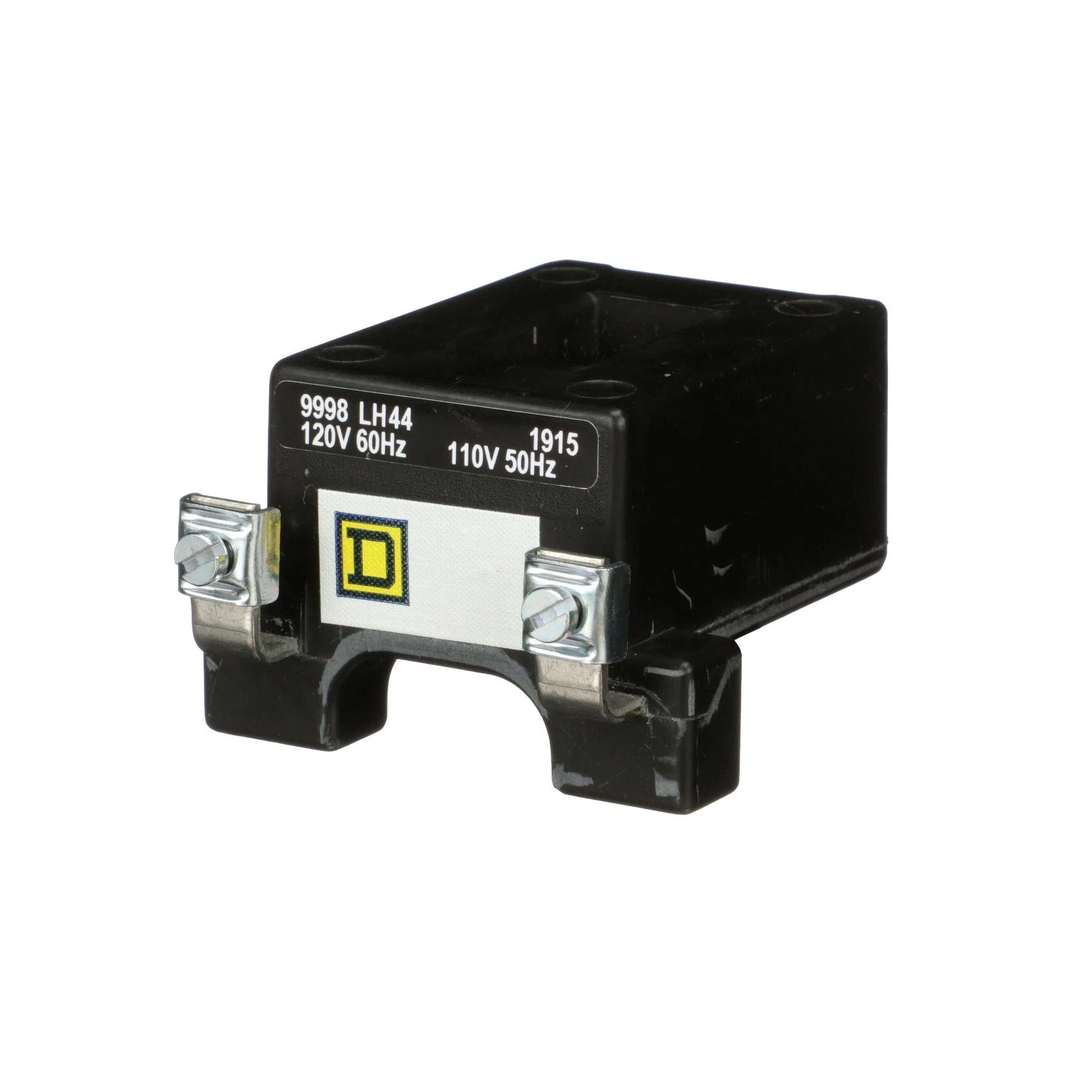

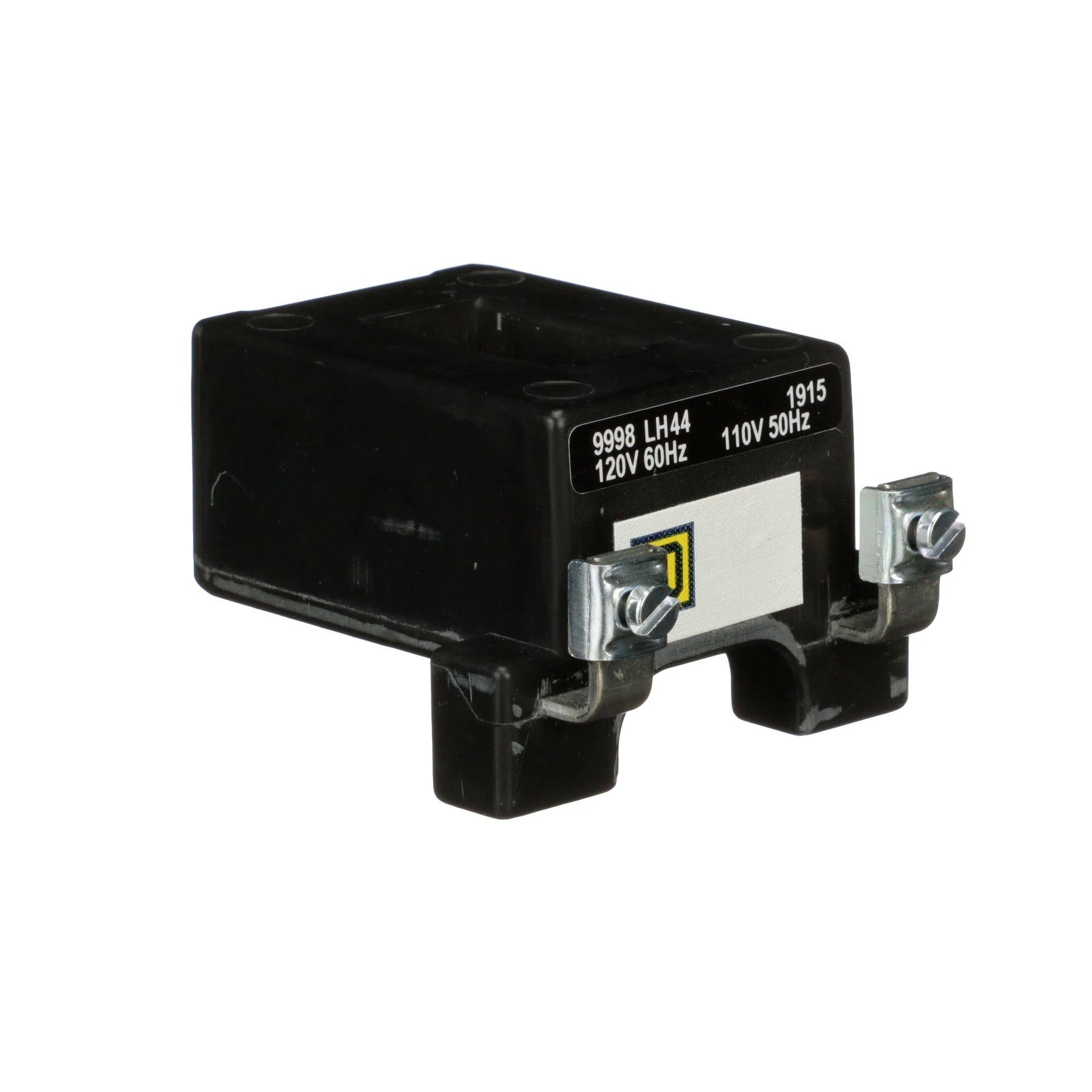

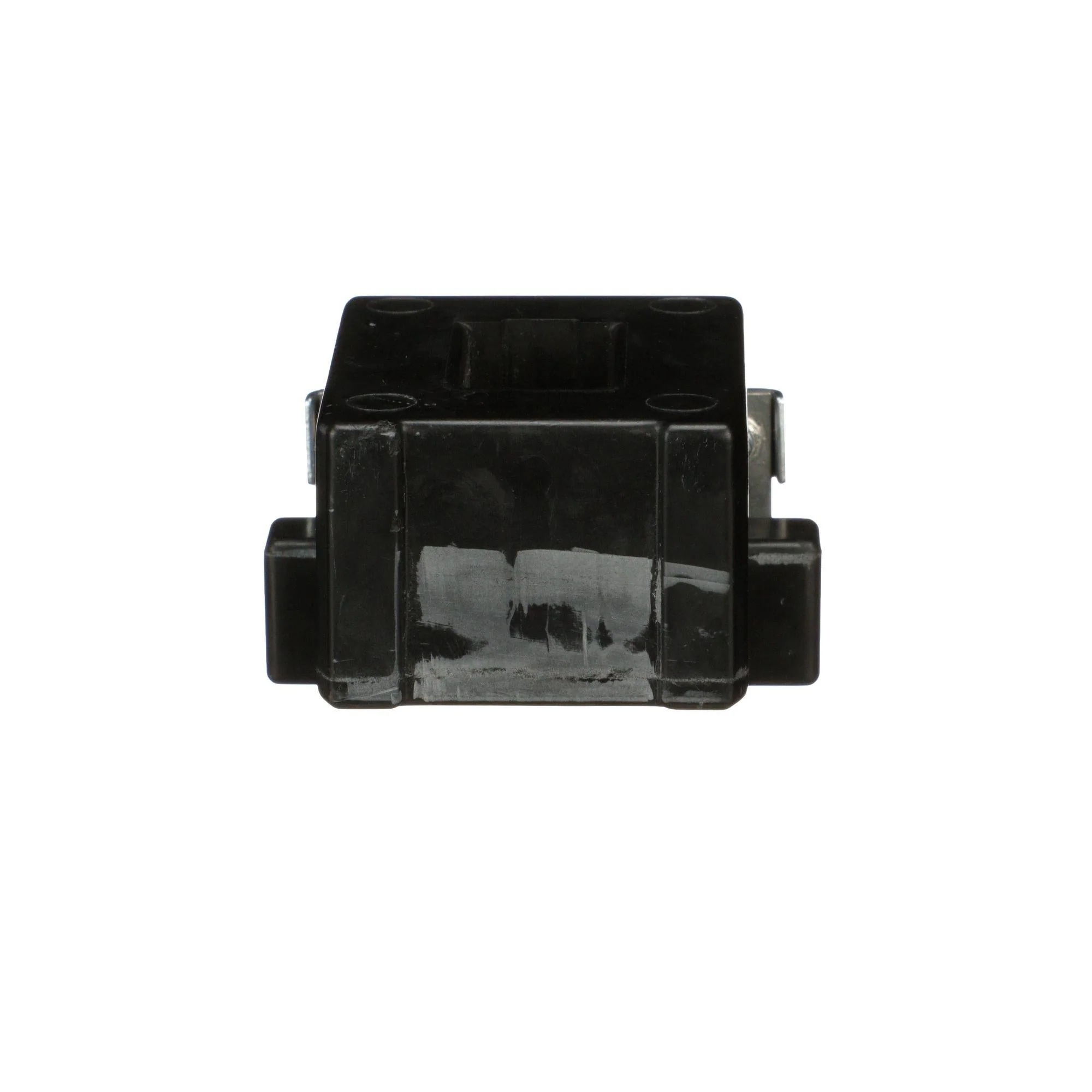

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. By changing out the coil, the lighting contactor can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 8 to 12 poles, and 8930LX, 6 to 12 poles, lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 180 VA. It has an average sealed consumption of 35 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections. Coil has screw clamp connections.
