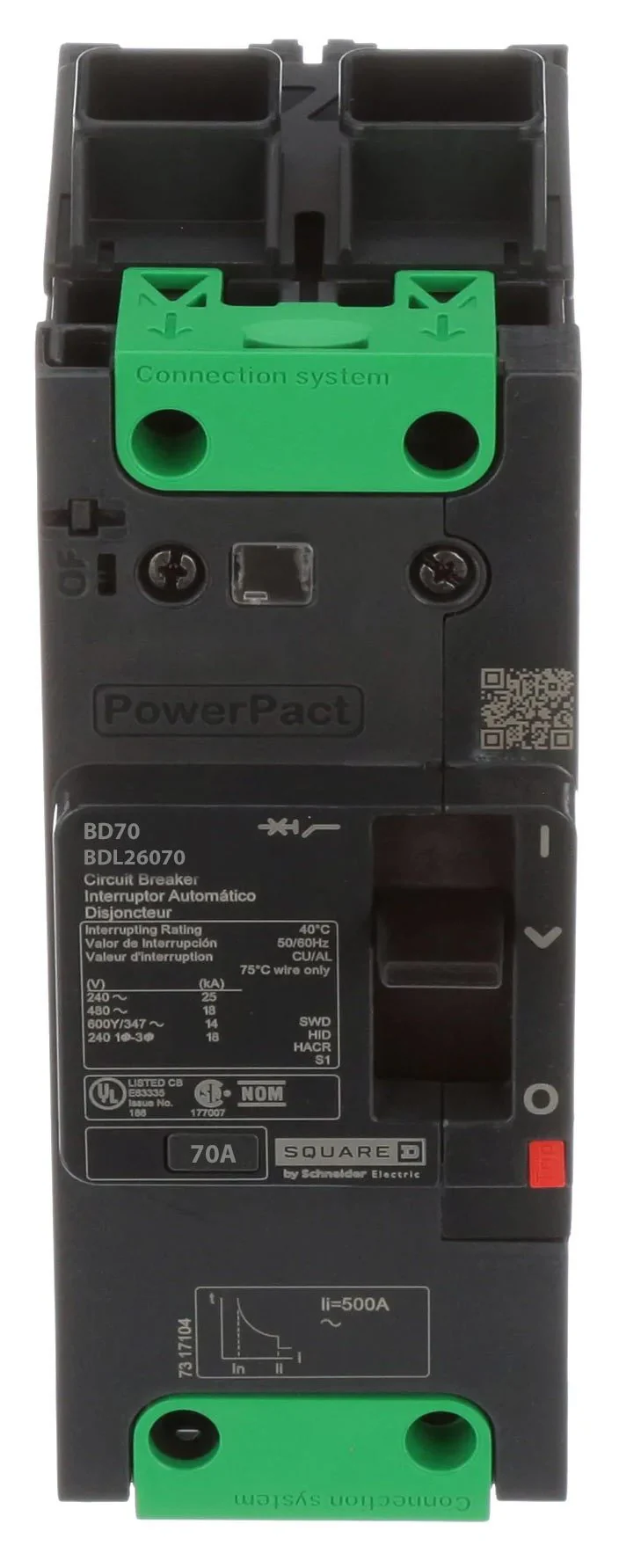

BDL26070 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - BDL26070 - Square D Molded Case Circuit Breakers
-
Part Number:
BDL26070 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
70 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
BDL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
5.39" x 2.13" x 3.15"
-
Weight:
1.70 lbs
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
70 Amp -
Mounting Mode:
Clip-on 35 x 15 mm symmetrical DIN rail)
By screws plate)
-
Breaking Capacity Code
D -
Electrical Connection:
Everlink lug line / Everlink lug load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Standards
Product Description - BDL26070 - Square D Molded Case Circuit Breakers
Square D / Schneider Electric, Powerpact, type BDL, 1PH, 2P, 600Y/347Vac, 70A, 18kA@480V, feed-thru with EverLink connectors, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals.
Documentation
Select Condition
From $94.50
Original: $314.99
-70%BDL26070 - Square D - Molded Case Circuit Breakerā
$314.99
$94.50Product Information
