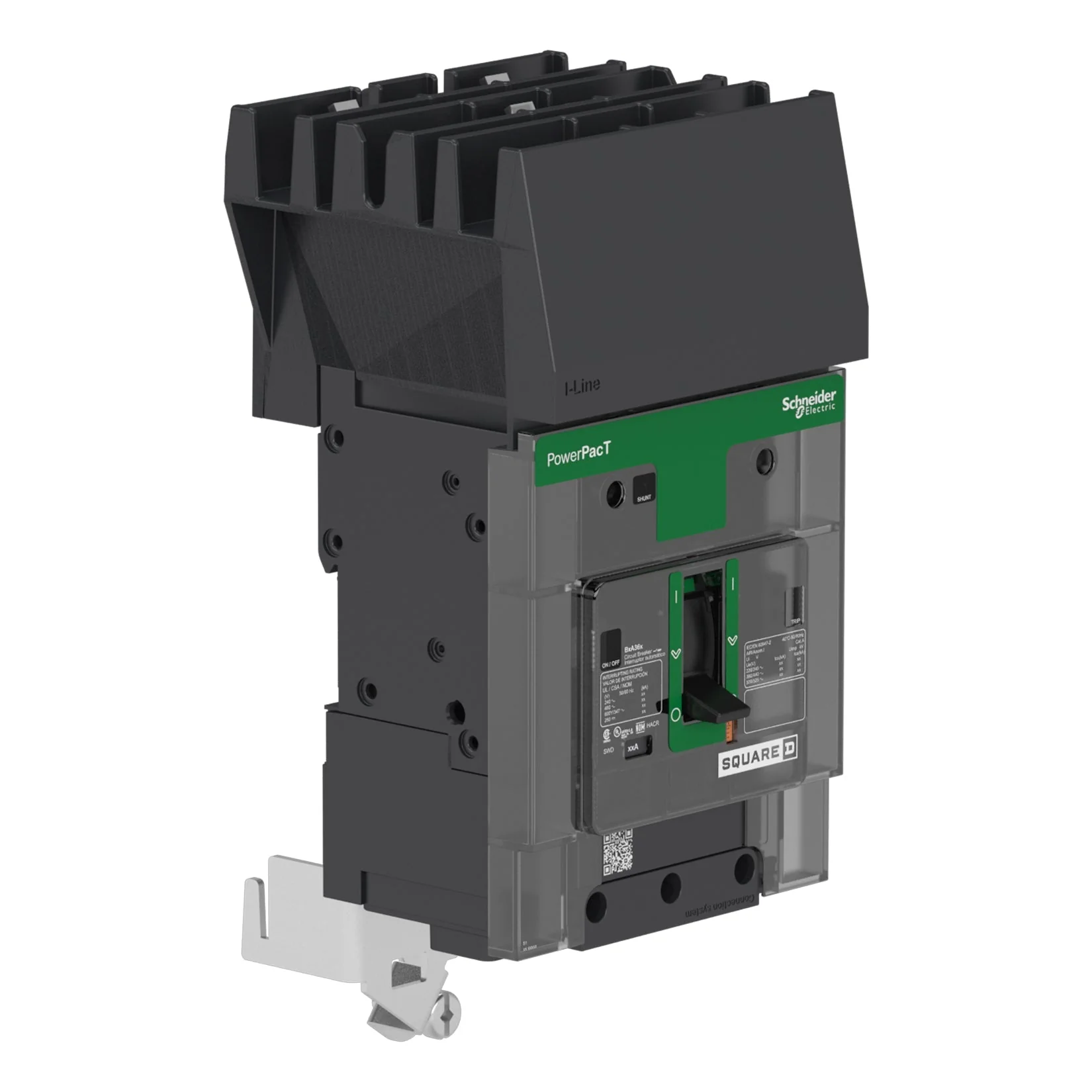

BJA36040 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - BJA36040 - Square D Molded Case Circuit Breakers
-
Part Number:
BJA36040 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
40 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
BJA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
4.69" x 8.11" x 12.80"
-
Weight:
2.90 lbs
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
40 Amp -
Mounting Mode:
I-Line
-
Breaking Capacity Code:
G -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 2/0 aluminium/copper
Standards
Product Description - BJA36040 - Square D Molded Case Circuit Breakers
Schneider Electric,Square D, Powerpact, type BJA, 3PH, 3P, 600Y/347Vac, 40A, 65kA@480V rated, i-line style plug-in with ABC phase connection, thermal magnetic, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, molded case circuit breakers.
Documentation
Select Condition
From $210.00
Original: $699.99
-70%BJA36040 - Square D - Molded Case Circuit Breakerā
$699.99
$210.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - BJA36040 - Square D Molded Case Circuit Breakers
-
Part Number:
BJA36040 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
40 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
BJA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
4.69" x 8.11" x 12.80"
-
Weight:
2.90 lbs
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
40 Amp -
Mounting Mode:
I-Line
-
Breaking Capacity Code:
G -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 2/0 aluminium/copper
Standards
Product Description - BJA36040 - Square D Molded Case Circuit Breakers
Schneider Electric,Square D, Powerpact, type BJA, 3PH, 3P, 600Y/347Vac, 40A, 65kA@480V rated, i-line style plug-in with ABC phase connection, thermal magnetic, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, molded case circuit breakers.
