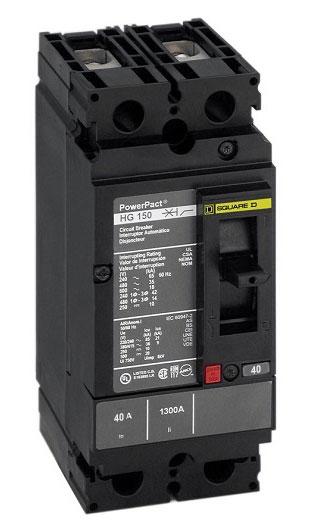

HGL26040 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - HGL26040 - Square D Powerpact Circuit Breaker
-
Part Number:
HGL26040 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
40 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
HGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
6.4" x 2.74" x 4.36"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
40 A -
Mounting Mode:
Unit Mount Lug
-
Breaking Capacity Code
G -
Electrical Connection:
Lugs line / Lugs load -
Magnetic Hold Current:
400 A -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HGL26040 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type HGL, 2P, 1PH, 40A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip.
Documentation
Select Condition
From $270.99
HGL26040 - Square D - Molded Case Circuit Breakerā
$270.99
