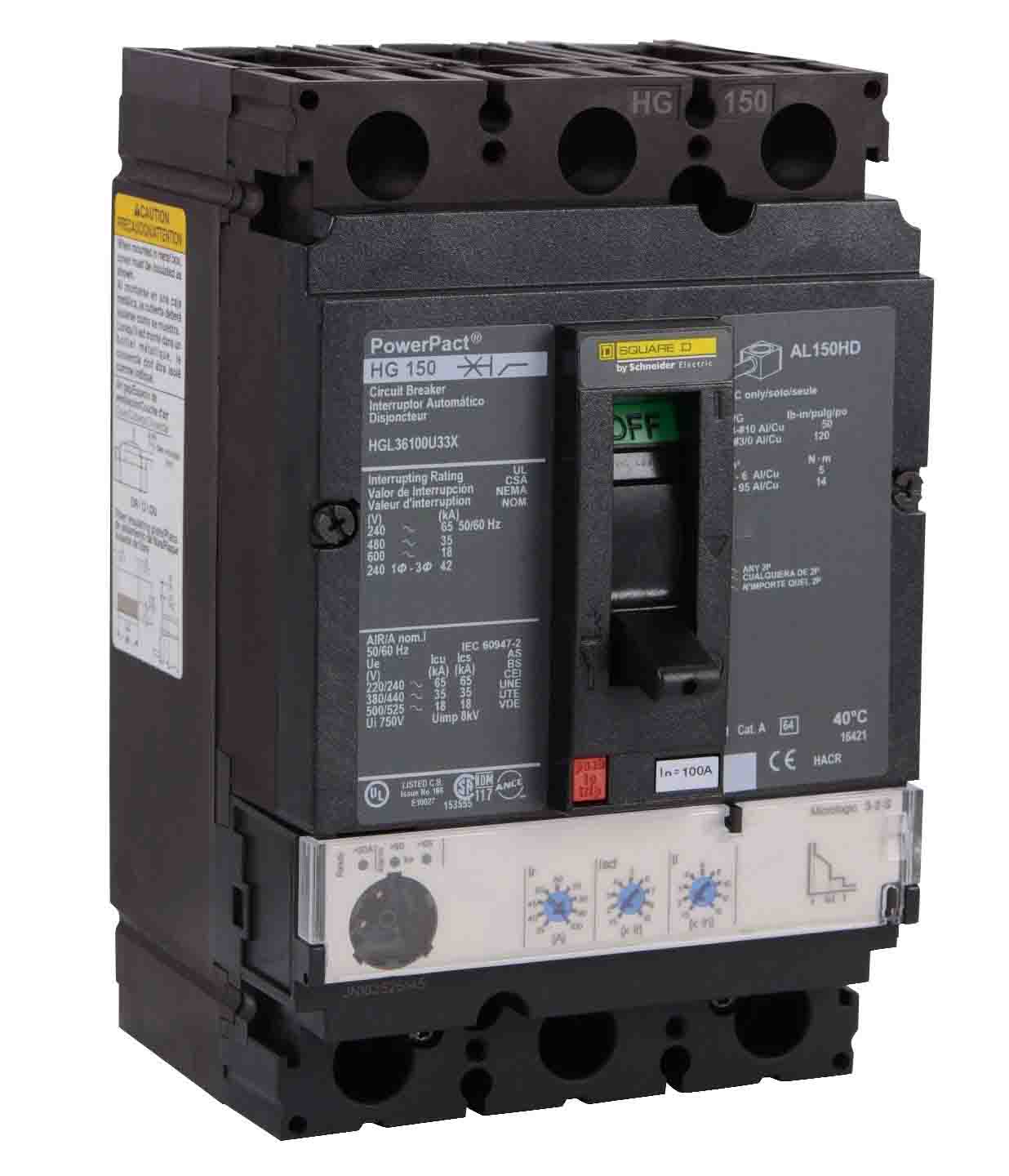

HGL36100U33X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - HGL36100U33X - Square D Molded Case Circuit Breakers
-
Part Number:
HGL36100U33X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HGL -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
6.42" x 4.09" x 3.39"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2 S, LSI -
Line Rated Current:
100 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
G -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HGL36100U33X - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type HGL, 3P, 3PH, 100A, 600V, 18kA@600V, 35kA@480V, 65kA@240V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip with LSI, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers
Documentation
Original: $811.99
-70%$811.99
$243.60Product Information
