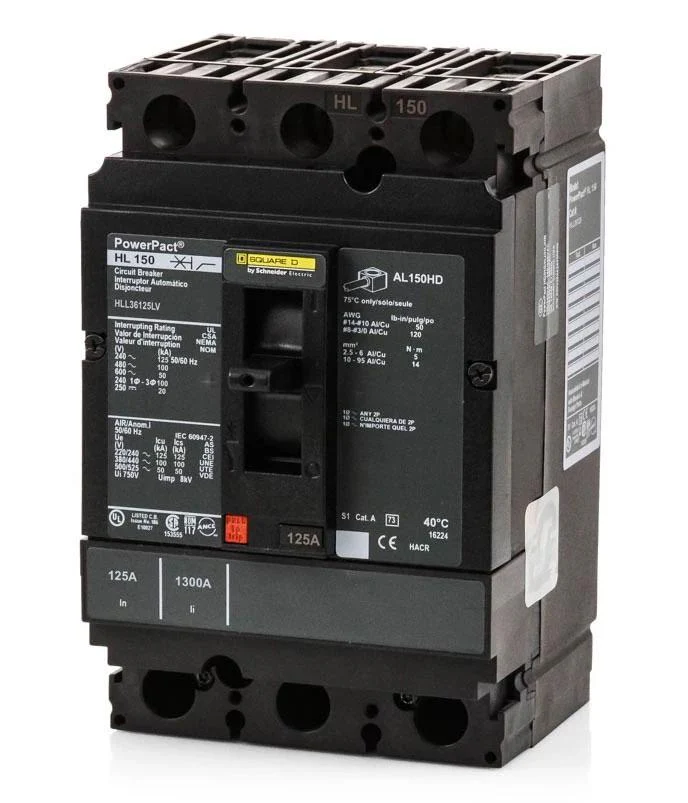

HLL36125LV - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - HLL36125LV - Square D Molded Case Circuit Breakers
-
Part Number:
HLL36125LV -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
125 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HJL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
6.42" x 4.09" x 3.39"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
125 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
L -
Electrical Connection:
Lugs line / Lugs load -
Magnetic Hold Current:
900 Amp -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HLL36125LV - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type HLL, 3P, 3PH, 125A, 600V, 100kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers
Select Condition
From $450.30
Original: $1,500.99
-70%HLL36125LV - Square D - Molded Case Circuit Breakerā
$1,500.99
$450.30Product Information
