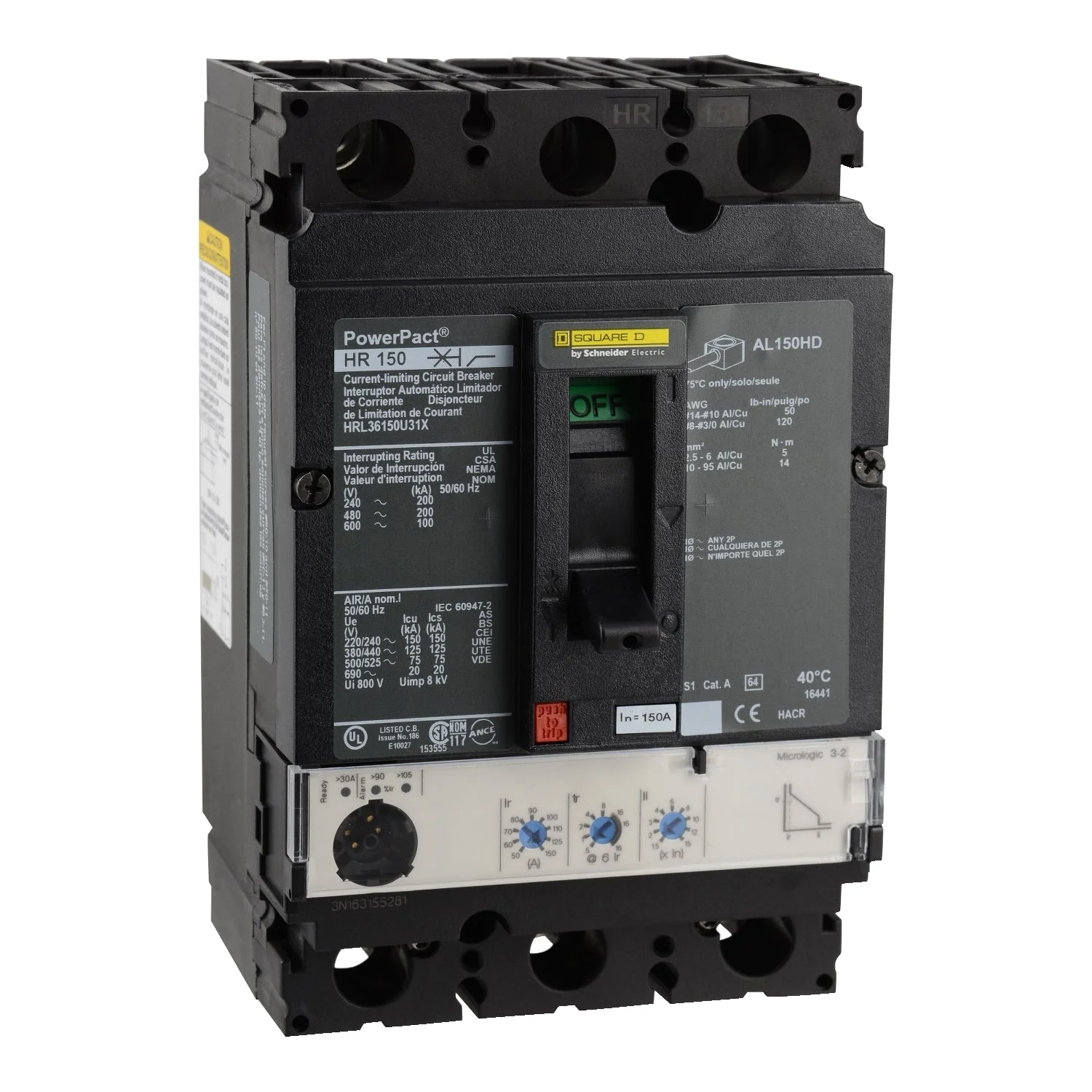

HRL36150U31X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - HRL36150U31X - Square D Powerpact Circuit Breaker
-
Part Number:
HRL36150U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HRL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
200kA@480V
Dimensions
-
Dimensions (HxWxD):
6.42" x 4.09" x 3.39"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2, LI -
Line Rated Current:
150 A -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
R -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HRL36150U31X - Square D Powerpact Circuit Breaker
Square D,Schneider Electric, Powerpact, type HRL, 3P, 3PH, 150A, 600V, 200kA@480V, current limiting, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals.
Documentation
Â
Original: $1,499.99
-70%$1,499.99
$450.00Product Information
