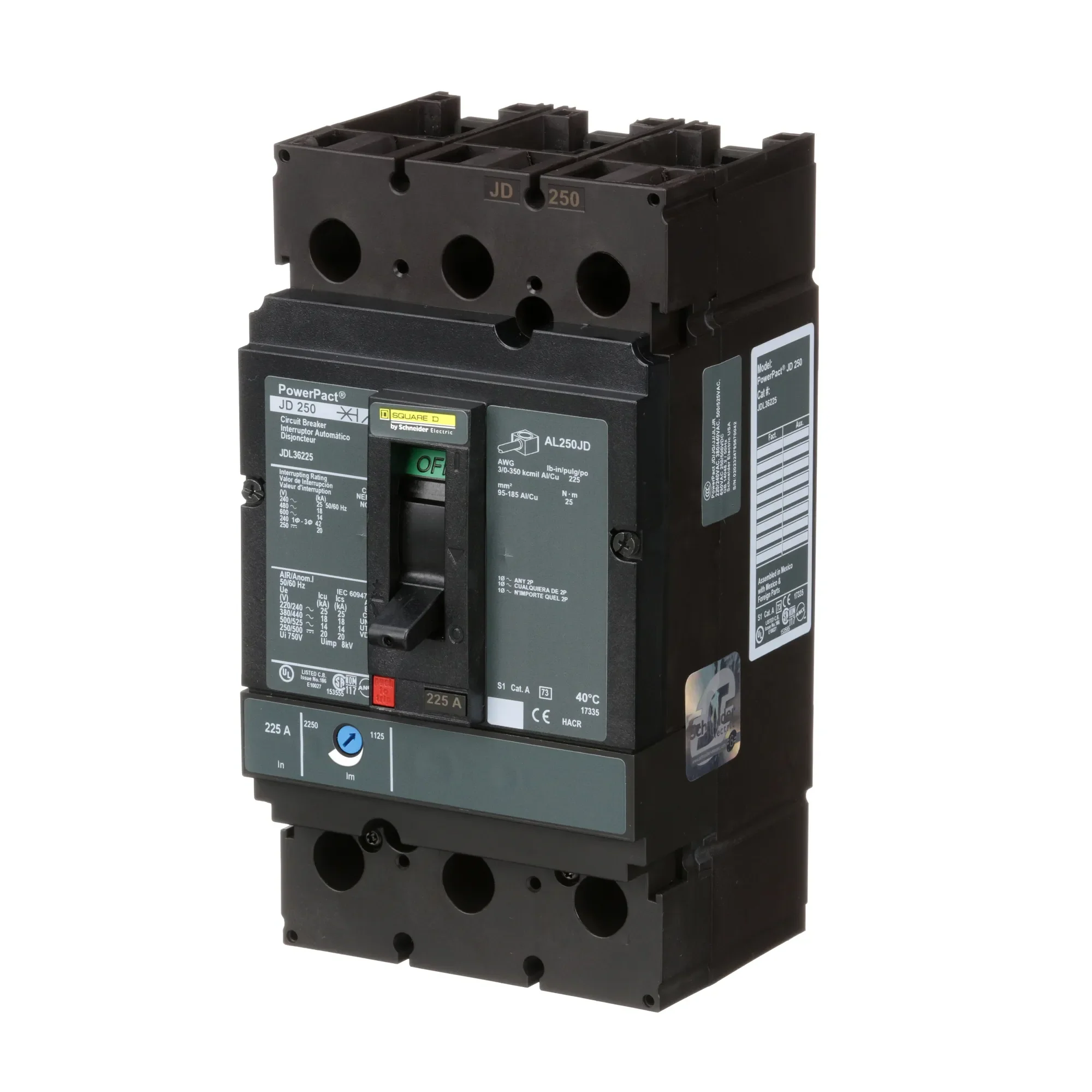

JDL36225 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - JDL36225 - Square D Powerpact Circuit Breaker
-
Part Number:
JDL36225 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
225 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
JDA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V

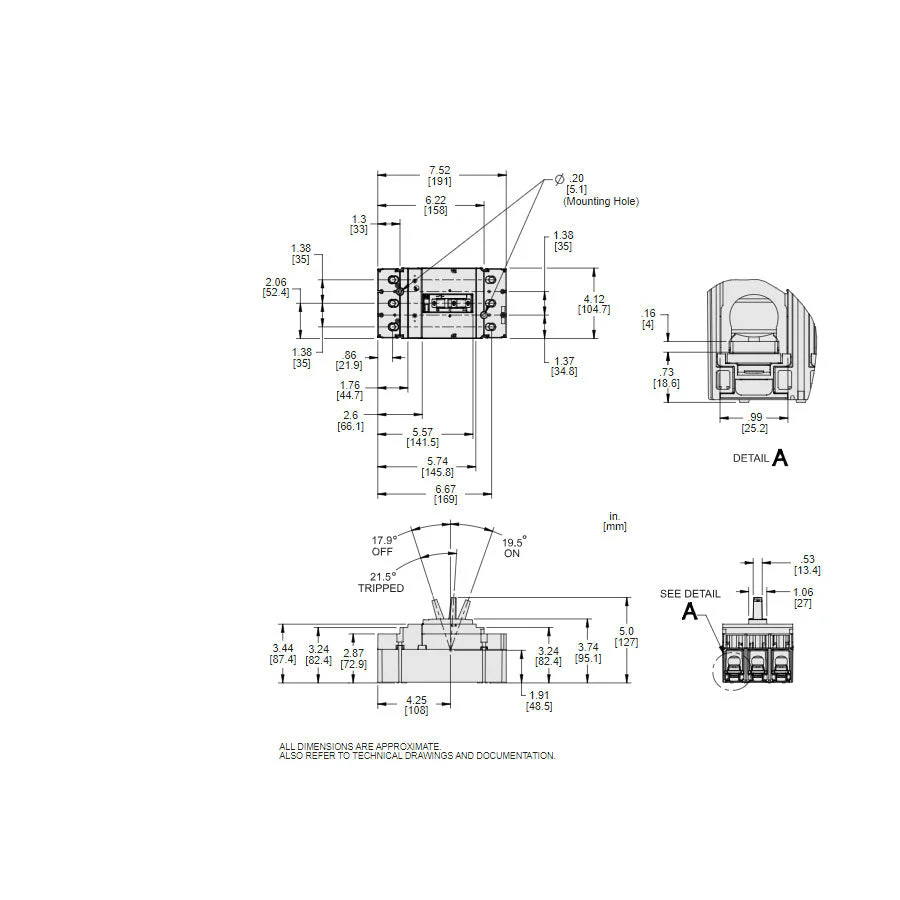

Dimensions
-
Dimensions (HxWxD):
7.52" x 4.12" x 5"
-
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Overload protection / Short-circuit protection -
Frame Type:
J-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
225 Amp -
Mounting Mode:
Unit Mount Lug
-
Breaking Capacity Code:
D -
Electrical Connection:
Lug line / Lugs load -
Magnetic Hold Current:
1125 Amp -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 4...AWG 4/0 aluminium/copper terminal
Product Description - JDL36225 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type JDL, 3P, 3PH, 225A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
