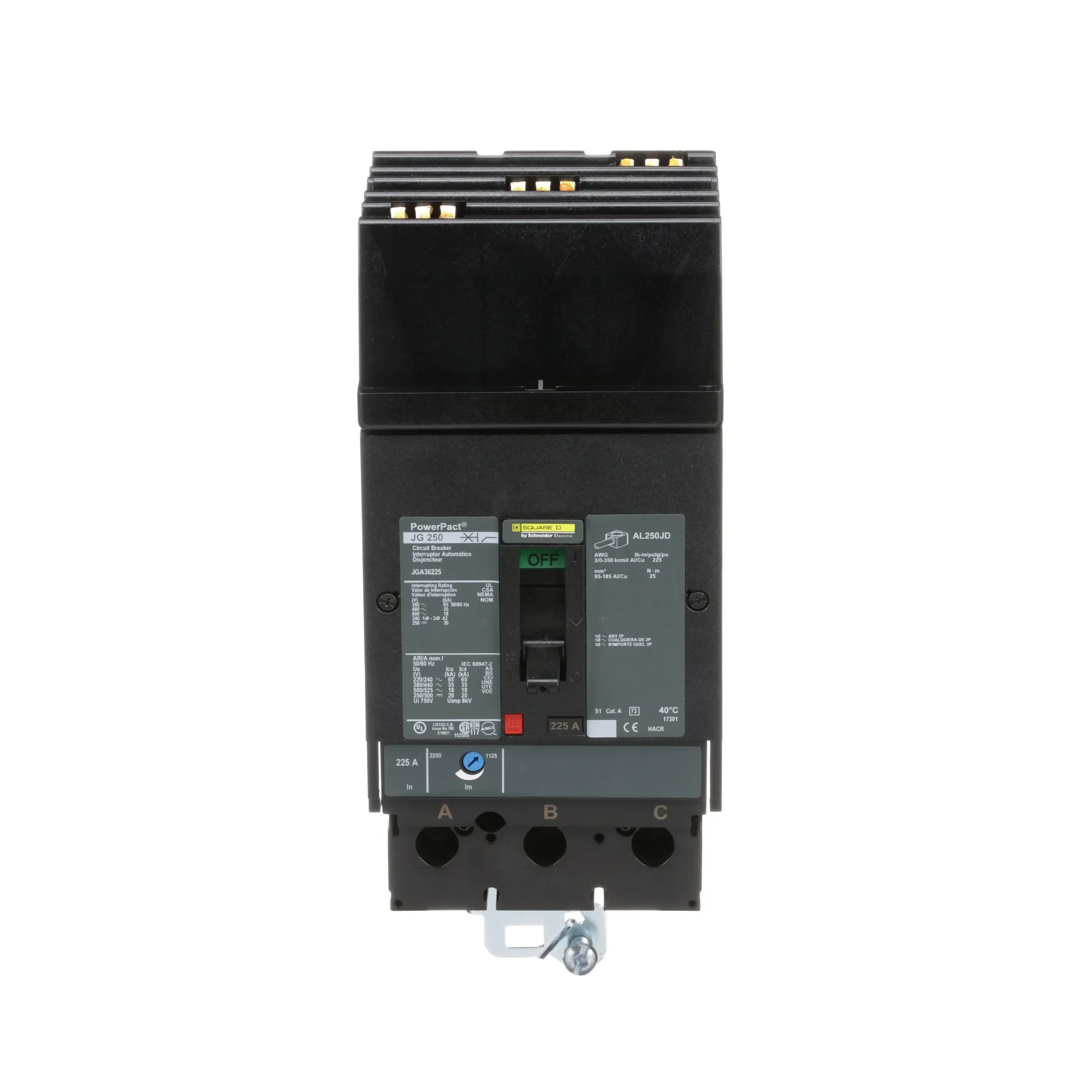

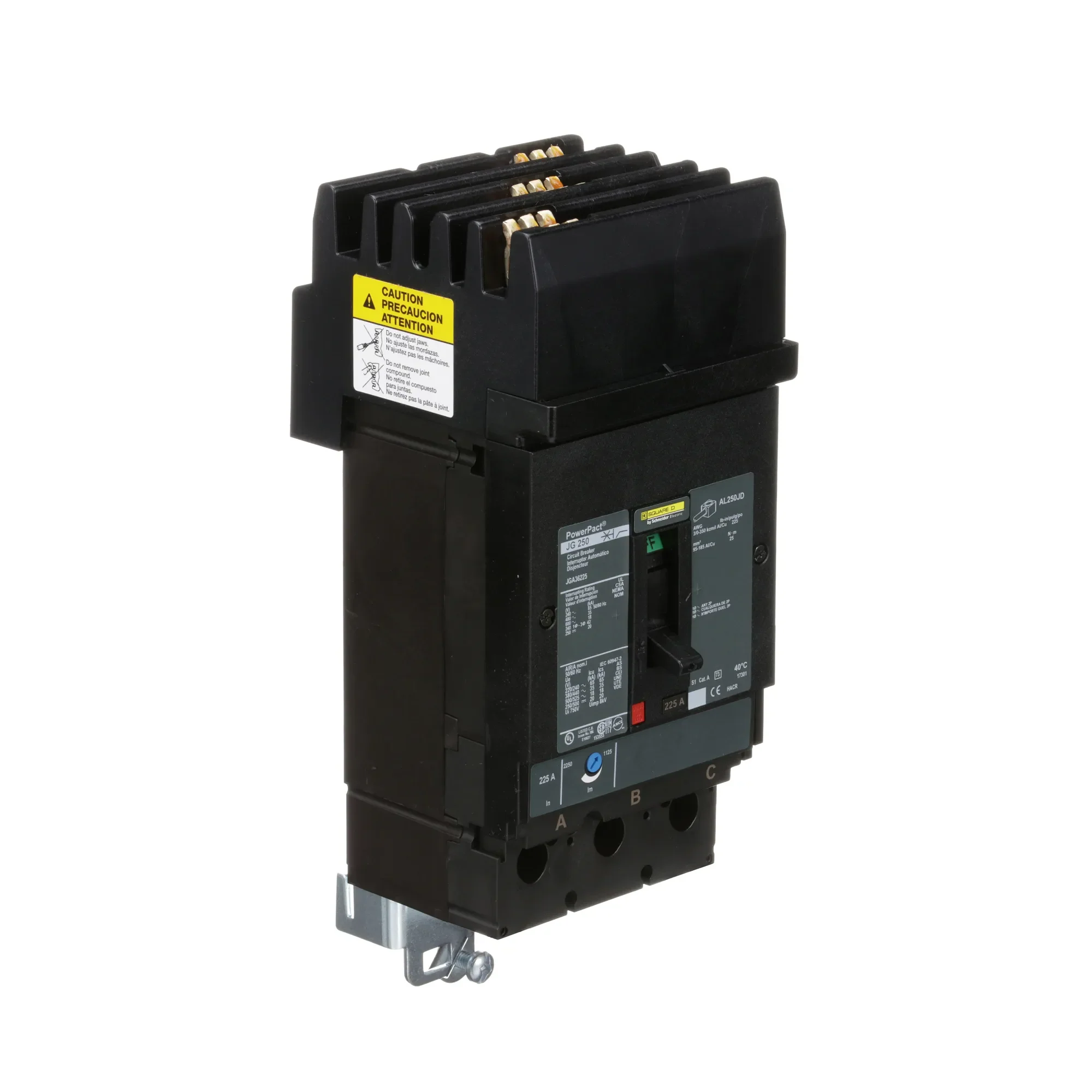

JGA36225 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - JGA36225 - Square D Powerpact Circuit Breaker
-
Part Number:
JGA36225 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
225 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
JGA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V

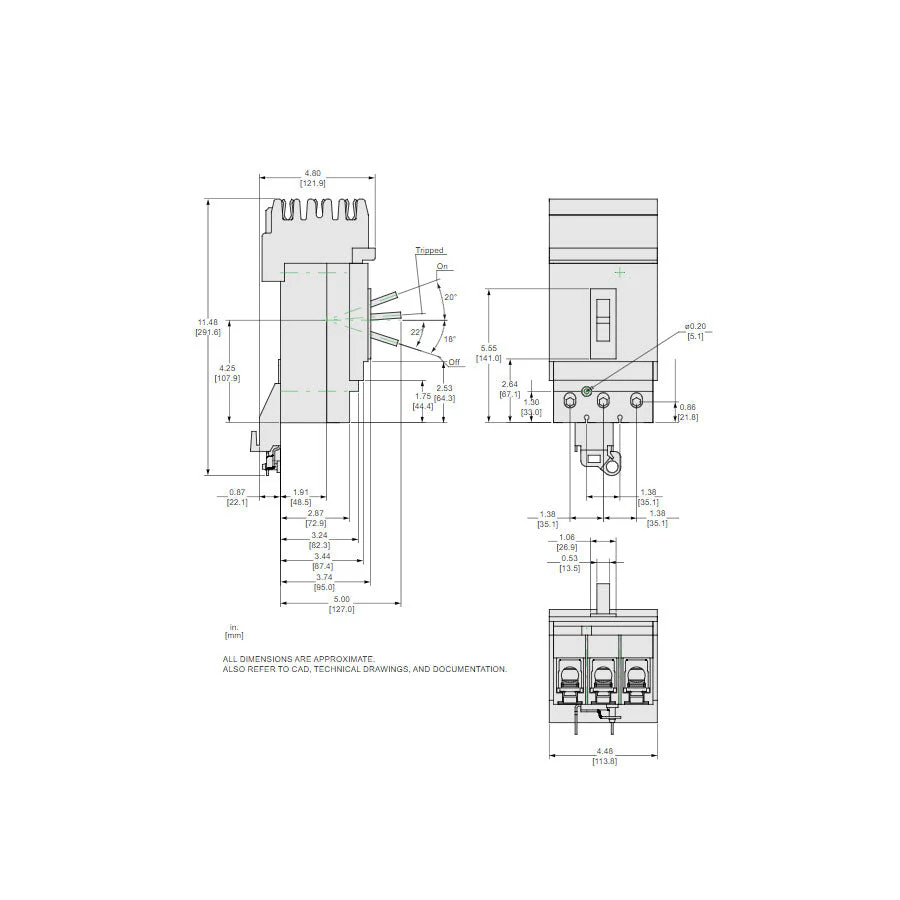

Dimensions
-
Dimensions (HxWxD):
11.48" x 4.48" x 5.87" -
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Overload protection / Short-circuit protection -
Frame Type:
J-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
225 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
G -
Electrical Connection:
I-Line connection line / Lugs load -
Magnetic Hold Current:
1125 Amp -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 4...AWG 4/0 aluminium/copper terminal
Product Description - JGA36225 - Square D Powerpact Circuit Breaker
Square D, Powerpact, type JGA, 3P, ABC phase connection, 3PH, 225A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.
